Auxiliary Fuel Fired Pre-Heater (Heater Components, External Components) (Changsu (China), Fuel Heater W/Pk Heat Less Remote, Fuel Fired Heater With Park Heat, With Fuel Fired Heater) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Auxiliary Fuel Fired Pre-Heater (Heater Components, External Components) (Changsu (China), Fuel...

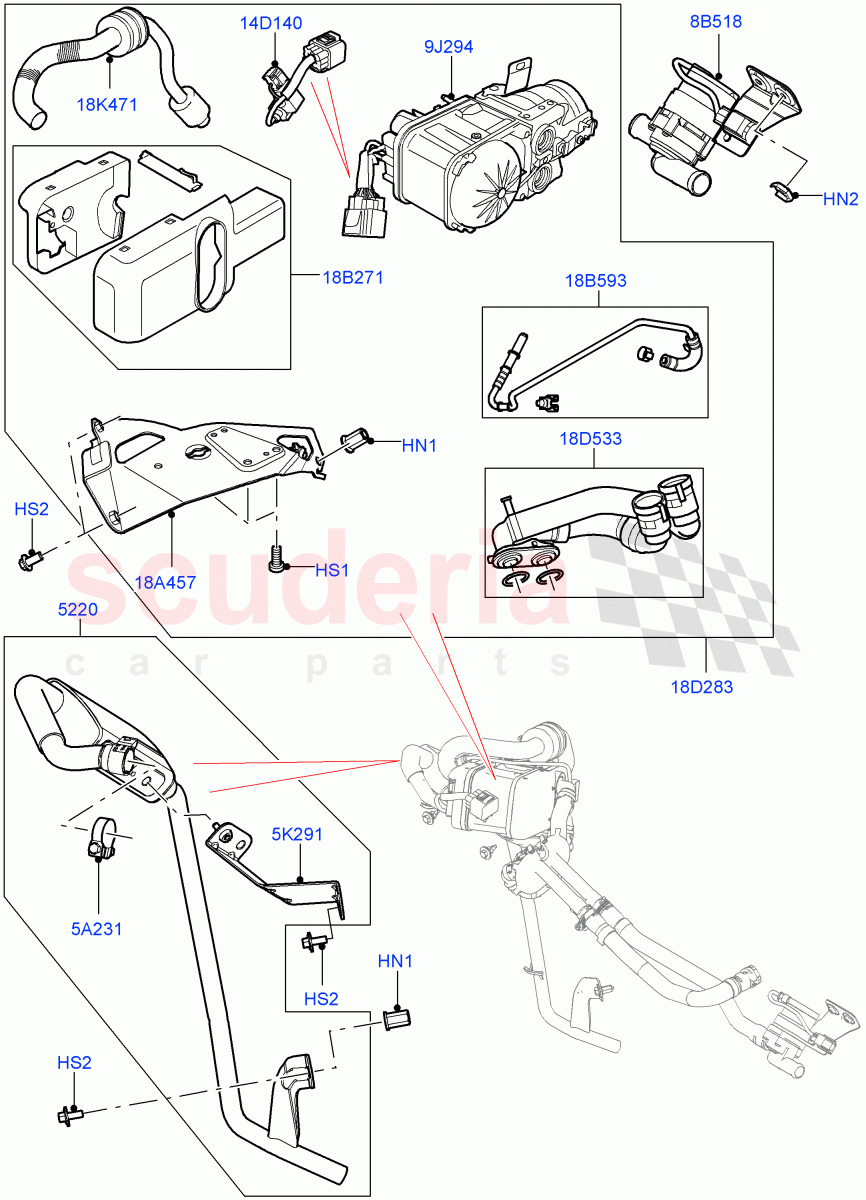

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000060	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003643	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000095	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order
	KYP500400	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053248	PIPE - EXHAUST	Enquire	To Order
	LR095417	PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009017	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004548	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064320	PUMP - WATER - FFH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076654	HEATER - AUXILIARY	Enquire	To Order
	LR076030	HEATER - AUXILIARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005065	WIRING - HEATER	Enquire	To Order
	LR076029	WIRING - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004907	BRACKET - HEATER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010315	COVER - HEATER BLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004142	TUBE - AUXILIARY HEATER SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066109	HEATER - AUXILIARY	Enquire	To Order
	LR070471	HEATER - AUXILIARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031659	TUBE - AUXILIARY HEATER SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007460	TUBE - AIR INLET	Enquire	To Order
	LR076032	TUBE - AIR INLET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR000060	NUT - SPECIAL	LR000060 NUT - SPECIAL M6, Plastic Nut / From: FG000001	-	2	Enquire
HN2	LR003643	NUT - SPECIAL	LR003643 NUT - SPECIAL M5 / From: FG000001	-	2	Enquire
HS1	LR000095	SCREW AND WASHER	LR000095 SCREW AND WASHER M6 X 16 HEX / From: FG000001	-	4	Enquire
HS2	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: FG000001 / To: GG316395	-	4	Enquire
HS2	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: GG316396	-	4	Enquire
5A231	LR009017	CLAMP - EXHAUST	LR009017 CLAMP - EXHAUST With Fuel Fired Heater / For Rear Muffler / From: FG000001	-	1	Enquire
5K291	LR004548	BRACKET - EXHAUST PIPE MOUNTING	LR004548 BRACKET - EXHAUST PIPE MOUNTING From: FG000001	-	1	Enquire
8B518	LR064320	PUMP - WATER - FFH	LR064320 PUMP - WATER - FFH From: FG000001	-	1	Enquire
9J294	LR076654	HEATER - AUXILIARY	LR076654 HEATER - AUXILIARY From: FG000001 / To: GG347883	-	1	Enquire
9J294	LR076030	HEATER - AUXILIARY	LR076030 HEATER - AUXILIARY From: HG347884	-	1	Enquire
14D140	LR005065	WIRING - HEATER	LR005065 WIRING - HEATER From: FG000001 / To: GG347883	-	1	Enquire
14D140	LR076029	WIRING - HEATER	LR076029 WIRING - HEATER From: HG347884	-	1	Enquire
18A457	LR004907	BRACKET - HEATER MOUNTING	LR004907 BRACKET - HEATER MOUNTING From: FG000001	-	1	Enquire
18B271	LR010315	COVER - HEATER BLOWER	LR010315 COVER - HEATER BLOWER From: FG000001	-	1	Enquire
18B593	LR004142	TUBE - AUXILIARY HEATER SUPPLY	LR004142 TUBE - AUXILIARY HEATER SUPPLY Supply / From: FG000001	-	1	Enquire
18D283	LR066109	HEATER - AUXILIARY	LR066109 HEATER - AUXILIARY Complete Assembly / From: FG000001 / To: GG347883	-	1	Enquire
18D283	LR070471	HEATER - AUXILIARY	LR070471 HEATER - AUXILIARY Complete Assembly / From: HG347884	-	1	Enquire
18D533	LR031659	TUBE - AUXILIARY HEATER SUPPLY	LR031659 TUBE - AUXILIARY HEATER SUPPLY Set Of 2 Pieces / From: FG000001	-	1	Enquire
18K471	LR007460	TUBE - AIR INLET	LR007460 TUBE - AIR INLET From: FG000001 / To: GG347883	-	1	Enquire
18K471	LR076032	TUBE - AIR INLET	LR076032 TUBE - AIR INLET From: HG347884	-	1	Enquire
5220	LR053248	PIPE - EXHAUST	LR053248 PIPE - EXHAUST From: FG000001 / To: HG379387	-	1	Enquire
5220	LR095417	PIPE - EXHAUST	LR095417 PIPE - EXHAUST From: HG379388	-	1	Enquire
