Front Brake Pipes (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Front Brake Pipes (Itatiaia (Brazil)) ((V) FROMGT000001)

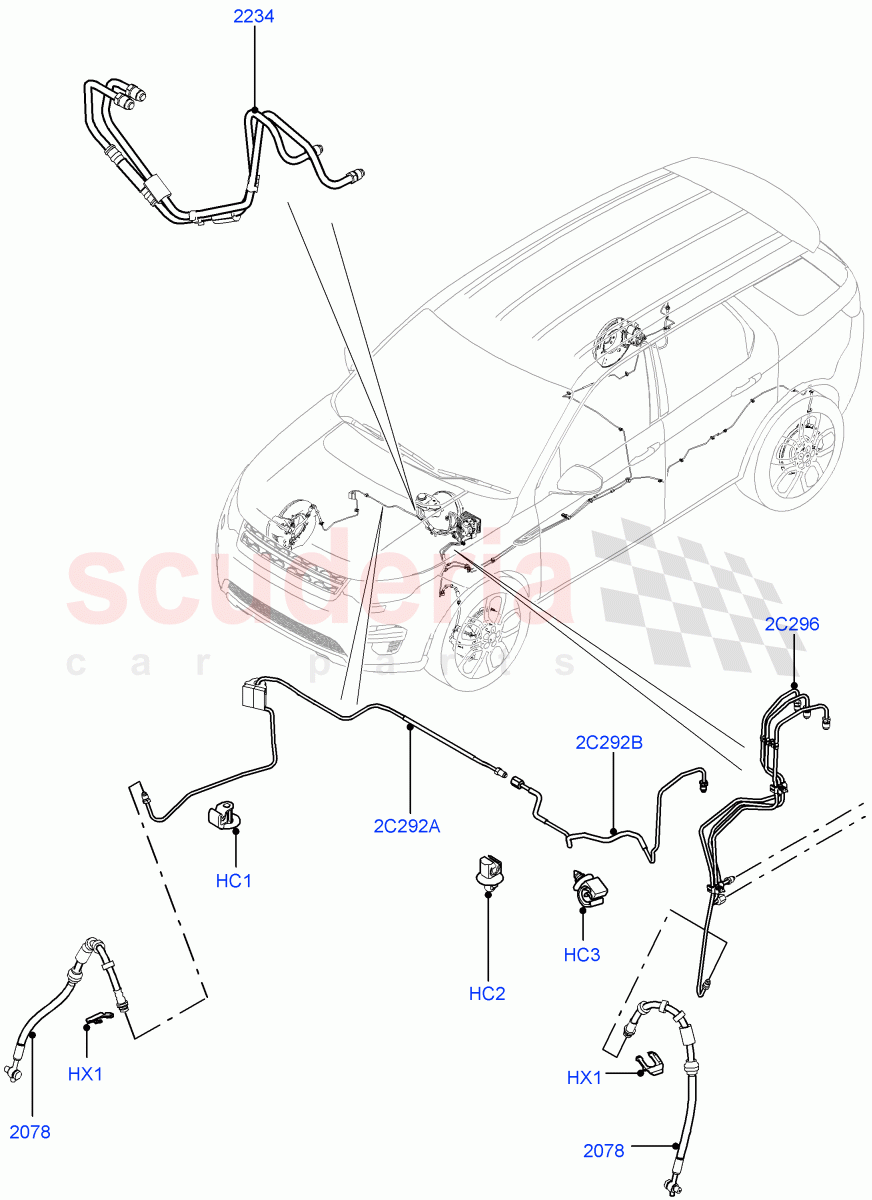

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000084	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC100530	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000062	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075356	HOSE - BRAKE	Enquire	To Order
	LR075355	HOSE - BRAKE	Enquire	To Order
	LR095287	HOSE - BRAKE	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061454	TUBE - BRAKE - NYLON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072027	KIT - BRAKE TUBES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058018	TUBE - BRAKE	Enquire	To Order
	LR092358	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074632	TUBE - BRAKE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR000084	CLIP	LR000084 CLIP 4.5-4.8 X M5, Single / From: GT000001	-	2	Enquire
HC2	LR000061	CLIP	LR000061 CLIP 4.8 X 8 X 4, Single / From: GT000001	-	2	Enquire
HC3	SYC100530	CLIP	SYC100530 CLIP Single / From: GT000001	-	1	Enquire
HX1	LR000062	RING - RETAINING	LR000062 RING - RETAINING 13 X 1 / From: GT000001	-	2	Enquire
2C292A	LR058018	TUBE - BRAKE	LR058018 TUBE - BRAKE RH, ABS Modulator To Caliper Hose / From: GT000001 / To: HT999999	-	1	Enquire
2C292A	LR092358	TUBE - BRAKE	LR092358 TUBE - BRAKE RH, ABS Modulator To Caliper Hose / From: JT000001	-	1	Enquire
2C292B	LR074632	TUBE - BRAKE	LR074632 TUBE - BRAKE ABS Modulator To Caliper Hose, Modulator To RH Front / From: GT000001	-	1	Enquire
2C296	LR072027	KIT - BRAKE TUBES	LR072027 KIT - BRAKE TUBES Modulator To LH Front, Modulator To Rear Brake Pipe / From: GT000001	-	1	Enquire
2078	LR075356	HOSE - BRAKE	LR075356 HOSE - BRAKE RH, Flexible, To Caliper / From: GT000001 / To: HT999999	-	1	Enquire
2078	LR075355	HOSE - BRAKE	LR075355 HOSE - BRAKE LH, Flexible, To Caliper / From: GT000001 / To: HT999999	-	1	Enquire
2078	LR095287	HOSE - BRAKE	LR095287 HOSE - BRAKE Disc Brake Size Frt 17/RR 17 / RH, Flexible, To Caliper / From: JT000001 / To: KT999999	-	1	Enquire
2078	LR095289	HOSE - BRAKE	LR095289 HOSE - BRAKE Front Disc And Caliper Size 17 / LH, Flexible, To Caliper / From: JT000001 / To: KT999999	-	1	Enquire
2078	LR095288	HOSE - BRAKE	LR095288 HOSE - BRAKE Disc And Caliper Size-Frt 18/RR 16 / RH, Flexible, To Caliper / From: JT000001 / To: KT999999	-	1	Enquire
2078	LR095286	HOSE - BRAKE	LR095286 HOSE - BRAKE Disc And Caliper Size-Frt 18/RR 16 / LH, Flexible, To Caliper / From: JT000001 / To: KT999999	-	1	Enquire
2078	LR133935	HOSE - BRAKE	LR133935 HOSE - BRAKE Front Disc And Caliper Size 17 / LH, Flexible, To Caliper / From: LT000001	-	1	Enquire
2078	LR133936	HOSE - BRAKE	LR133936 HOSE - BRAKE Disc And Caliper Size-Frt 18/RR 17 / LH, Flexible, To Caliper / From: LT000001	-	1	Enquire
2078	LR133934	HOSE - BRAKE	LR133934 HOSE - BRAKE Front Disc And Caliper Size 17 / RH, Flexible, To Caliper / From: LT000001	-	1	Enquire
2078	LR133933	HOSE - BRAKE	LR133933 HOSE - BRAKE Disc And Caliper Size-Frt 18/RR 16 / RH, Flexible, To Caliper / From: LT000001	-	1	Enquire
2078	LR083651	HOSE - BRAKE	LR083651 HOSE - BRAKE Front Disc And Caliper Size 18 / RH, Flexible, To Caliper / From: HT000001 / To: HT999999	-	1	Enquire
2078	LR135813	HOSE - BRAKE	LR135813 HOSE - BRAKE Front Disc And Caliper Size 17 / RH, Flexible, To Caliper / From: HT000001	-	1	Enquire
2234	LR061454	TUBE - BRAKE - NYLON	LR061454 TUBE - BRAKE - NYLON Modulator To Brake Master Cylinder / From: GT000001	-	1	Enquire
