Drive Shaft - Front Axle Drive (Changsu (China)) ((V) Fromfg000001, (V) Tokg446856)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Drive Shaft - Front Axle Drive (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001192 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR024762 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
BYH500040 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FT110356 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR003773 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR025067 JOINT AND STUB SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR061603 SHAFT - FRONT AXLE Enquire To Order
LR071947 SHAFT - FRONT AXLE Enquire To Order
Photo Part No Description Price (each) Stock
LR061554 SHAFT - FRONT AXLE Enquire To Order
LR061604 SHAFT - FRONT AXLE Enquire To Order
Photo Part No Description Price (each) Stock
LR105649 BRACKET - DRIVESHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR027900 RETAINER - BEARING Enquire To Order
Photo Part No Description Price (each) Stock
LR003158 RETAINER - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
IYX500050 KIT - GREASE AND ORING Enquire To Order
Photo Part No Description Price (each) Stock
LR025065 KIT - DRIVESHAFT BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR025066 KIT - DRIVESHAFT BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR097852 BRACKET - TRANSFER CASE Enquire To Order
Photo Part No Description Price (each) Stock
LR048530 BRACKET - TRANSFER CASE Enquire To Order
View All

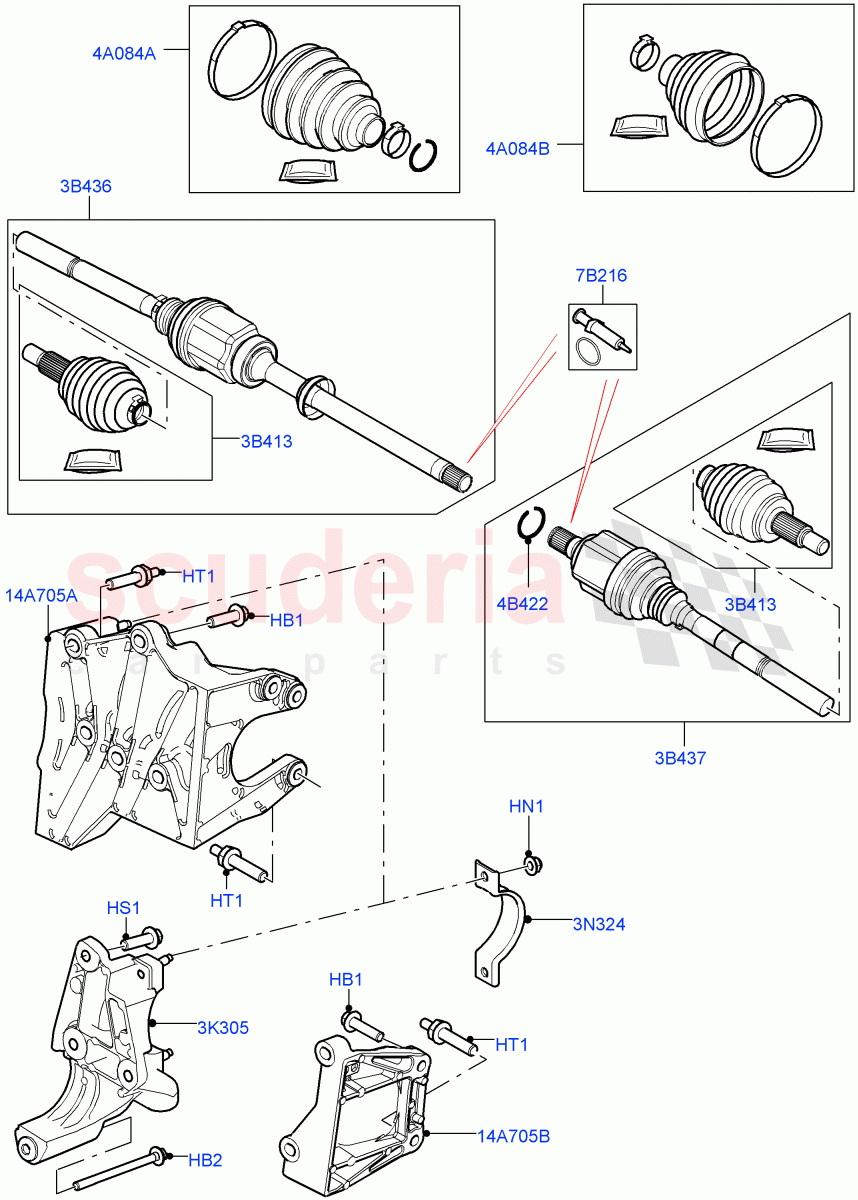

Drive Shaft - Front Axle Drive (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001192
BOLT
Hexagonal Head, M10 x 40MM, PTU Bracket To Engine, PTU Bracket To PTU / From: FG000001 		- 3 Enquire
HB2 LR024762
BOLT
Hexagonal Head, M8 X 109 / From: FG000001 		- 1 Enquire
HN1 BYH500040
NUT AND WASHER - HEX.
M8 / From: HG368292 		- 2 Enquire
HS1 FT110356
SCREW
Hexagonal Head, M10 x 35MM / From: FG000001 		- 3 Enquire
HT1 LR003773
STUD
M10 x 40MM, M8 X 16MM / From: FG000001 		- 1 Enquire
3B413 LR025067
JOINT AND STUB SHAFT
RH/LH / From: FG000001 		- 2 Enquire
3B436 LR061603
SHAFT - FRONT AXLE
RH / From: FG000001 / To: HG379387 		- 1 Enquire
3B436 LR071947
SHAFT - FRONT AXLE
RH / From: HG379388 		- 1 Enquire
3B437 LR061554
SHAFT - FRONT AXLE
LH / From: FG000001 / To: HG379387 		- 1 Enquire
3B437 LR061604
SHAFT - FRONT AXLE
2.0L I4 Mid DOHC AJ200 Petrol / LH / From: HG379388 		- 1 Enquire
3K305 LR105649
BRACKET - DRIVESHAFT
Driveshaft / From: FG000001 		- 1 Enquire
3N324 LR027900
RETAINER - BEARING
From: FG000001 		- 1 Enquire
4A084A LR025065
KIT - DRIVESHAFT BOOT
Outer / From: FG000001 		- 2 Enquire
4A084B LR025066
KIT - DRIVESHAFT BOOT
Inner / From: FG000001 		- 2 Enquire
4B422 LR003158
RETAINER - SPECIAL
From: FG000001 		- 2 Enquire
7B216 IYX500050
KIT - GREASE AND ORING
Connecting Sleeve Grease - 'O' Ring Not Required / From: FG000001 		- 1 Enquire
14A705A LR097852
BRACKET - TRANSFER CASE
2.0L I4 Mid AJ200 Petrol E100 / Driveshaft And Power Transfer Unit / From: HG379387 		- 1 Enquire
14A705B LR048530
BRACKET - TRANSFER CASE
Power Transfer Unit / From: FG000001 		- 1 Enquire
