Auto Trans Assy & Speedometer Drive (2.0L 16V Tivct T/C 240Ps Petrol, 9 Speed Auto Awd, Changsu...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Auto Trans Assy & Speedometer Drive (2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Changsu...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR024946 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB110096 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR024708 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR072666 AUTOMATIC TRANSMISSION Enquire To Order
LR074189 AUTOMATIC TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
LR072105 TUBE - BREATHER Enquire To Order
View All

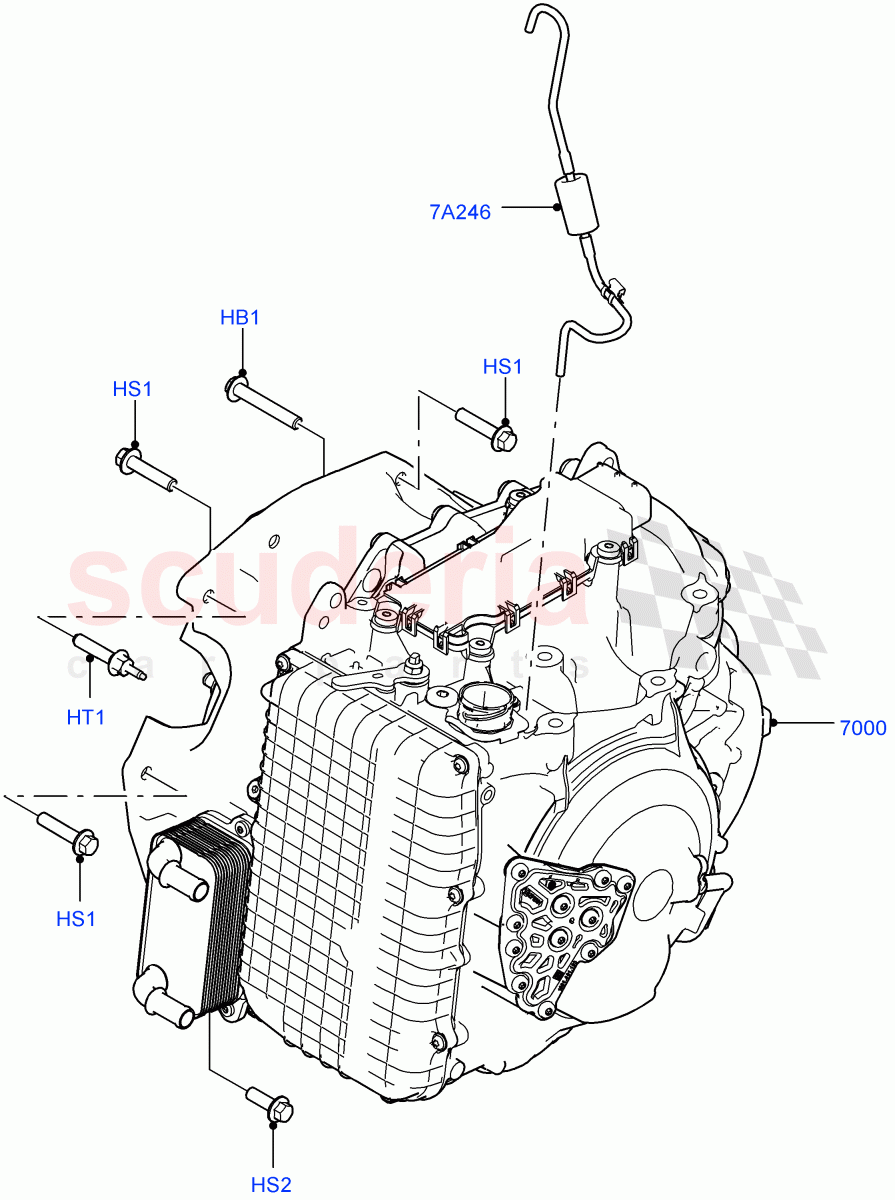

Auto Trans Assy & Speedometer Drive (2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR024946
BOLT
HEX Flange, M10 X 65MM, Transmission To Engine / From: FG000001 		- 2 Enquire
HS1 FB110096
SCREW
Hex Head, Hexagonal Head, M10 X 45, Transmission To Engine / From: FG000001 		- 6 Enquire
HS2 FS110306
BOLT - HEX.HEAD
Hexagonal Head, M10 X 30MM, Transmission To Engine / From: FG000001 		- 1 Enquire
HT1 LR024708
STUD
M10 X 45, M6 X 16MM, Transmission To Engine / From: FG000001 		- 1 Enquire
7A246 LR072105
TUBE - BREATHER
From: FG000001 		- 1 Enquire
7000 LR072666
AUTOMATIC TRANSMISSION
For CJLR Built Cars Please Also Order LR079911, New / From: FG000001 / To: GG310392 		- 1 Enquire
7000 LR074189
AUTOMATIC TRANSMISSION
For CJLR Built Cars Please Also Order LR079911, New / From: GG310393 		- 1 Enquire
