Timing Gear (2.0L I4 DSL HIGH DOHC AJ200, Halewood (UK), 2.0L I4 DSL MID DOHC AJ200) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Timing Gear (2.0L I4 DSL HIGH DOHC AJ200, Halewood (UK), 2.0L I4 DSL MID DOHC AJ200)

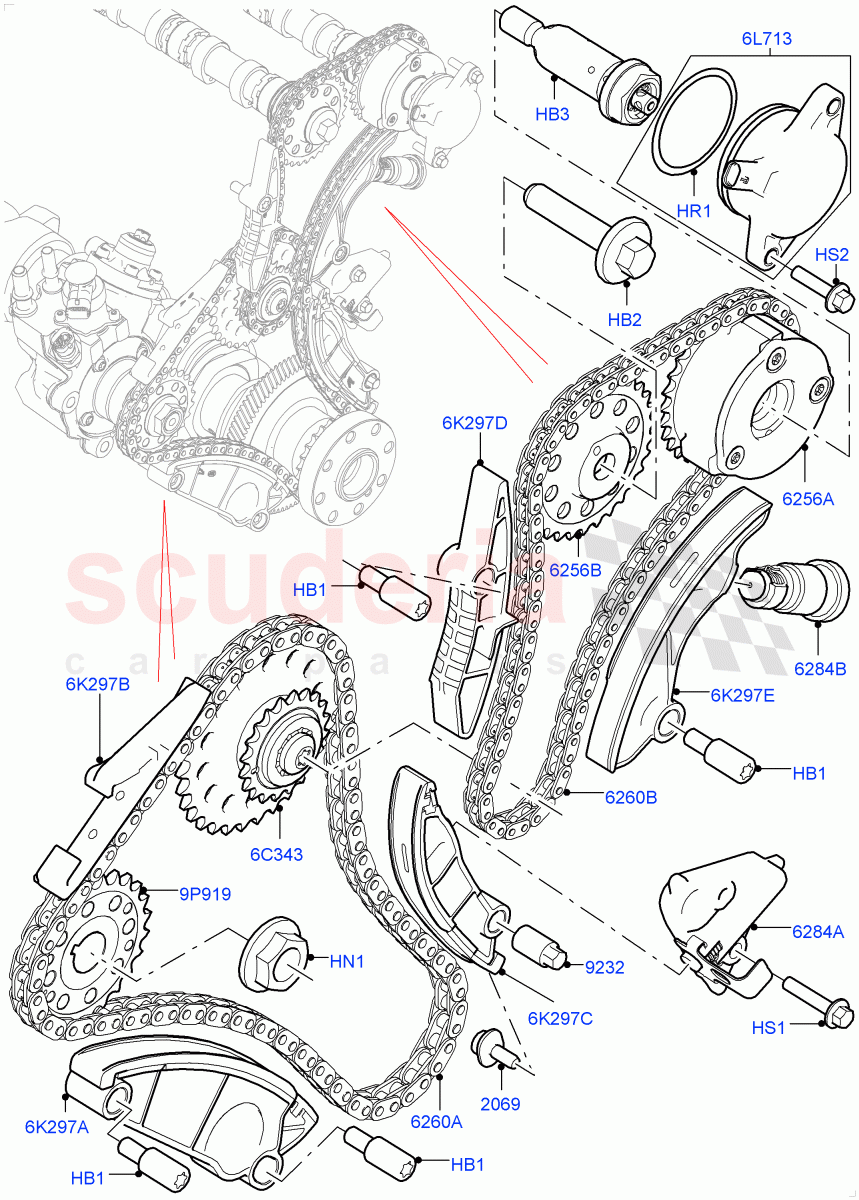

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073767	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073769	BOLT	Enquire	To Order
	LR080771	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073747	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073768	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095784	O-RING	Enquire	To Order
	LR154974	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073762	PIN - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073759	NUT - SPECIAL	Enquire	To Order
	LR120542	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073764	SPROCKET - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073744	SPROCKET - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073746	CHAIN - TIMING	Enquire	To Order
	LR132676	CHAIN - TIMING	Enquire	To Order
	LR132676	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139320	CHAIN - TIMING	Enquire	To Order
	LR132675	CHAIN - TIMING	Enquire	To Order
	LR139320	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073753	TENSIONER - TIMING BELT	Enquire	To Order
	LR138833	TENSIONER - TIMING CHAIN	Enquire	To Order
	LR138833	TENSIONER - TIMING CHAIN	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR073754	TENSIONER - TIMING BELT	Enquire	To Order
	LR084294	TENSIONER - TIMING BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124261	IDLER - DRIVE CHAIN	Enquire	To Order
	LR124261	IDLER - DRIVE CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073778	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order
	LR177463	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073765	SPROCKET - FUEL PUMP DRIVE	Enquire	To Order
	LR084345	SPROCKET - FUEL PUMP DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120540	GUIDE - TIMING CHAIN	Enquire	To Order
	LR120540	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073756	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124262	ARM - TIMING CHAIN TENSIONER	Enquire	To Order
	LR124262	ARM - TIMING CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073755	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073761	ARM - TIMING CHAIN TENSIONER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR073767	BOLT	LR073767 BOLT M8 X 15MM / From: GH000001	-	4	Enquire
HB2	LR073769	BOLT	LR073769 BOLT Camshaft / From: GH000001 / To: GH999999	-	1	Enquire
HB2	LR080771	BOLT	LR080771 BOLT Camshaft, M12 x 1.5 x 55 / From: HH000001	-	1	Enquire
HB3	LR073747	BOLT - SPECIAL	LR073747 BOLT - SPECIAL Variable Valve Timing Unit / From: GH000001	-	1	Enquire
HN1	LR073768	NUT	LR073768 NUT M18 / From: GH000001	-	1	Enquire
HR1	LR095784	O-RING	LR095784 O-RING	-	1	Enquire
HR1	LR154974	O-RING	LR154974 O-RING	-	1	Enquire
HS1	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM, Tensioner / From: GH000001	-	2	Enquire
HS2	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: GH000001	-	2	Enquire
6C343	LR124261	IDLER - DRIVE CHAIN	LR124261 IDLER - DRIVE CHAIN Intermediate / From: GH000001 / To: JH770574	-	1	Enquire
6C343	LR124261	IDLER - DRIVE CHAIN	LR124261 IDLER - DRIVE CHAIN Intermediate / From: JH770575	-	1	Enquire
6K297A	LR120540	GUIDE - TIMING CHAIN	LR120540 GUIDE - TIMING CHAIN Front, Lower, Primary / From: GH000001 / To: JH775215	-	1	Enquire
6K297A	LR120540	GUIDE - TIMING CHAIN	LR120540 GUIDE - TIMING CHAIN Front, Lower, Primary / From: JH775216	-	1	Enquire
6K297B	LR073756	GUIDE - TIMING CHAIN	LR073756 GUIDE - TIMING CHAIN Front, Primary, Upper / From: GH000001	-	1	Enquire
6K297C	LR124262	ARM - TIMING CHAIN TENSIONER	LR124262 ARM - TIMING CHAIN TENSIONER Primary, Rear / From: GH000001 / To: JH770574	-	1	Enquire
6K297C	LR124262	ARM - TIMING CHAIN TENSIONER	LR124262 ARM - TIMING CHAIN TENSIONER Primary, Rear / From: JH770575	-	1	Enquire
6K297D	LR073755	GUIDE - TIMING CHAIN	LR073755 GUIDE - TIMING CHAIN Front, Secondary / From: GH000001	-	1	Enquire
6K297E	LR073761	ARM - TIMING CHAIN TENSIONER	LR073761 ARM - TIMING CHAIN TENSIONER Rear, Secondary / From: GH000001	-	1	Enquire
6L713	LR073778	SOLENOID - ENGINE VARIABLE TIMING	LR073778 SOLENOID - ENGINE VARIABLE TIMING From: GH000001 / To: KH802807	-	1	Enquire
6L713	LR177463	SOLENOID - ENGINE VARIABLE TIMING	LR177463 SOLENOID - ENGINE VARIABLE TIMING From: KH802808	-	1	Enquire
9P919	LR073765	SPROCKET - FUEL PUMP DRIVE	LR073765 SPROCKET - FUEL PUMP DRIVE For Fuel Pump / From: GH000001 / To: GH580523	-	1	Enquire
9P919	LR084345	SPROCKET - FUEL PUMP DRIVE	LR084345 SPROCKET - FUEL PUMP DRIVE For Fuel Pump / From: GH580524	-	1	Enquire
2069	LR073762	PIN - SPECIAL	LR073762 PIN - SPECIAL PIVOT / From: GH000001	-	1	Enquire
6256A	LR073764	SPROCKET - CAMSHAFT	LR073764 SPROCKET - CAMSHAFT Variable Valve Timing Unit / From: GH000001	-	1	Enquire
6256B	LR073744	SPROCKET - CAMSHAFT	LR073744 SPROCKET - CAMSHAFT From: GH000001	-	1	Enquire
6260A	LR073746	CHAIN - TIMING	LR073746 CHAIN - TIMING Lower, Primary / From: GH000001 / To: GH999999	-	1	Enquire
6260A	LR132676	CHAIN - TIMING	LR132676 CHAIN - TIMING Lower, Primary / From: HH000001 / To: KH822051	-	1	Enquire
6260A	LR132676	CHAIN - TIMING	LR132676 CHAIN - TIMING Lower, Primary / From: KH822052	-	1	Enquire
6260B	LR139320	CHAIN - TIMING	LR139320 CHAIN - TIMING Secondary, Upper / From: GH000001 / To: KH822051	-	1	Enquire
6260B	LR132675	CHAIN - TIMING	LR132675 CHAIN - TIMING Secondary, Upper / From: KH822052 / To: KH830040	-	1	Enquire
6260B	LR139320	CHAIN - TIMING	LR139320 CHAIN - TIMING Secondary, Upper / From: KH830041	-	1	Enquire
6284A	LR073753	TENSIONER - TIMING BELT	LR073753 TENSIONER - TIMING BELT Primary / From: GH000001 / To: GH999999	-	1	Enquire
6284A	LR138833	TENSIONER - TIMING CHAIN	LR138833 TENSIONER - TIMING CHAIN Primary / From: HH000001 / To: KH789706	-	1	Enquire
6284A	LR138833	TENSIONER - TIMING CHAIN	LR138833 TENSIONER - TIMING CHAIN Primary / From: KH789707 / To: KH828434	-	1	Enquire
6284A	LR138833	TENSIONER - TIMING CHAIN	LR138833 TENSIONER - TIMING CHAIN Primary / From: KH828435	-	1	Enquire
6284B	LR073754	TENSIONER - TIMING BELT	LR073754 TENSIONER - TIMING BELT Secondary / From: GH000001 / To: GH999999	-	1	Enquire
6284B	LR084294	TENSIONER - TIMING BELT	LR084294 TENSIONER - TIMING BELT Secondary / From: HH000001	-	1	Enquire
9232	LR073759	NUT - SPECIAL	LR073759 NUT - SPECIAL From: GH000001 / To: JH773584	-	1	Enquire
9232	LR120542	NUT - SPECIAL	LR120542 NUT - SPECIAL From: JH773585	-	1	Enquire
