Name: Engine Modules And Sensors (2.0L AJ20D4 Diesel High PTA, Halewood (UK))
Rating: 4.2 (1 reviews)

View All

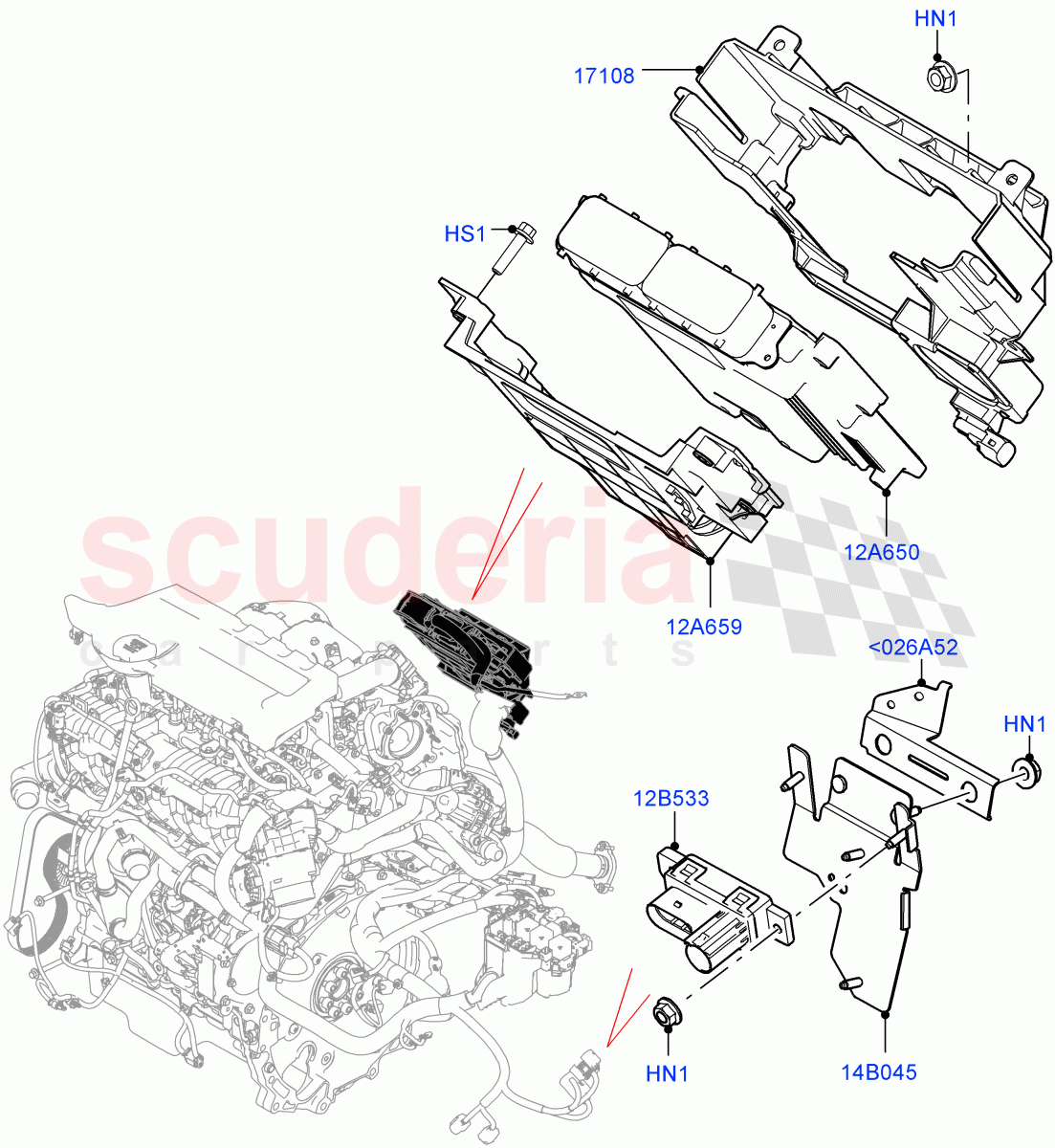

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096547	BRACKET - ENGINE CONTROL MODULE	$43.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117788	MODULE-ENGINE CONTROL	$1,389.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094640	BRACKET - ENGINE CONTROL MODULE	$28.16	To Order
	LR146472	BRACKET - ENGINE CONTROL MODULE	$24.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125574	BRACKET - CONTROL MODULE	$26.49	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<026A52	LR136778	BRACKET - RADIATOR UPPER	LR136778 BRACKET - RADIATOR UPPER Support Bracket / From: LH854718	$18.91	1
<026A52	LR118489	BRACKET - RADIATOR UPPER	LR118489 BRACKET - RADIATOR UPPER Support Bracket / From: LH000001 / To: LH854717	$22.41	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: LH000001 IN STOCK	$1.45	6
HS1	FS106256	SCREW	FS106256 SCREW M6 x 25MM / From: LH000001	$0.42	4
12A650	LR117788	MODULE-ENGINE CONTROL	LR117788 MODULE-ENGINE CONTROL Engine / From: LH000001	$1,389.92	1
12A659	LR094640	BRACKET - ENGINE CONTROL MODULE	LR094640 BRACKET - ENGINE CONTROL MODULE Inner, Module - Engine Control / From: LH000001 / To: LH873767	$28.16	1
12A659	LR146472	BRACKET - ENGINE CONTROL MODULE	LR146472 BRACKET - ENGINE CONTROL MODULE Inner, Module - Engine Control / From: LH873768	$24.50	1
12B533	LR125948	CONTROL UNIT - GLOW PLUG	LR125948 CONTROL UNIT - GLOW PLUG From: LH000001 / To: LH875770	$133.10	1
12B533	LR147217	CONTROL UNIT - GLOW PLUG	LR147217 CONTROL UNIT - GLOW PLUG From: LH875771	$110.71	1
14B045	LR125574	BRACKET - CONTROL MODULE	LR125574 BRACKET - CONTROL MODULE From: LH000001	$26.49	1
17108	LR096547	BRACKET - ENGINE CONTROL MODULE	LR096547 BRACKET - ENGINE CONTROL MODULE Module - Engine Control, Outer / From: LH000001	$43.71	1

Engine Modules And Sensors (2.0L Aj20D4 Diesel High Pta, Halewood (Uk))

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]
