Timing Gear Covers (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Timing Gear Covers (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200)...

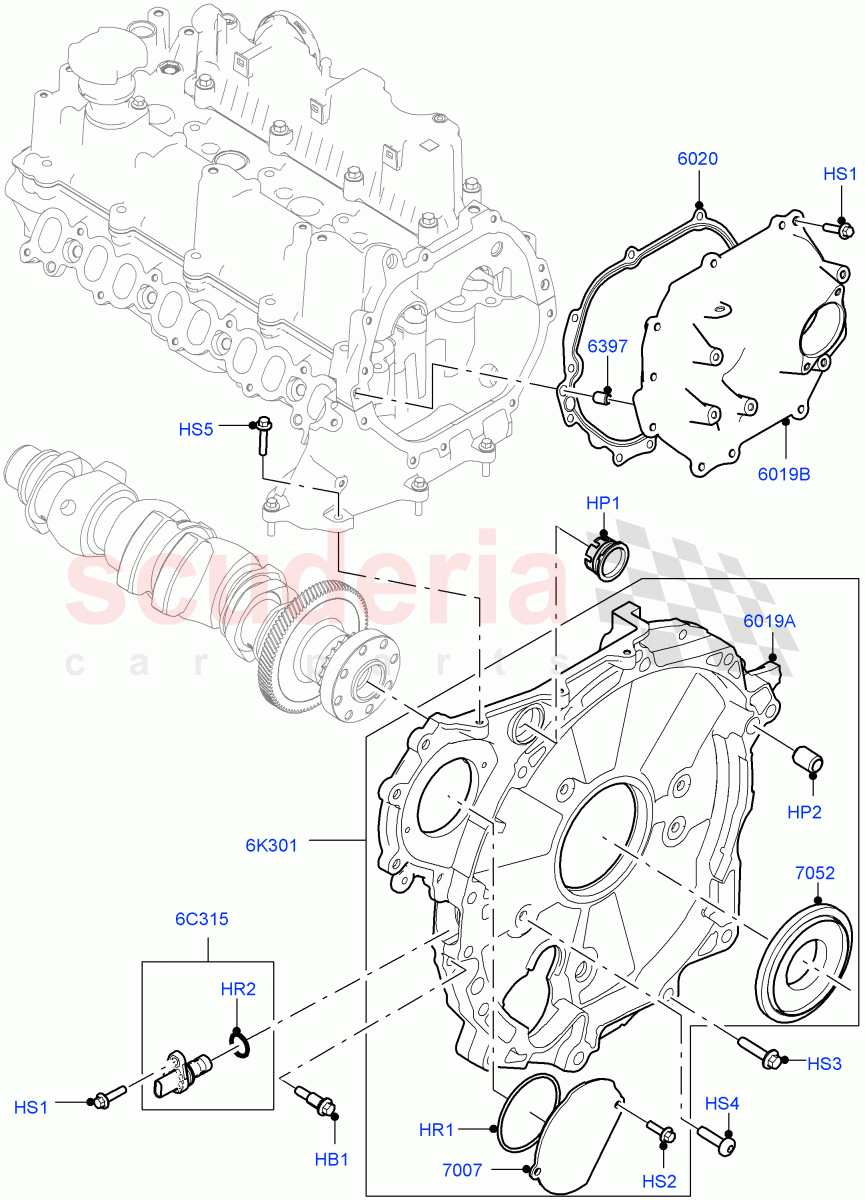

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088623	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073789	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073787	PIN - CENTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073794	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order
	LR082346	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073816	GASKET - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000335	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073795	PLATE - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084639	SEAL - CRANKSHAFT OIL - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096457	COVER - CYLINDER BLOCK REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073647	COVER - CYLINDER HEAD	Enquire	To Order
	LR079592	COVER - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074068	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order
	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096512	COVER - CYLINDER BLOCK REAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR088623	BOLT - SPECIAL	LR088623 BOLT - SPECIAL From: GT000001	-	2	Enquire
HP1	LR073789	PLUG - BLANKING	LR073789 PLUG - BLANKING Blanking, Chain Drive, Includes O'Ring / From: GT000001	-	1	Enquire
HP2	LR073787	PIN - CENTERING	LR073787 PIN - CENTERING 15.7MM, Pin - Dowell / From: GT000001	-	2	Enquire
HR1	LR073794	RING - SEALING	LR073794 RING - SEALING From: GT000001	-	1	Enquire
HR2	LR095782	O-RING	LR095782 O-RING 17.0MM, Crankshaft Position Sensor(CKP) / From: GT000001	-	1	Enquire
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: GT000001	-	11	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM, Plate - Blanking / From: GT000001 / To: GT999999	-	2	Enquire
HS2	LR082346	BOLT	LR082346 BOLT M6 X 20MM, Plate - Blanking / From: HT000001	-	2	Enquire
HS3	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: GT000001	-	10	Enquire
HS4	LR073786	SCREW	LR073786 SCREW M8 X 30MM / From: GT000001	-	4	Enquire
HS5	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: GT000001	-	3	Enquire
6C315	LR074068	SENSOR - CRANKSHAFT POSITION - CPS	LR074068 SENSOR - CRANKSHAFT POSITION - CPS From: GT000001 / To: JT999999	-	1	Enquire
6C315	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	LR126181 SENSOR - CRANKSHAFT POSITION - CPS From: KT000001	-	1	Enquire
6K301	LR096512	COVER - CYLINDER BLOCK REAR	LR096512 COVER - CYLINDER BLOCK REAR Includes Seal, Lower, Timing Chain Cover / From: GT000001	-	1	Enquire
6019A	LR096457	COVER - CYLINDER BLOCK REAR	LR096457 COVER - CYLINDER BLOCK REAR Lower, Timing Chain Cover / From: GT000001	-	1	Enquire
6019B	LR073647	COVER - CYLINDER HEAD	LR073647 COVER - CYLINDER HEAD Timing Chain Cover, Upper / From: GT000001 / To: GT999999	-	1	Enquire
6019B	LR079592	COVER - CYLINDER HEAD	LR079592 COVER - CYLINDER HEAD Timing Chain Cover, Upper / From: HT000001	-	1	Enquire
6020	LR073816	GASKET - COVER	LR073816 GASKET - COVER Timing Chain Cover, Upper / From: GT000001	-	1	Enquire
6397	LR000335	DOWEL - PIN	LR000335 DOWEL - PIN	-	2	Enquire
7007	LR073795	PLATE - BLANKING	LR073795 PLATE - BLANKING Access Hole Cover / From: GT000001	-	1	Enquire
7052	LR084639	SEAL - CRANKSHAFT OIL - REAR	LR084639 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal, Rear / From: GT000001	-	1	Enquire
