Steering Gear (Lhd, Halewood (Uk)) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Steering Gear (LHD, Halewood (UK)) ((V) TOKH999999)

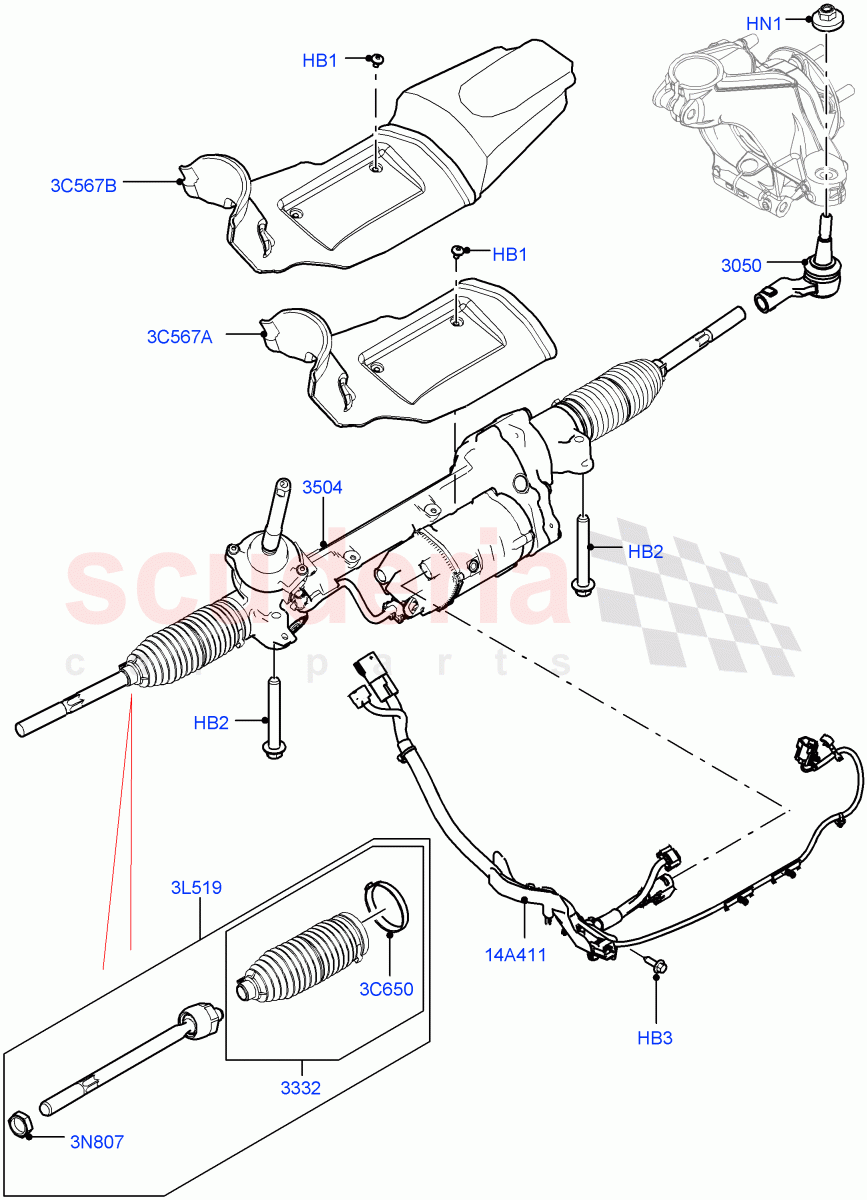

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR026277 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR002577 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR026275 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR027570 JOINT - BALL Enquire To Order
LR026267 JOINT - BALL Enquire To Order
Photo Part No Description Price (each) Stock
LR063972 KIT - CONNECTING ROD BOOT Enquire To Order
LR026273 KIT - CONNECTING ROD BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR063974 GEAR - STEERING Enquire To Order
LR088701 GEAR - STEERING Enquire To Order
LR087170 GEAR - STEERING Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090888 CLAMP - BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR026271 ROD - SPINDLE CONNECTING Enquire To Order
LR097993 ROD - SPINDLE CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR032717 NUT - ADJUSTING Enquire To Order
LR097994 NUT - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
LR065977 WIRING - POWER STEERING Enquire To Order
LR065978 WIRING - POWER STEERING Enquire To Order
LR065979 WIRING - POWER STEERING Enquire To Order
...and 37 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026262 SHIELD - STEERING GEAR Enquire To Order
Photo Part No Description Price (each) Stock
LR074633 SHIELD - STEERING GEAR Enquire To Order
LR088613 SHIELD - STEERING GEAR Enquire To Order
View All
Steering Gear (LHD, Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR026277
BOLT
M6 x 12MM, Torx 		- 3 Enquire
HB2 LR002577
BOLT
M14 X 105MM 		- 2 Enquire
HB3 FS108166
BOLT
Hexagonal Head, M8 X 16MM 		- 1 Enquire
HN1 LR026275
NUT - FLANGED
M14 		- 2 Enquire
3C567A LR026262
SHIELD - STEERING GEAR
2.0L 16V TIVCT T/C 240PS Petrol / Heat Shield 		- 1 Enquire
3C567B LR074633
SHIELD - STEERING GEAR
2.0L I4 DSL MID DOHC AJ200 / Heat Shield / From: GH000001 / To: GH999999 		- 1 Enquire
3C567B LR088613
SHIELD - STEERING GEAR
2.0L I4 DSL HIGH DOHC AJ200 / Heat Shield / From: HH000001 		- 1 Enquire
3C650 LR090888
CLAMP - BOOT 		- 1 Enquire
3L519 LR026271
ROD - SPINDLE CONNECTING
RH/LH / To: HH999999 		- 2 Enquire
3L519 LR097993
ROD - SPINDLE CONNECTING
RH/LH / From: JH000001 		- 2 Enquire
3N807 LR032717
NUT - ADJUSTING
Locking, M18 x 1.5, Torx / To: HH999999 		- 2 Enquire
3N807 LR097994
NUT - ADJUSTING
Locking / From: JH000001 		- 2 Enquire
14A411 LR065977
WIRING - POWER STEERING
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD, Stage V Plus DPF / To: FH514699 		- 1 Enquire
14A411 LR065978
WIRING - POWER STEERING
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD, Proconve L5 Brazil / To: FH514699 		- 1 Enquire
14A411 LR065979
WIRING - POWER STEERING
2.0L 16V TIVCT T/C Gen2 Petrol, 9 Speed Auto AWD, SULEV Requirements / To: FH514699 		- 1 Enquire
14A411 LR065980
WIRING - POWER STEERING
2.2L CR DI 16V Diesel, 9 Speed Auto AWD, Stage V Plus DPF / To: FH514699 		- 1 Enquire
14A411 LR065981
WIRING - POWER STEERING
2.2L CR DI 16V Diesel, 9 Speed Auto AWD, Stage V European Emissions / To: FH512799 		- 1 Enquire
14A411 LR065982
WIRING - POWER STEERING
2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, Euro Stage 4 Emissions / To: FH514699 		- 1 Enquire
14A411 LR076185
WIRING - POWER STEERING
2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD, EU2, Less Emission Tank / From: FH514700 		- 1 Enquire
14A411 LR076179
WIRING - POWER STEERING
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD, EU5 Emission With DPF Type 2 / From: FH514700 / To: FH999999 		- 1 Enquire
14A411 LR076183
WIRING - POWER STEERING
2.2L CR DI 16V Diesel, 9 Speed Auto AWD, Proconve L6 Emissions / From: FH514700 / To: GH999999 		- 1 Enquire
14A411 LR073572
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, Euro Stage 4 Emissions / From: GH000001 / To: GH630451 		- 1 Enquire
14A411 LR073573
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans M66 - AWD, Proconve L6 Emissions / From: GH000001 / To: GH630451 		- 1 Enquire
14A411 LR073574
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, Euro Stage 4 Emissions / From: GH000001 / To: GH630451 		- 1 Enquire
14A411 LR074109
WIRE
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, Stage V Plus DPF / From: GH000001 / To: GH630451 		- 1 Enquire
14A411 LR076181
WIRING - POWER STEERING
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD, Euro Stage 4 Emissions / From: FH514700 / To: FH999999 		- 1 Enquire
14A411 LR076184
WIRING - POWER STEERING
2.2L CR DI 16V Diesel, 9 Speed Auto AWD, Proconve L5 Brazil / From: FH512800 / To: GH999999 		- 1 Enquire
14A411 LR076182
WIRING - POWER STEERING
2.0L 16V TIVCT T/C Gen2 Petrol, 9 Speed Auto AWD, Less Emission Tank, SULEV Requirements / From: FH514700 		- 1 Enquire
14A411 LR085541
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, EU6 + DPF Emissions, With Diesel Exh Fluid Emission Tank / From: HH000001 / To: HH689857 		- 1 Enquire
14A411 LR085542
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, EU6 + DPF Emissions, With Diesel Exh Fluid Emission Tank / From: HH000001 / To: HH689857 		- 1 Enquire
14A411 LR085543
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, LEV 160, With Diesel Exh Fluid Emission Tank / From: HH000001 / To: JH999999 		- 1 Enquire
14A411 LR085545
WIRING - POWER STEERING
2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, Euro Stage 4 Emissions, Less Emission Tank / From: HH000001 / To: HH689857 		- 1 Enquire
14A411 LR085547
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, Less Emission Tank, Proconve L6 Emissions / From: HH000001 / To: HH689857 		- 1 Enquire
14A411 LR085548
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, Less Emission Tank, Proconve L6 Emissions / From: HH000001 / To: HH689857 		- 1 Enquire
14A411 LR096064
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, Euro Stage 4 Emissions / From: GH630452 / To: GH999999 		- 1 Enquire
14A411 LR096145
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, EU6 + DPF Emissions, With Diesel Exh Fluid Emission Tank / From: HH689858 / To: JH999999 		- 1 Enquire
14A411 LR096140
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, Euro Stage 4 Emissions, Less Emission Tank / From: HH689858 / To: JH999999 		- 1 Enquire
14A411 LR096141
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, EU6 + DPF Emissions, With Diesel Exh Fluid Emission Tank / From: HH689858 / To: JH999999 		- 1 Enquire
14A411 LR096144
WIRING - POWER STEERING
2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, Less Emission Tank, Stage V Plus DPF / From: HH689858 / To: JH999999 		- 1 Enquire
14A411 LR096149
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, Less Emission Tank, Proconve L6 Emissions / From: HH689858 / To: JH999999 		- 1 Enquire
14A411 LR096068
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans M66 - AWD, Euro Stage 4 Emissions / From: GH630452 / To: GH999999 		- 1 Enquire
14A411 LR096066
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans-JLR M66 2WD, Proconve L6 Emissions / From: GH630452 / To: GH999999 		- 1 Enquire
14A411 LR096070
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, EU6 + DPF Emissions / From: GH630452 / To: GH999999 		- 1 Enquire
14A411 LR097673
WIRING - POWER STEERING
2.0L I4 Mid DOHC AJ200 Petrol, 9 Speed Auto AWD, EU6 Emissions, Less Emission Tank / From: JH000001 		- 1 Enquire
14A411 LR097674
WIRING - POWER STEERING
2.0L I4 High DOHC AJ200 Petrol, 9 Speed Auto AWD, Beijing 6 Petrol Emission, Less Emission Tank / From: JH000001 		- 1 Enquire
14A411 LR113328
WIRE
2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, EU6 + DPF Emissions, With Diesel Exh Fluid Emission Tank / From: KH000001 		- 1 Enquire
14A411 LR113330
WIRE
2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, Euro Stage 4 Emissions, Less Emission Tank / From: KH000001 		- 1 Enquire
14A411 LR113331
WIRE
2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, Less Emission Tank, Stage V Plus DPF / From: KH000001 		- 1 Enquire
14A411 LR113333
WIRE
2.0L I4 DSL HIGH DOHC AJ200, 9 Speed Auto AWD, EU6D Diesel + DPF Emissions, With Diesel Exh Fluid Emission Tank / From: KH000001 		- 1 Enquire
14A411 LR113334
WIRE
2.0L I4 DSL HIGH DOHC AJ200, 6 Speed Manual Trans BG6, EU6D Diesel + DPF Emissions, With Diesel Exh Fluid Emission Tank / From: KH000001 		- 1 Enquire
14A411 LR113332
WIRE
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans BG6, Less Emission Tank, Proconve L6 Emissions / From: KH000001 		- 1 Enquire
14A411 LR113329
WIRE
2.0L I4 DSL MID DOHC AJ200, 6 Speed Manual Trans BG6, EU6 + DPF Emissions, With Diesel Exh Fluid Emission Tank / From: KH000001 		- 1 Enquire
3050 LR027570
JOINT - BALL
LH 		- 1 Enquire
3050 LR026267
JOINT - BALL
RH 		- 1 Enquire
3332 LR063972
KIT - CONNECTING ROD BOOT
With Clamps / To: FH999999 		- 2 Enquire
3332 LR026273
KIT - CONNECTING ROD BOOT
With Clamps / From: GH000001 		- 2 Enquire
3504 LR063974
GEAR - STEERING
New Part-Please Check For Reman Version / To: FH512799 		- 1 Enquire
3504 LR088701
GEAR - STEERING
New Part-Please Check For Reman Version / From: FH512800 / To: GH633451 		- 1 Enquire
3504 LR087170
GEAR - STEERING
New Part - Please Check For Remanufactured Version / From: HH000001 / To: HH999999 		- 1 Enquire
3504 LR098163
GEAR - STEERING
New Part - Please Check For Remanufactured Version / From: JH000001 / To: KH783260 		- 1 Enquire
3504 LR122729
GEAR - STEERING
New Part - Please Check For Remanufactured Version / From: KH783261 		- 1 Enquire
3504 LR140523
GEAR - STEERING
New Part-Please Check For Reman Version / From: GH633452 / To: GH999999 		- 1 Enquire
3504 LR142571
GEAR - STEERING
Remanufactured Part / To: GH999999 		- 1 Enquire
3504 LR142582
GEAR - STEERING
Remanufactured Part / From: HH000001 		- 1 Enquire
