Front Seat Pads/Valances & Heating (Pads/Valances) (Changsu (China)) ((V) Fromkg446857)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Front Seat Pads/Valances & Heating (Pads/Valances) (Changsu (China)) ((V) FROMKG446857)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR114961 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR114878 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR114881 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000044 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR079303 HANDLE - SEAT BACK ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
LR080780 ADJUSTER - SEAT WITH HEIGHT ADJUST Enquire To Order
LR080781 ADJUSTER - SEAT WITH HEIGHT ADJUST Enquire To Order
Photo Part No Description Price (each) Stock
LR117740 WIRE CARRIER - SEAT VALANCE Enquire To Order
LR117741 WIRE CARRIER - SEAT VALANCE Enquire To Order
Photo Part No Description Price (each) Stock
LR126291 BEZEL - HEADREST Enquire To Order
LR058693 BEZEL - HEADREST Enquire To Order
Photo Part No Description Price (each) Stock
LR114967 CARRIER - SEAT VALANCE Enquire To Order
LR114968 CARRIER - SEAT VALANCE Enquire To Order
Photo Part No Description Price (each) Stock
LR080783 ADJUSTER - SEAT WITH HEIGHT ADJUST Enquire To Order
LR080784 ADJUSTER - SEAT WITH HEIGHT ADJUST Enquire To Order
Photo Part No Description Price (each) Stock
LR118232 COVER - RECLINE MECHANISM Enquire To Order
LR118233 COVER - RECLINE MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR131249 COVER - RECLINE MECHANISM Enquire To Order
LR131251 COVER - RECLINE MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR133985 VALANCE - SEAT CUSHION Enquire To Order
LR133987 VALANCE - SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR133986 VALANCE - SEAT CUSHION Enquire To Order
LR133988 VALANCE - SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR128424 VALANCE - SEAT CUSHION Enquire To Order
LR118230 VALANCE - SEAT CUSHION Enquire To Order
LR128425 VALANCE - SEAT CUSHION Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR126461 PAD - SEAT BACK Enquire To Order
LR126462 PAD - SEAT BACK Enquire To Order
LR126463 PAD - SEAT BACK Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR126466 PAD - SEAT BACK Enquire To Order
LR126472 PAD - SEAT BACK Enquire To Order
LR137420 PAD - SEAT BACK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR126457 PAD - SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR126458 PAD - SEAT CUSHION Enquire To Order
View All

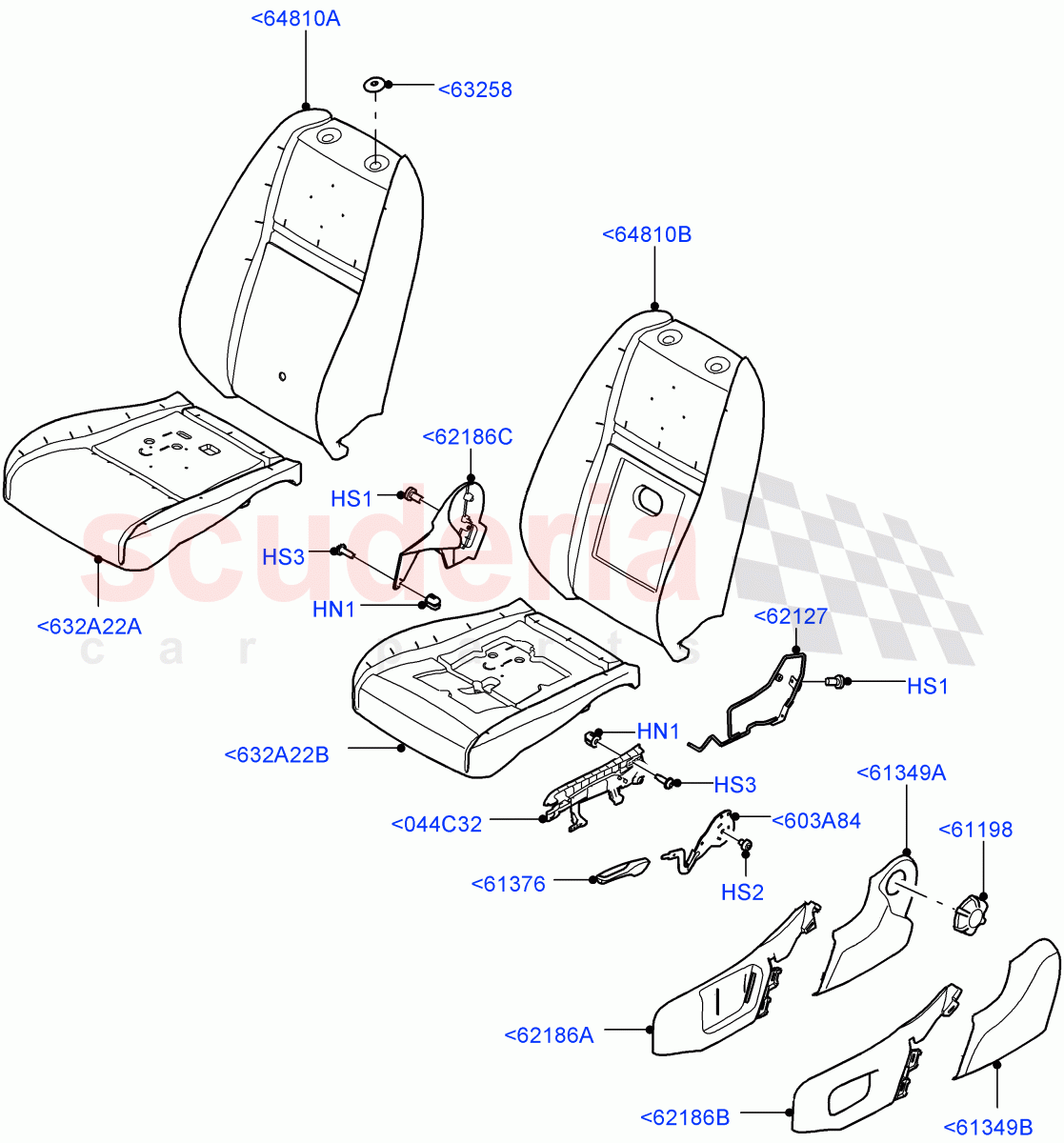

Front Seat Pads/Valances & Heating (Pads/Valances) (Changsu (China)) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044C32 LR114967
CARRIER - SEAT VALANCE
RH / From: KG446857 		- 1 Enquire
<044C32 LR114968
CARRIER - SEAT VALANCE
LH / From: KG446857 		- 1 Enquire
<603A84 LR080783
ADJUSTER - SEAT WITH HEIGHT ADJUST
Seat Cushion Manual Fore/Aft / RH / From: KG446857 		- 1 Enquire
<603A84 LR080784
ADJUSTER - SEAT WITH HEIGHT ADJUST
Seat Cushion Manual Fore/Aft / LH / From: KG446857 		- 1 Enquire
<632A22A LR126457
PAD - SEAT CUSHION
Heated Seats - Drivers/Passengers / RH/LH / From: KG446857 		- 2 Enquire
<632A22B LR126458
PAD - SEAT CUSHION
With Heated/Cooled Front Seats Only / RH/LH / From: KG446857 		- 2 Enquire
<61198 LR079303
HANDLE - SEAT BACK ADJUSTING
Seat Cushion Manual Fore/Aft / RH/LH / From: KG446857 		- 2 Enquire
<61349A LR118232
COVER - RECLINE MECHANISM
Seat Cushion Power Fore/Aft / RH / From: KG446857 		- 1 Enquire
<61349A LR118233
COVER - RECLINE MECHANISM
Seat Cushion Power Fore/Aft / LH / From: KG446857 		- 1 Enquire
<61349B LR131249
COVER - RECLINE MECHANISM
Seat Cushion Power Fore/Aft / RH / From: KG446857 		- 1 Enquire
<61349B LR131251
COVER - RECLINE MECHANISM
Seat Cushion Power Fore/Aft / LH / From: KG446857 		- 1 Enquire
<61376 LR080780
ADJUSTER - SEAT WITH HEIGHT ADJUST
Seat Cushion Manual Fore/Aft / RH / From: KG446857 		- 1 Enquire
<61376 LR080781
ADJUSTER - SEAT WITH HEIGHT ADJUST
Seat Cushion Manual Fore/Aft / LH / From: KG446857 		- 1 Enquire
<62127 LR117740
WIRE CARRIER - SEAT VALANCE
RH / From: KG446857 		- 1 Enquire
<62127 LR117741
WIRE CARRIER - SEAT VALANCE
LH / From: KG446857 		- 1 Enquire
<62186A LR133985
VALANCE - SEAT CUSHION
Seat Cushion Manual Fore/Aft / RH, Outer / From: KG446857 		- 1 Enquire
<62186A LR133987
VALANCE - SEAT CUSHION
Seat Cushion Manual Fore/Aft / LH, Outer / From: KG446857 		- 1 Enquire
<62186B LR133986
VALANCE - SEAT CUSHION
Seat Cushion Power Fore/Aft / RH, Outer / From: KG446857 		- 1 Enquire
<62186B LR133988
VALANCE - SEAT CUSHION
Seat Cushion Power Fore/Aft / LH, Outer / From: KG446857 		- 1 Enquire
<62186C LR128424
VALANCE - SEAT CUSHION
Oyster Beige / Inner, RH Seat / From: KG446857 		- 1 Enquire
<62186C LR118230
VALANCE - SEAT CUSHION
Light Oyster/Ebony / Inner, RH Seat / From: KG446857 		- 1 Enquire
<62186C LR128425
VALANCE - SEAT CUSHION
Acorn / Inner, RH Seat / From: KG446857 		- 1 Enquire
<62186C LR118231
VALANCE - SEAT CUSHION
Light Oyster/Ebony / Inner, LH Seat / From: KG446857 		- 1 Enquire
<62186C LR128426
VALANCE - SEAT CUSHION
Oyster Beige / Inner, LH Seat / From: KG446857 		- 1 Enquire
<62186C LR128427
VALANCE - SEAT CUSHION
Acorn / Inner, LH Seat / From: KG446857 		- 1 Enquire
<63258 LR126291
BEZEL - HEADREST
Light Oyster/Ebony / From: KG446857 		- 4 Enquire
<63258 LR058693
BEZEL - HEADREST
Ebony Black/Ebony Black Interior / From: KG446857 		- 4 Enquire
<64810A LR126461
PAD - SEAT BACK
Drivers Leather Seat Bck Map Pocket, Less Rear Entertainment Screen / RH / From: KG446857 		- 1 Enquire
<64810A LR126462
PAD - SEAT BACK
Drivers Leather Seat Bck Map Pocket, RSE System - Intergrated Tablet / RH / From: KG446857 		- 1 Enquire
<64810A LR126463
PAD - SEAT BACK
Less Rear Entertainment Screen, Less Seat Temperature Control, Map Pocket - Mounted / RH / From: KG446857 		- 1 Enquire
<64810A LR126464
PAD - SEAT BACK
Heated Seats - Drivers/Passengers, Map Pocket - Mounted, RSE System - Intergrated Tablet / RH / From: KG446857 		- 1 Enquire
<64810A LR126467
PAD - SEAT BACK
Drivers Leather Seat Bck Map Pocket, Less Rear Entertainment Screen / LH / From: KG446857 		- 1 Enquire
<64810A LR126468
PAD - SEAT BACK
Drivers Leather Seat Bck Map Pocket, RSE System - Intergrated Tablet / LH / From: KG446857 		- 1 Enquire
<64810A LR126469
PAD - SEAT BACK
Less Rear Entertainment Screen, Less Seat Temperature Control, Map Pocket - Mounted / LH / From: KG446857 		- 1 Enquire
<64810A LR126470
PAD - SEAT BACK
Less Seat Temperature Control, Map Pocket - Mounted, RSE System - Intergrated Tablet / LH / From: KG446857 		- 1 Enquire
<64810B LR126466
PAD - SEAT BACK
Map Pocket - Mounted, RSE System - Intergrated Tablet, With Heated/Cooled Front Seats Only / RH / From: KG446857 		- 1 Enquire
<64810B LR126472
PAD - SEAT BACK
Map Pocket - Mounted, RSE System - Intergrated Tablet, With Heated/Cooled Front Seats Only / LH / From: KG446857 		- 1 Enquire
<64810B LR137420
PAD - SEAT BACK
Less Rear Entertainment Screen, Map Pocket - Mounted, With Heated/Cooled Front Seats Only / LH / From: KG446857 		- 1 Enquire
<64810B LR137417
PAD - SEAT BACK
Less Rear Entertainment Screen, Map Pocket - Mounted, With Heated/Cooled Front Seats Only / RH / From: KG446857 		- 1 Enquire
HN1 LR114961
NUT
Attaches Valance / From: KG446857 		- 10 Enquire
HS1 LR114878
SCREW
Attaches Valance / From: KG446857 		- 6 Enquire
HS2 LR114881
SCREW
Seat Cushion Manual Fore/Aft / Retains Seat Recline Lever / From: KG446857 		- 4 Enquire
HS3 LR000044
SCREW
4 X 12MM, Attaches Valance / From: KG446857 		- 10 Enquire
