Back Door/Tailgate Trim Panels (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Back Door/Tailgate Trim Panels (Changsu (China)) ((V) FROMFG000001)

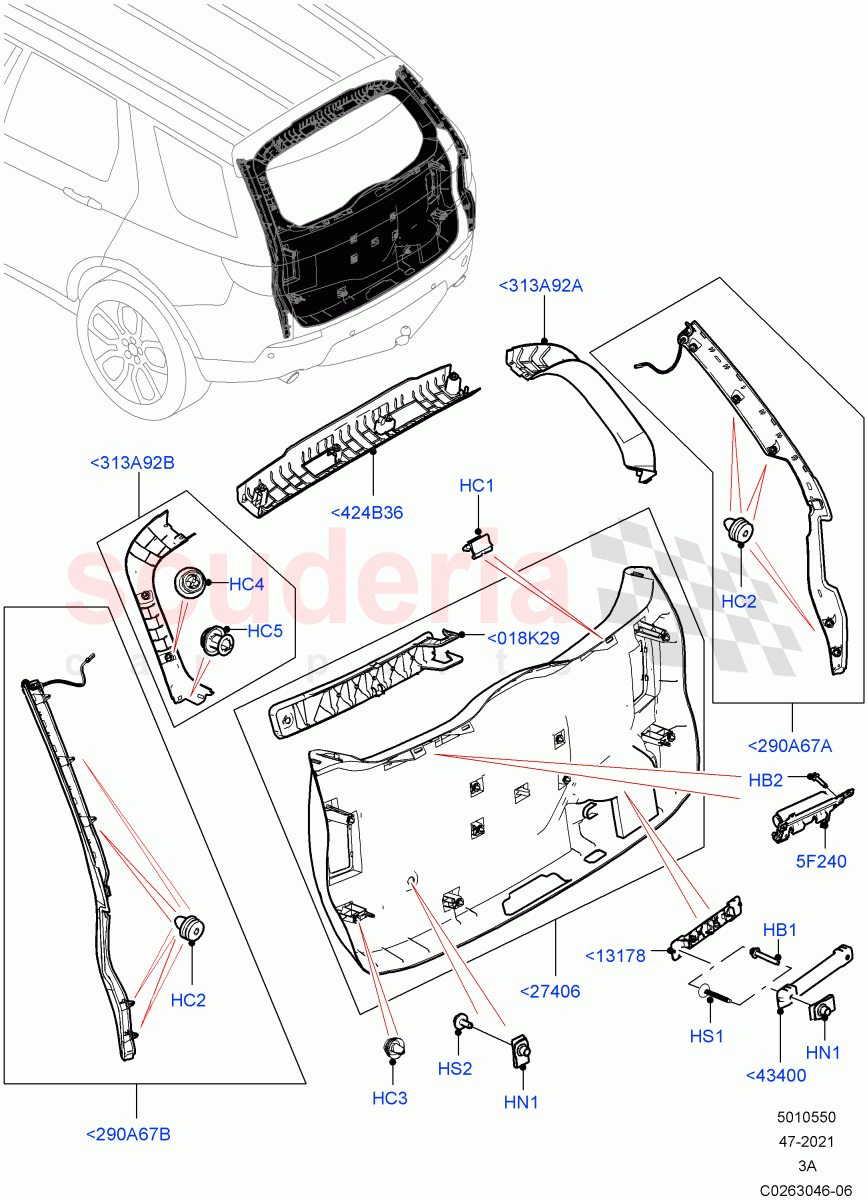

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140069	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001790	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123788	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146846	CLIP - LANTERN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109136	CLIP - LANTERN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114151	NUT	Enquire	To Order
	LR089535	NUT - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500400	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137725	DAMPER - DAMPING MASS	Enquire	To Order
	LR139501	DAMPER - DAMPING MASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075114	COVER - TAILGATE HANDLE	Enquire	To Order
	LR075113	COVER - TAILGATE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075424	PANEL - TAILGATE FINISH	Enquire	To Order
	LR075425	PANEL - TAILGATE FINISH	Enquire	To Order
	LR077433	PANEL - TAILGATE FINISH	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR075112	HANDLE - TAILGATE	Enquire	To Order
	LR075109	HANDLE - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127771	COVER WARNING TRIANGLE - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077095	PANEL - DOOR TRIM - UPPER	Enquire	To Order
	LR077098	PANEL - DOOR TRIM - UPPER	Enquire	To Order
	LR077094	PANEL - DOOR TRIM - UPPER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR075409	MOULDING - TAILGATE	Enquire	To Order
	LR090575	MOULDING - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075410	MOULDING - TAILGATE	Enquire	To Order
	LR090574	MOULDING - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076667	COVER - HINGE	Enquire	To Order
	LR076668	COVER - HINGE	Enquire	To Order
	LR076669	COVER - HINGE	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR076670	COVER - HINGE	Enquire	To Order
	LR076671	COVER - HINGE	Enquire	To Order
	LR076673	COVER - HINGE	Enquire	To Order

...and 4 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<018K29	LR127771	COVER WARNING TRIANGLE - TAILGATE	LR127771 COVER WARNING TRIANGLE - TAILGATE Tailgate-Powered Upper / From: KG446857	-	1	Enquire
<290A67A	LR075409	MOULDING - TAILGATE	LR075409 MOULDING - TAILGATE Tailgate - Hands Free / RH / From: FG000001 / To: JG395100	-	1	Enquire
<290A67A	LR090575	MOULDING - TAILGATE	LR090575 MOULDING - TAILGATE Tailgate - Hands Free / RH / From: JG395101	-	1	Enquire
<290A67B	LR075410	MOULDING - TAILGATE	LR075410 MOULDING - TAILGATE Tailgate - Hands Free / LH / From: FG000001 / To: JG395100	-	1	Enquire
<290A67B	LR090574	MOULDING - TAILGATE	LR090574 MOULDING - TAILGATE Tailgate - Hands Free / LH / From: JG395101	-	1	Enquire
<313A92A	LR076667	COVER - HINGE	LR076667 COVER - HINGE Cirrus Headliner / RH, Upper Tailgate / From: FG000001	-	1	Enquire
<313A92A	LR076668	COVER - HINGE	LR076668 COVER - HINGE Ivory Headliner / RH, Upper Tailgate / From: FG000001	-	1	Enquire
<313A92A	LR076669	COVER - HINGE	LR076669 COVER - HINGE Ebony Headliner / RH, Upper Tailgate / From: FG000001 / To: KG446856	-	1	Enquire
<313A92A	LR127257	COVER - HINGE	LR127257 COVER - HINGE Ebony Headliner / RH, Upper Tailgate / From: KG446857 / To: MG140568	-	1	Enquire
<313A92A	LR127254	COVER - HINGE	LR127254 COVER - HINGE Light Oyster Headliner / RH, Upper Tailgate / From: KG446857 / To: MG140568	-	1	Enquire
<313A92A	LR146859	COVER - HINGE	LR146859 COVER - HINGE Light Oyster Headliner / RH, Upper Tailgate / From: MG140569	-	1	Enquire
<313A92A	LR146860	COVER - HINGE	LR146860 COVER - HINGE Ebony Headliner / RH, Upper Tailgate / From: MG140569	-	1	Enquire
<313A92B	LR076670	COVER - HINGE	LR076670 COVER - HINGE Cirrus Headliner / LH, Upper Tailgate / From: FG000001	-	1	Enquire
<313A92B	LR076671	COVER - HINGE	LR076671 COVER - HINGE Ivory Headliner / LH, Upper Tailgate / From: FG000001	-	1	Enquire
<313A92B	LR076673	COVER - HINGE	LR076673 COVER - HINGE Ebony Headliner / LH, Upper Tailgate / From: FG000001 / To: KG446856	-	1	Enquire
<313A92B	LR127259	COVER - HINGE	LR127259 COVER - HINGE Ebony Headliner / LH, Upper Tailgate / From: KG446857 / To: MG140568	-	1	Enquire
<313A92B	LR127258	COVER - HINGE	LR127258 COVER - HINGE Light Oyster Headliner / LH, Upper Tailgate / From: KG446857 / To: MG140568	-	1	Enquire
<313A92B	LR146857	COVER - HINGE	LR146857 COVER - HINGE Light Oyster Headliner / LH, Upper Tailgate / From: MG140569	-	1	Enquire
<313A92B	LR146858	COVER - HINGE	LR146858 COVER - HINGE Ebony Headliner / LH, Upper Tailgate / From: MG140569	-	1	Enquire
<424B36	LR077095	PANEL - DOOR TRIM - UPPER	LR077095 PANEL - DOOR TRIM - UPPER Cirrus Headliner / Upper Tailgate / From: FG000001	-	1	Enquire
<424B36	LR077098	PANEL - DOOR TRIM - UPPER	LR077098 PANEL - DOOR TRIM - UPPER Ivory Headliner / Upper Tailgate / From: FG000001	-	1	Enquire
<424B36	LR077094	PANEL - DOOR TRIM - UPPER	LR077094 PANEL - DOOR TRIM - UPPER Ebony Headliner / Upper Tailgate / From: FG000001 / To: KG446856	-	1	Enquire
<424B36	LR127261	COVER - HINGE	LR127261 COVER - HINGE Ebony Headliner / Upper Tailgate / From: KG446857	-	1	Enquire
<424B36	LR127260	COVER - HINGE	LR127260 COVER - HINGE Light Oyster Headliner / Upper Tailgate / From: KG446857	-	1	Enquire
<13178	LR075114	COVER - TAILGATE HANDLE	LR075114 COVER - TAILGATE HANDLE I/P Facia Contrast - Lunar/Glacia / Handle / From: FG000001	-	1	Enquire
<13178	LR075113	COVER - TAILGATE HANDLE	LR075113 COVER - TAILGATE HANDLE I/P Facia Contrast - Ebony/Ivory / Handle / From: FG000001	-	1	Enquire
<27406	LR075424	PANEL - TAILGATE FINISH	LR075424 PANEL - TAILGATE FINISH I/P Facia Contrast - Lunar/Glacia, Tailgate-Powered Upper / From: FG000001 / To: KG446856	-	1	Enquire
<27406	LR075425	PANEL - TAILGATE FINISH	LR075425 PANEL - TAILGATE FINISH I/P Facia Contrast - Ebony/Cirrus, Tailgate-Powered Upper / From: FG000001 / To: KG446856	-	1	Enquire
<27406	LR077433	PANEL - TAILGATE FINISH	LR077433 PANEL - TAILGATE FINISH I/P Facia Contrast - Cirrus/Lunar, With Conventional Tailgate / From: FG000001 / To: KG446856	-	1	Enquire
<27406	LR077432	PANEL - TAILGATE FINISH	LR077432 PANEL - TAILGATE FINISH I/P Facia Cntr-Ebony Black/Almond, With Conventional Tailgate / From: FG000001 / To: KG446856	-	1	Enquire
<27406	LR127269	PANEL - TAILGATE FINISH	LR127269 PANEL - TAILGATE FINISH Tailgate-Powered Upper / From: KG446857 / To: MG136101	-	1	Enquire
<27406	LR127268	PANEL - TAILGATE FINISH	LR127268 PANEL - TAILGATE FINISH With Conventional Tailgate / From: KG446857	-	1	Enquire
<27406	LR159588	PANEL - TAILGATE FINISH	LR159588 PANEL - TAILGATE FINISH Tailgate - Hands Free / From: MG136102	-	1	Enquire
<43400	LR075112	HANDLE - TAILGATE	LR075112 HANDLE - TAILGATE I/P Facia Contrast - Lunar/Glacia / From: FG000001	-	1	Enquire
<43400	LR075109	HANDLE - TAILGATE	LR075109 HANDLE - TAILGATE I/P Facia Contrast - Ebony/Ivory / From: FG000001	-	1	Enquire
HB1	LR001080	BOLT	LR001080 BOLT Hexagonal Head, M6 X 40MM / From: FG000001	-	2	Enquire
HB2	LR140069	BOLT	LR140069 BOLT From: MG130862	-	4	Enquire
HC1	LR001790	CLIP	LR001790 CLIP Tailgate Panel / From: FG000001	-	3	Enquire
HC2	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2 / From: KG446857	-	5	Enquire
HC3	LR123788	CLIP	LR123788 CLIP 7.8 X 0.65+2.55 / From: KG446857	-	-	Enquire
HC4	LR146846	CLIP - LANTERN	LR146846 CLIP - LANTERN From: MG140569	-	-	Enquire
HC5	LR109136	CLIP - LANTERN	LR109136 CLIP - LANTERN 8.5 x 0.7-1.6 + 2.5 Plastic / From: MG140569	-	4	Enquire
HN1	LR114151	NUT	LR114151 NUT 5 X 8 X 8 X 0.8-1.2 / From: FG000001 / To: HG351310	-	2	Enquire
HN1	LR089535	NUT - EXPANSION	LR089535 NUT - EXPANSION M6 / From: HG351311	-	2	Enquire
HS1	LR061124	SCREW	LR061124 SCREW 5 X 37.5MM / From: FG000001 / To: HG351310	-	2	Enquire
HS2	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: KG446857	-	2	Enquire
5F240	LR137725	DAMPER - DAMPING MASS	LR137725 DAMPER - DAMPING MASS From: KG446857 / To: MG133471	-	1	Enquire
5F240	LR139501	DAMPER - DAMPING MASS	LR139501 DAMPER - DAMPING MASS From: MG133472	-	1	Enquire
