Anti-Lock Braking System (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Anti-Lock Braking System (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR024165 BOLT $2.78 To Order
Photo Part No Description Price (each) Stock
EYC500320 CLIP $0.50 To Order
Photo Part No Description Price (each) Stock
RYH500540 NUT - SPECIAL $1.19 To Order
Photo Part No Description Price (each) Stock
RYP500900 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
RYP500920 SCREW $0.72 IN STOCK
Photo Part No Description Price (each) Stock
LR024198 BRACKET - ABS SENSOR MOUNTING $24.23 To Order
LR061664 BRACKET - ABS SENSOR MOUNTING $28.80 To Order
Photo Part No Description Price (each) Stock
LR062155 BRACKET - ABS SENSOR MOUNTING $10.67 To Order
Photo Part No Description Price (each) Stock
LR072107 SENSOR - ABS $162.35 To Order
LR114868 SENSOR - ABS $153.81 To Order
LR135144 SENSOR - ABS $144.70 To Order
Photo Part No Description Price (each) Stock
LR071974 SENSOR - TRIPMINDER $186.70 To Order
LR114879 SENSOR - ABS $169.06 To Order
Photo Part No Description Price (each) Stock
LR084560 MODULATOR - ABS $2,544.46 To Order
LR098365 MODULATOR - ABS $2,396.16 To Order
LR083665 MODULATOR - ABS $2,961.23 To Order
Photo Part No Description Price (each) Stock
LR028537 BRACKET - WIRING $3.86 To Order
LR028539 BRACKET - WIRING $3.98 To Order
Photo Part No Description Price (each) Stock
LR047449 BRACKET - ABS MODULATOR $31.40 To Order
Photo Part No Description Price (each) Stock
LR048562 BRACKET - ABS SENSOR MOUNTING $19.04 To Order
View All

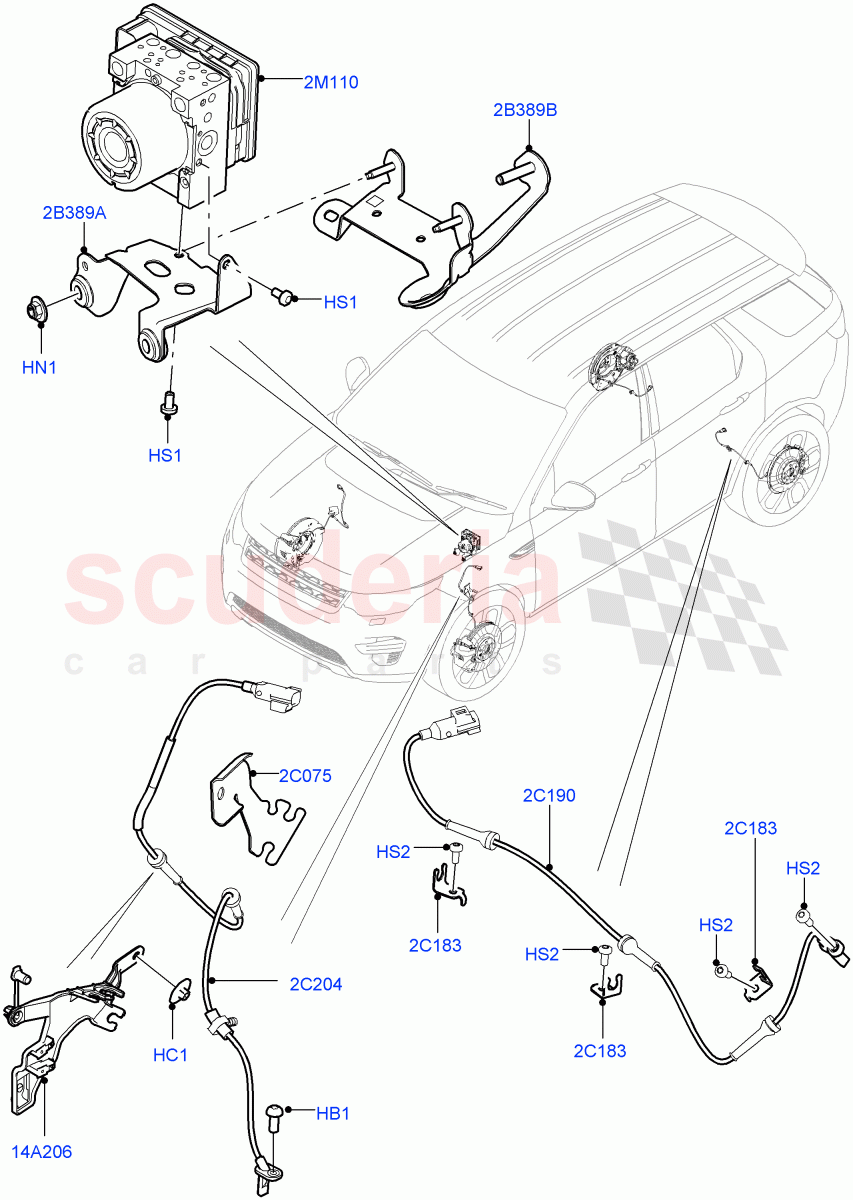

Anti-Lock Braking System (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR024165
BOLT
M5 X 12MM, Torx / From: GT000001 		$2.78 2
HC1 EYC500320
CLIP
5.0MM / From: GT000001 		$0.50 1
HN1 RYH500540
NUT - SPECIAL
M6 / From: GT000001 		$1.19 2
HS1 RYP500900
SCREW
M6 x 12MM, Torx / From: GT000001 		$0.63 3
HS2 RYP500920
SCREW
M6 X 14MM, Torx / From: GT000001
IN STOCK 		$0.72 2
2B389A LR047449
BRACKET - ABS MODULATOR
ABS Modulator, Upper / From: GT000001 		$31.40 1
2B389B LR048562
BRACKET - ABS SENSOR MOUNTING
ABS Modulator, Lower / From: GT000001 		$19.04 1
2C075 LR024198
BRACKET - ABS SENSOR MOUNTING
RH, Front / From: GT000001 		$24.23 1
2C075 LR061664
BRACKET - ABS SENSOR MOUNTING
LH, Front / From: GT000001 		$28.80 1
2C183 LR062155
BRACKET - ABS SENSOR MOUNTING
Rear, RH/LH / From: GT000001 		$10.67 6
2C190 LR072107
SENSOR - ABS
ABS, Rear / From: GT000001 / To: JT999999 		$162.35 2
2C190 LR114868
SENSOR - ABS
ABS, Rear / From: KT000001 		$153.81 2
2C190 LR135144
SENSOR - ABS
Electric Engine Battery-PHEV / ABS, Rear / From: LT000001 		$144.70 2
2C204 LR071974
SENSOR - TRIPMINDER
ABS, Front / From: GT000001 / To: KT999999 		$186.70 2
2C204 LR114879
SENSOR - ABS
ABS, Front / From: LT000001 		$169.06 2
2M110 LR084560
MODULATOR - ABS
ABS / From: GT000001 / To: GT999999 		$2,544.46 1
2M110 LR098365
MODULATOR - ABS
ABS / From: JT000001 		$2,396.16 1
2M110 LR083665
MODULATOR - ABS
ABS / From: HT000001 / To: HT999999 		$2,961.23 1
14A206 LR028537
BRACKET - WIRING
LH, Front / From: GT000001 		$3.86 1
14A206 LR028539
BRACKET - WIRING
RH, Front / From: GT000001 		$3.98 1
