Rear Door Lock Controls (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Door Lock Controls (Changsu (China)) ((V) FROMFG000001)

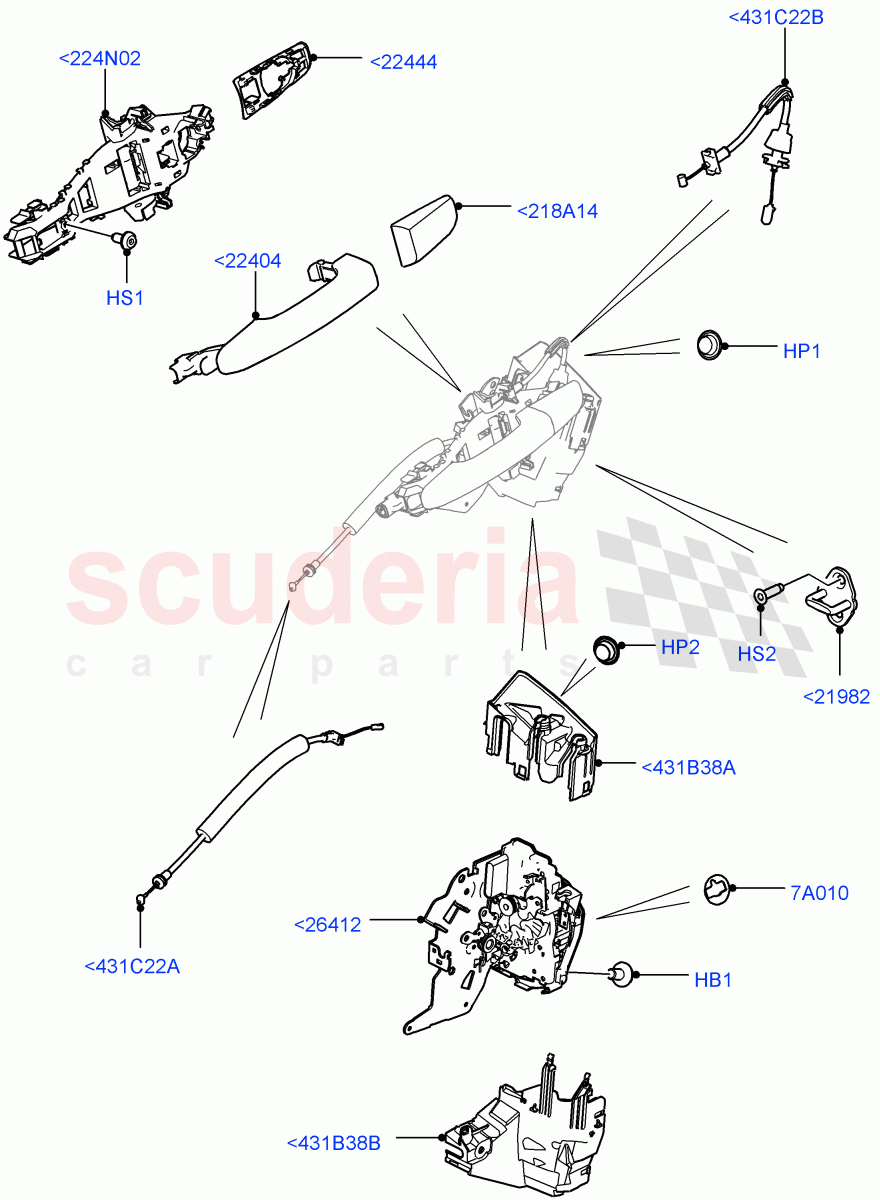

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038526 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR000804 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR058114 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
RYP500700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR042467 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR059989 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR059010 STRIKER - DOOR LOCKING MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR061200 HANDLE - DOOR - OUTER Enquire To Order
LR061201 HANDLE - DOOR - OUTER Enquire To Order
LR055913 HANDLE - DOOR - OUTER Enquire To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034461 GASKET - DOOR HANDLE Enquire To Order
LR087704 GASKET - DOOR HANDLE Enquire To Order
LR117080 GASKET - DOOR HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
LR063608 LATCH - REAR DOOR Enquire To Order
LR063622 LATCH - REAR DOOR Enquire To Order
LR070430 LATCH - REAR DOOR Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025406 CAP - HANDLE Enquire To Order
LR038477 CAP - HANDLE Enquire To Order
LR055902 CAP - HANDLE Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR070989 REINFORCEMENT - DOOR HANDLE Enquire To Order
LR070990 REINFORCEMENT - DOOR HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
LR058115 COVER - LATCH Enquire To Order
LR058117 COVER - LATCH Enquire To Order
LR070443 COVER - LATCH Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR058116 COVER - LATCH Enquire To Order
LR058118 COVER - LATCH Enquire To Order
LR070444 COVER - LATCH Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR059011 CABLE - DOOR LATCH Enquire To Order
LR127330 CABLE - DOOR LATCH Enquire To Order
Photo Part No Description Price (each) Stock
LR059012 CABLE - DOOR LATCH Enquire To Order
View All
Rear Door Lock Controls (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<218A14 LR025406
CAP - HANDLE
Body Coloured Exterior Door Handle / Primed, RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR038477
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Polaris White/Fuji White (1AA) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR055902
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Quartzite/Kaikoura Stone (1AP) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR038481
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Firenze Red (868) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR053338
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Zanzibar (872) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR046310
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Scotia Grey (943) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR038475
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Corris Grey (873) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR069725
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Yulong White (2201) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR053340
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Mauritius Blue (864) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR038486
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Santorini Black (820) / RH/LH / From: FG000001 / To: KG446856 		- 2 Enquire
<218A14 LR046252
CAP - HANDLE
Body Coloured/Noble Ext Door Handle, Dark Sapphire Blue/Loire Blue (1AM) / RH/LH / From: GG343240 / To: KG446856 		- 2 Enquire
<218A14 LR025406
CAP - HANDLE
Primed, RH/LH / From: KG446857 		- 2 Enquire
<224N02 LR070989
REINFORCEMENT - DOOR HANDLE
RH / From: FG000001 		- 1 Enquire
<224N02 LR070990
REINFORCEMENT - DOOR HANDLE
LH / From: FG000001 		- 1 Enquire
<431B38A LR058115
COVER - LATCH
Keyless Entry/Start - Passive / RH, Upper / From: FG000001 / To: MG140568 		- 1 Enquire
<431B38A LR058117
COVER - LATCH
Keyless Entry/Start - Passive / LH, Upper / From: FG000001 / To: MG140568 		- 1 Enquire
<431B38A LR070443
COVER - LATCH
With Keyless Start / RH, Upper / From: FG000001 / To: MG140568 		- 1 Enquire
<431B38A LR070443
COVER - LATCH
RH, Upper / From: MG140569 		- 1 Enquire
<431B38A LR070459
COVER - LATCH
With Keyless Start / LH, Upper / From: FG000001 / To: MG140568 		- 1 Enquire
<431B38A LR070459
COVER - LATCH
LH, Upper / From: MG140569 		- 1 Enquire
<431B38B LR058116
COVER - LATCH
Keyless Entry/Start - Passive / RH, Lower / From: FG000001 / To: MG140568 		- 1 Enquire
<431B38B LR058118
COVER - LATCH
Keyless Entry/Start - Passive / LH, Lower / From: FG000001 / To: MG140568 		- 1 Enquire
<431B38B LR070444
COVER - LATCH
With Keyless Start / RH, Lower / From: FG000001 / To: MG140568 		- 1 Enquire
<431B38B LR070444
COVER - LATCH
RH, Lower / From: MG140569 		- 1 Enquire
<431B38B LR070460
COVER - LATCH
With Keyless Start / LH, Lower / From: FG000001 / To: MG140568 		- 1 Enquire
<431B38B LR070460
COVER - LATCH
LH, Lower / From: MG140569 		- 1 Enquire
<431C22A LR059011
CABLE - DOOR LATCH
Door Release Control, Internal, RH/LH / From: FG000001 / To: KG446856 		- 1 Enquire
<431C22A LR127330
CABLE - DOOR LATCH
Door Release Control, Internal, RH/LH / From: KG446857 		- 1 Enquire
<431C22B LR059012
CABLE - DOOR LATCH
Outside Door Release Handle To Latch, RH/LH / From: FG000001 		- 1 Enquire
<21982 LR059010
STRIKER - DOOR LOCKING MECHANISM
RH/LH / From: FG000001 		- 2 Enquire
<22404 LR061200
HANDLE - DOOR - OUTER
Body Coloured Exterior Door Handle, Keyless Entry/Start - Passive / Primed, RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR061201
HANDLE - DOOR - OUTER
Body Coloured Exterior Door Handle, With Keyless Start / Primed, RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR055913
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Kaikoura Stone (997), Keyless Entry/Start - Passive / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR055914
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Firenze Red (868), Keyless Entry/Start - Passive / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR046327
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Keyless Entry/Start - Passive, Scotia Grey (943) / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR056188
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Corris Grey (873), Keyless Entry/Start - Passive / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR072371
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Keyless Entry/Start - Passive, Yulong White (2201) / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR056232
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Keyless Entry/Start - Passive, Zanzibar (872) / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR056233
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Keyless Entry/Start - Passive, Mauritius Blue (864) / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR055921
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Keyless Entry/Start - Passive, Polaris White/Fuji White (1AA) / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR055916
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Keyless Entry/Start - Passive, Santorini Black (820) / RH/LH / From: FG000001 / To: MG140568 		- 2 Enquire
<22404 LR046326
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, Dark Sapphire Blue/Loire Blue (1AM), Keyless Entry/Start - Passive / RH/LH / From: GG343240 / To: MG140568 		- 2 Enquire
<22404 LR106321
HANDLE - DOOR - OUTER
Body Coloured/Noble Ext Door Handle, With Keyless Start / Primed, RH/LH / From: HG379388 / To: MG140568 		- 1 Enquire
<22404 LR098256
HANDLE - DOOR - OUTER
Bts Racing Green/Aintree Green(1AL), Keyless Entry/Start - Passive / Primed, RH/LH / From: KG446857 		- 2 Enquire
<22404 LR112362
HANDLE - DOOR - OUTER
Gallium/Silicon Silver (1BN), Keyless Entry/Start - Passive / RH/LH / From: LG124185 		- 4 Enquire
<22404 LR112353
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive, Polaris White/Fuji White (1AA) / RH/LH, White / From: MG140569 		- 4 Enquire
<22404 LR112356
HANDLE - DOOR - OUTER
Italian Racing Red/Firenze Red(1AF), Keyless Entry/Start - Passive / RH/LH / From: MG140569 		- 4 Enquire
<22404 LR112361
HANDLE - DOOR - OUTER
Flores Blue/Byron Blue (1CK), Keyless Entry/Start - Passive / RH/LH / From: MG140569 		- 4 Enquire
<22404 LR112363
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive, Ultimate Black/Santorini Black(1AG) / RH/LH / From: MG140569 		- 4 Enquire
<22444 LR034461
GASKET - DOOR HANDLE
RH/LH / From: FG000001 / To: HG347883 		- 2 Enquire
<22444 LR087704
GASKET - DOOR HANDLE
RH/LH / From: HG347884 / To: KG425225 		- 4 Enquire
<22444 LR117080
GASKET - DOOR HANDLE
RH/LH / From: KG425226 		- 1 Enquire
<26412 LR063608
LATCH - REAR DOOR
Keyless Entry/Start - Passive / RH / From: FG000001 / To: HG379387 		- 1 Enquire
<26412 LR063622
LATCH - REAR DOOR
Keyless Entry/Start - Passive / LH / From: FG000001 / To: HG379387 		- 1 Enquire
<26412 LR070430
LATCH - REAR DOOR
With Keyless Start / RH / From: FG000001 / To: MG140568 		- 1 Enquire
<26412 LR070432
LATCH - REAR DOOR
With Keyless Start / LH / From: FG000001 / To: MG140568 		- 1 Enquire
<26412 LR078744
LATCH - REAR DOOR
Keyless Entry/Start - Passive / RH / From: HG379388 / To: MG140568 		- 1 Enquire
<26412 LR078750
LATCH - REAR DOOR
Keyless Entry/Start - Passive / LH / From: HG379388 / To: MG140568 		- 1 Enquire
<26412 LR070432
LATCH - REAR DOOR
LH / From: MG140569 		- 1 Enquire
<26412 LR070430
LATCH - REAR DOOR
RH / From: MG140569 		- 1 Enquire
HB1 LR038526
BOLT
M6 X 11MM / From: FG000001 		- 1 Enquire
HP1 LR000804
PLUG
10 X 0.75 X 1.0 / From: FG000001 		- 4 Enquire
HP2 LR058114
PLUG - BLANKING
Seal / From: FG000001 		- 1 Enquire
HS1 RYP500700
SCREW
M5 X 12MM, Torx / From: FG000001 		- 1 Enquire
HS2 LR042467
BOLT
M8 X 25MM / From: FG000001 		- 2 Enquire
7A010 LR059989
PLUG - BLANKING
RH/LH / From: FG000001 		- 2 Enquire
