Turbocharger (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Turbocharger (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High)

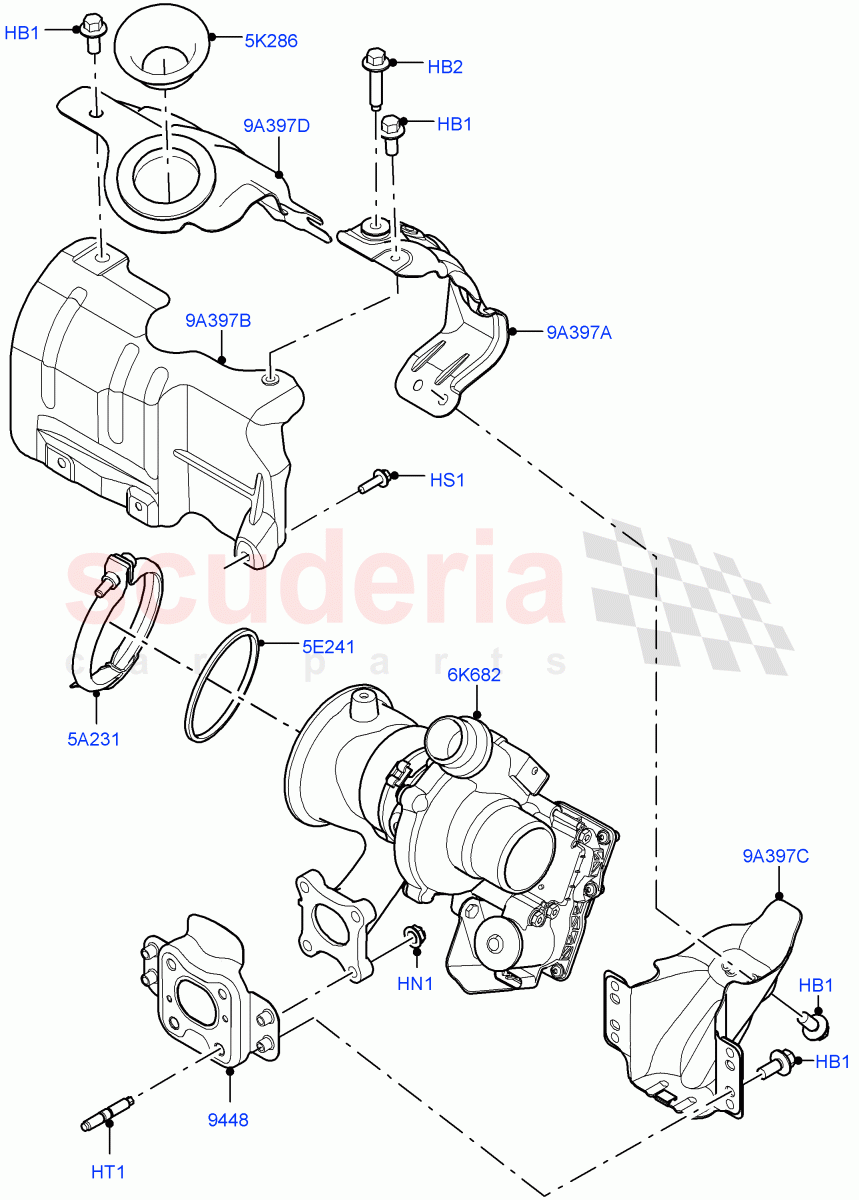

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092112	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092114	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125371	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106799	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139516	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153790	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125372	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125540	HEATSHIELD - CAM COVER	Enquire	To Order
	LR138358	HEATSHIELD - CAM COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125373	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125627	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield / From: KG446856	-	10	Enquire
HB2	LR091557	BOLT	LR091557 BOLT Heat Shield, M6 X 25MM / From: KG446857	-	1	Enquire
HN1	LR092112	NUT	LR092112 NUT M8, Turbocharger / From: KG446856	-	4	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM, Shield / From: KG446857	-	3	Enquire
HT1	LR092114	STUD	LR092114 STUD M8 X 17.5 + M8 X 20, Turbocharger / From: KG446856	-	4	Enquire
5A231	LR106799	CLAMP - EXHAUST	LR106799 CLAMP - EXHAUST Turbocharger Outlet / From: KG446856	-	1	Enquire
5E241	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER Turbocharger Outlet / From: KG446856	-	1	Enquire
5K286	LR139516	HEAT SHIELD	LR139516 HEAT SHIELD Insert / From: KG446857	-	1	Enquire
6K682	LR153790	TURBOCHARGER	LR153790 TURBOCHARGER	-	1	Enquire
9A397A	LR125372	HEAT SHIELD - TURBOCHARGER	LR125372 HEAT SHIELD - TURBOCHARGER Upper / From: KG446856	-	1	Enquire
9A397B	LR125540	HEATSHIELD - CAM COVER	LR125540 HEATSHIELD - CAM COVER Engine Side / From: KG446856 / To: LG124184	-	1	Enquire
9A397B	LR138358	HEATSHIELD - CAM COVER	LR138358 HEATSHIELD - CAM COVER Engine Side / From: LG124185	-	1	Enquire
9A397C	LR125373	HEAT SHIELD - TURBOCHARGER	LR125373 HEAT SHIELD - TURBOCHARGER Lower / From: KG446856	-	1	Enquire
9A397D	LR125627	HEAT SHIELD - TURBOCHARGER	LR125627 HEAT SHIELD - TURBOCHARGER From: KG446856	-	1	Enquire
9448	LR125371	GASKET - EXHAUST MANIFOLD	LR125371 GASKET - EXHAUST MANIFOLD From: KG446856	-	1	Enquire
