Name: Rear Exhaust System (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China)) ((V) FROMLG000001)
Rating: 5.0 (1 reviews)

View All

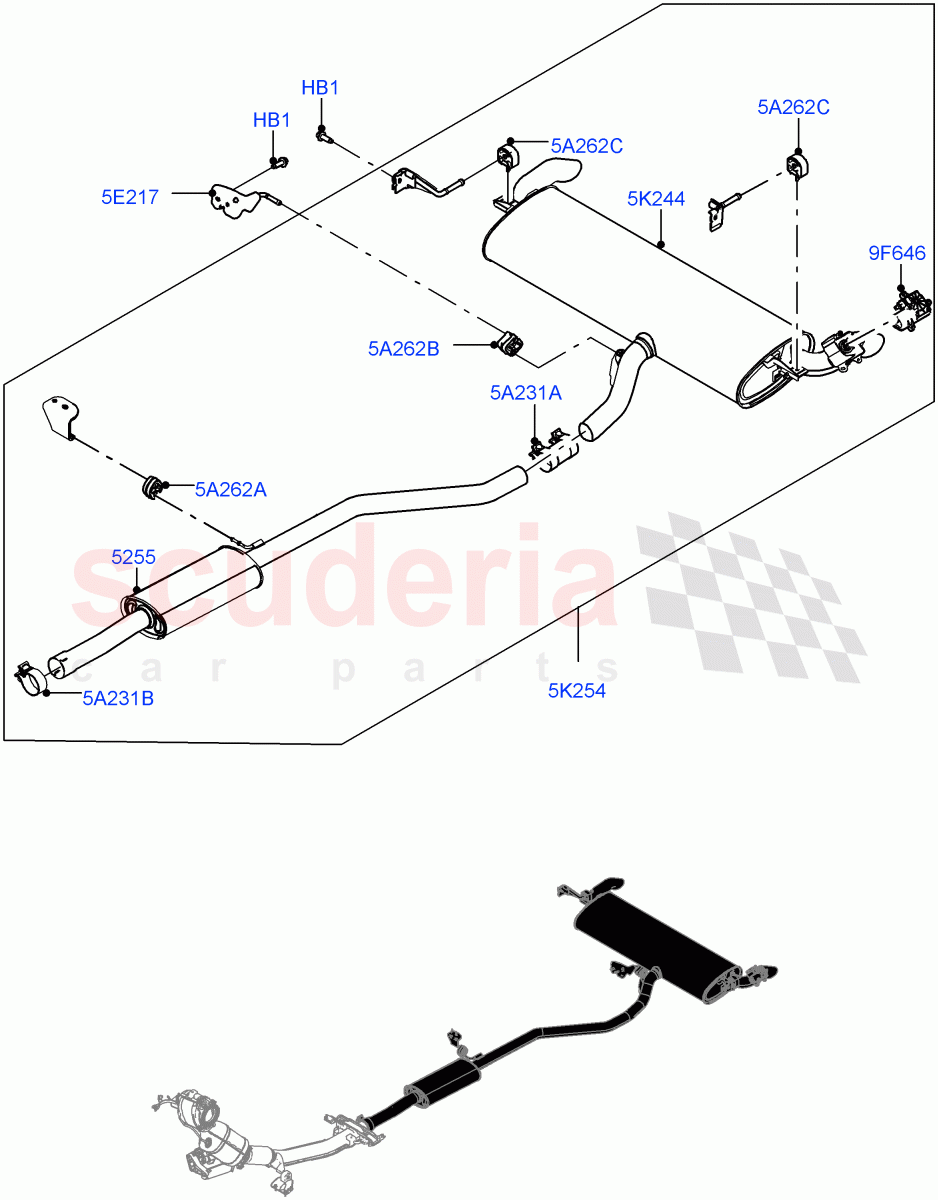

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133729	PIPE - EXHAUST	$466.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138313	BRACKET - EXHAUST PIPE MOUNTING	$47.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139474	MUFFLER - REAR	$1,143.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135113	MUFFLER - REAR	$1,410.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137008	ACTUATOR - ELECTRONIC EXHAUST VALVE	$290.29	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077700	CLAMP - EXHAUST	$43.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125106	INSULATOR - RUBBER	$30.81	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: KG446857	$0.99	6
5A231A	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Rear / From: KG446857	$81.53	1
5A231B	LR077700	CLAMP - EXHAUST	LR077700 CLAMP - EXHAUST 65MM, Front / From: KG446857	$43.01	1
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front / From: KG446857	$11.29	1
5A262B	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER Middle / From: KG446857	$23.23	1
5A262C	LR125106	INSULATOR - RUBBER	LR125106 INSULATOR - RUBBER For Rear Muffler / From: KG446857	$30.81	2
5E217	LR138313	BRACKET - EXHAUST PIPE MOUNTING	LR138313 BRACKET - EXHAUST PIPE MOUNTING Middle / From: KG446857	$47.06	1
5K244	LR139474	MUFFLER - REAR	LR139474 MUFFLER - REAR From: KG446857	$1,143.61	1
5K254	LR135113	MUFFLER - REAR	LR135113 MUFFLER - REAR From: KG446857	$1,410.37	1
9F646	LR137008	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR137008 ACTUATOR - ELECTRONIC EXHAUST VALVE From: KG446857	$290.29	1
5255	LR133729	PIPE - EXHAUST	LR133729 PIPE - EXHAUST Front / From: KG446857	$466.81	1

Rear Exhaust System (1.5L Aj20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China)) ((V)...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]
