Oil Pan/Oil Level Indicator (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Oil Pan/Oil Level Indicator (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)

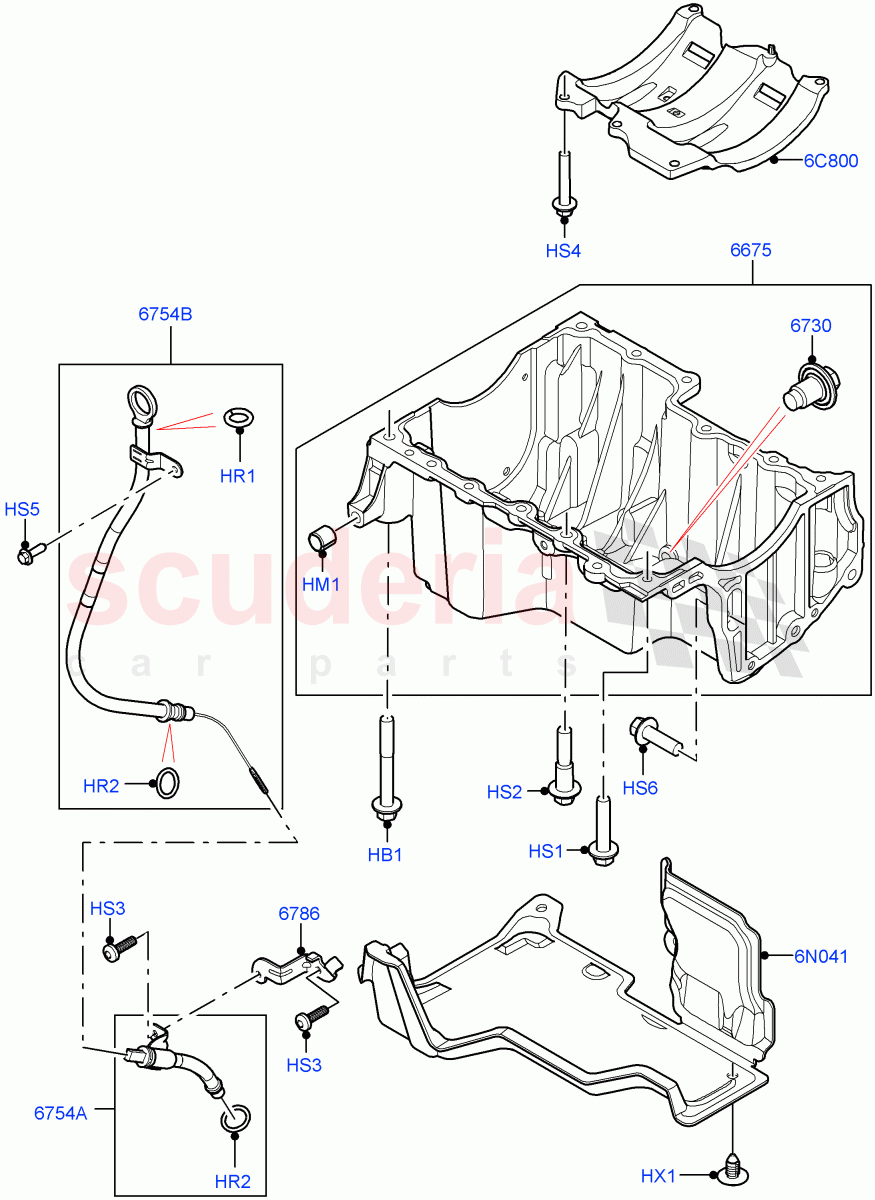

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR126056	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126156	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139074	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139073	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125377	PAN - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126041	BRACKET - OIL TUBE	Enquire	To Order
	LR135848	BRACKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125376	TUBE - OIL EXTRACTION	Enquire	To Order
	LR135849	TUBE - OIL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135841	TUBE - OIL LEVEL INDICATOR	Enquire	To Order
	LR144959	TUBE - OIL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126043	TRAY - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125444	SHIELD - ENGINE PROTECTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR126056	BOLT	LR126056 BOLT M10 X 60MM, Oil Pan / From: KG446856	-	1	Enquire
HM1	LR126156	DOWEL - PIN	LR126156 DOWEL - PIN Pin - Dowell / From: KG446856	-	1	Enquire
HR1	LR139074	O-RING	LR139074 O-RING Oil Level Indicator / From: KG446857	-	1	Enquire
HR2	LR139073	O-RING	LR139073 O-RING Oil Tube / From: KG446857	-	2	Enquire
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm, Oil Pan / From: KG446856	-	10	Enquire
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm, Oil Pan / From: KG446856	-	2	Enquire
HS3	LR073720	SCREW	LR073720 SCREW M6 X 20MM, Oil Tube Bracket / From: KG446856	-	2	Enquire
HS4	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: KG446857	-	5	Enquire
HS5	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: KG446857	-	1	Enquire
HS6	LR073724	SCREW	LR073724 SCREW M8 X 25MM, Timing Chain Lower Cover / From: KG446857	-	1	Enquire
HX1	LR126160	PIN - FASTENING	LR126160 PIN - FASTENING 6.5 x 6, Insulator / From: KG446857	-	4	Enquire
6C800	LR126043	TRAY - OIL	LR126043 TRAY - OIL From: KG446856	-	1	Enquire
6N041	LR125444	SHIELD - ENGINE PROTECTING	LR125444 SHIELD - ENGINE PROTECTING Oil Pan / From: KG446856	-	1	Enquire
6675	LR125377	PAN - ENGINE OIL	LR125377 PAN - ENGINE OIL From: KG446856	-	1	Enquire
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN Includes Seal, M14 X 21 / From: KG446856	-	1	Enquire
6754A	LR125376	TUBE - OIL EXTRACTION	LR125376 TUBE - OIL EXTRACTION Lower / From: KG446857 / To: KG999999	-	1	Enquire
6754A	LR135849	TUBE - OIL LEVEL INDICATOR	LR135849 TUBE - OIL LEVEL INDICATOR Lower / From: LG000001	-	1	Enquire
6754B	LR135841	TUBE - OIL LEVEL INDICATOR	LR135841 TUBE - OIL LEVEL INDICATOR Upper / From: KG446856 / To: LG124184	-	1	Enquire
6754B	LR144959	TUBE - OIL LEVEL INDICATOR	LR144959 TUBE - OIL LEVEL INDICATOR Upper / From: LG124185	-	1	Enquire
6786	LR126041	BRACKET - OIL TUBE	LR126041 BRACKET - OIL TUBE Oil Tube / From: KG446856 / To: KG999999	-	1	Enquire
6786	LR135848	BRACKET - OIL TUBE	LR135848 BRACKET - OIL TUBE Oil Tube / From: LG000001	-	1	Enquire
