Water Pump (1.5L Aj20P3 Petrol High Phev, Changsu (China), 1.5L Aj20P3 Petrol High)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Water Pump (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR071777 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP Enquire To Order
Photo Part No Description Price (each) Stock
RYP500200 SCREW Enquire To Order
LR124266 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR136284 PUMP - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR125405 PULLEY - WATER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR125625 SHIELD - PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR125626 SHIELD - PROTECTION Enquire To Order
LR140739 SHIELD - PROTECTION Enquire To Order
View All

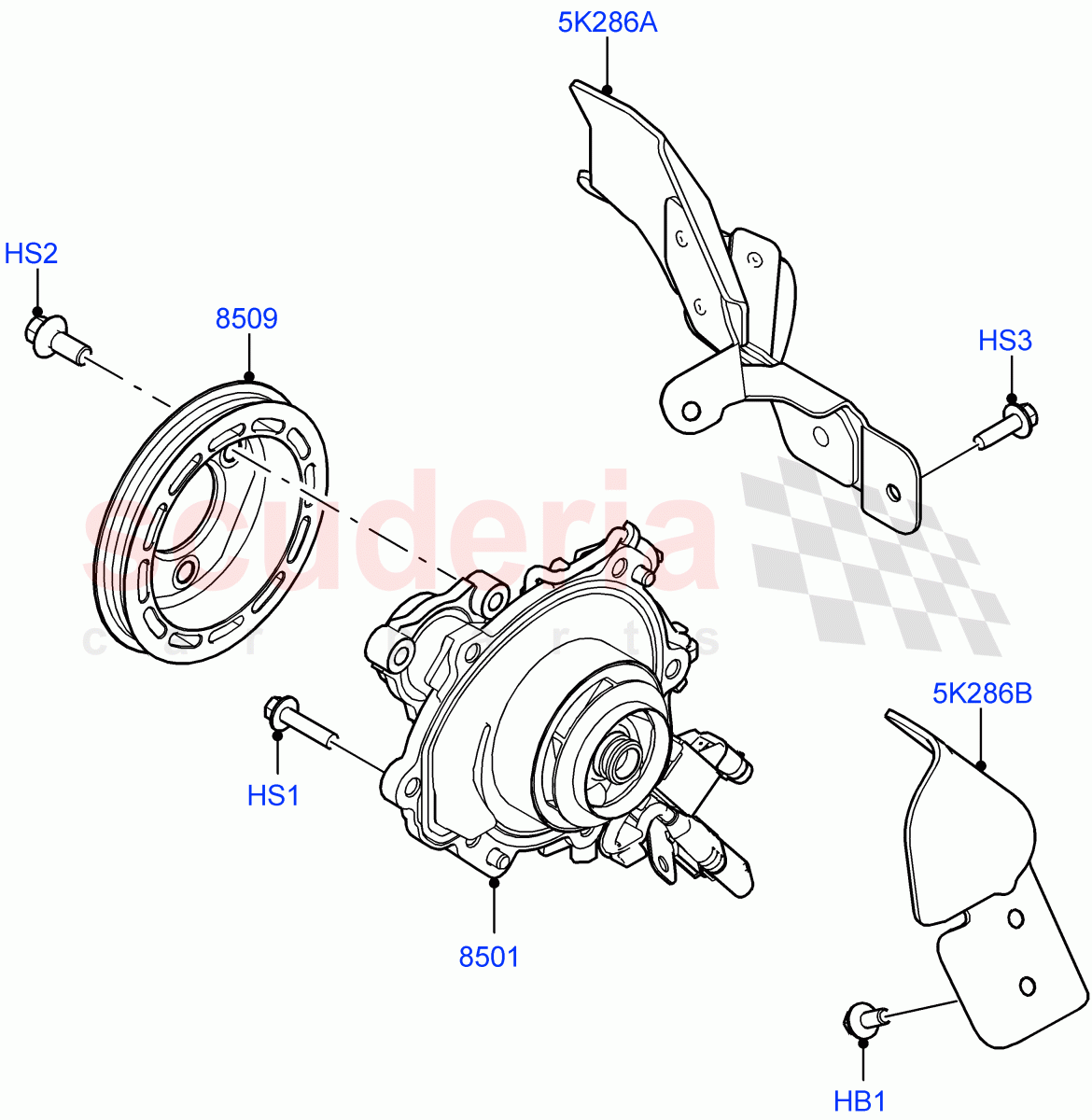

Water Pump (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR071777
BOLT - HEX.HEAD
Heatshield, Lower, M6 X 14MM / From: KG446856 		- 2 Enquire
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM, Water Pump / From: KG446856 		- 6 Enquire
HS2 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM, Pulley / From: KG446856 		- 3 Enquire
HS3 RYP500200
SCREW
Heatshield, Hexagonal Head, M6 X 20MM, Upper / To: KG446856 		- 2 Enquire
HS3 LR124266
SCREW
Heatshield, M6 X 20MM, Upper / From: KG446857 		- 2 Enquire
5K286A LR125625
SHIELD - PROTECTION
Upper / From: KG446856 		- 1 Enquire
5K286B LR125626
SHIELD - PROTECTION
Lower / From: KG446856 / To: LG124184 		- 1 Enquire
5K286B LR140739
SHIELD - PROTECTION
Lower / From: LG124185 		- 1 Enquire
8501 LR136284
PUMP - WATER
From: KG446856 		- 1 Enquire
8509 LR125405
PULLEY - WATER PUMP
From: KG446856 		- 1 Enquire
