Name: Intercooler/Air Ducts And Hoses (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001)
Rating: 4.0 (1 reviews)

Intercooler/Air Ducts And Hoses (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Intercooler/Air Ducts And Hoses (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol...

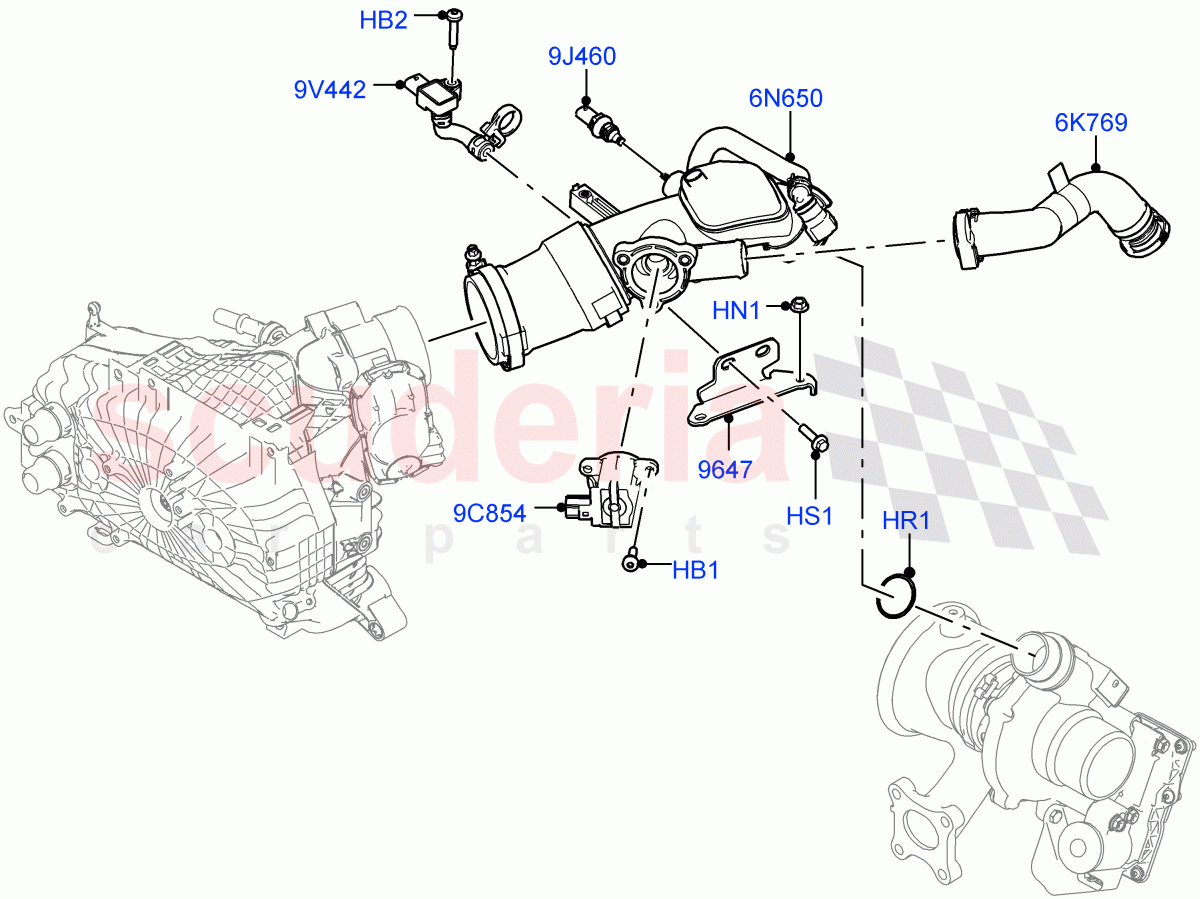

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033002	BOLT AND WASHER - TORX HEAD	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042803	BOLT	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR164819	SEAL	$5.25	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125461	BRACKET - AIR DUCT SUPPORT	$20.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125624	BYPASS VALVE TO INTERCOOLER	$106.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125462	HOSE - COMPRESSED AIR	$123.40	To Order
	LR144077	HOSE - COMPRESSED AIR	$123.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093490	ACTUATOR - SUPERCHARGER BYPASS	$269.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$46.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR171951	SENSOR - AIR CHARGE	$46.19	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR033002	BOLT AND WASHER - TORX HEAD	LR033002 BOLT AND WASHER - TORX HEAD Actuator, M6 X 20.5, Torx / From: LH000001	$1.45	3
HB2	LR042803	BOLT IN STOCK	LR042803 BOLT M6 x 28MM, Sensor - Air Charge Temperature, Torx / From: LH000001 IN STOCK	$1.19	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Bracket, Hexagonal Head, M6 / From: LH000001 IN STOCK	$1.45	2
HR1	LR164819	SEAL	LR164819 SEAL Turbocharger Outlet / From: LH000001	$5.25	1
HS1	FS106256	SCREW	FS106256 SCREW Bracket, M6 x 25MM / From: LH000001	$0.42	2
6K769	LR125624	BYPASS VALVE TO INTERCOOLER	LR125624 BYPASS VALVE TO INTERCOOLER From: LH000001	$106.99	1
6N650	LR125462	HOSE - COMPRESSED AIR	LR125462 HOSE - COMPRESSED AIR Hose Air From Turbocharger To Inlet Manifold / From: LH000001 / To: LH879094	$123.40	1
6N650	LR144077	HOSE - COMPRESSED AIR	LR144077 HOSE - COMPRESSED AIR Hose Air From Turbocharger To Inlet Manifold / From: LH879095	$123.40	1
9C854	LR093490	ACTUATOR - SUPERCHARGER BYPASS	LR093490 ACTUATOR - SUPERCHARGER BYPASS From: LH000001	$269.70	1
9J460	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Sensor - Air Charge Temperature / From: LH000001	$46.10	1
9V442	LR171951	SENSOR - AIR CHARGE	LR171951 SENSOR - AIR CHARGE From: LH000001	$46.19	1
9647	LR125461	BRACKET - AIR DUCT SUPPORT	LR125461 BRACKET - AIR DUCT SUPPORT Air Duct Support / From: LH000001	$20.34	1
