Inlet Manifold (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Inlet Manifold (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)

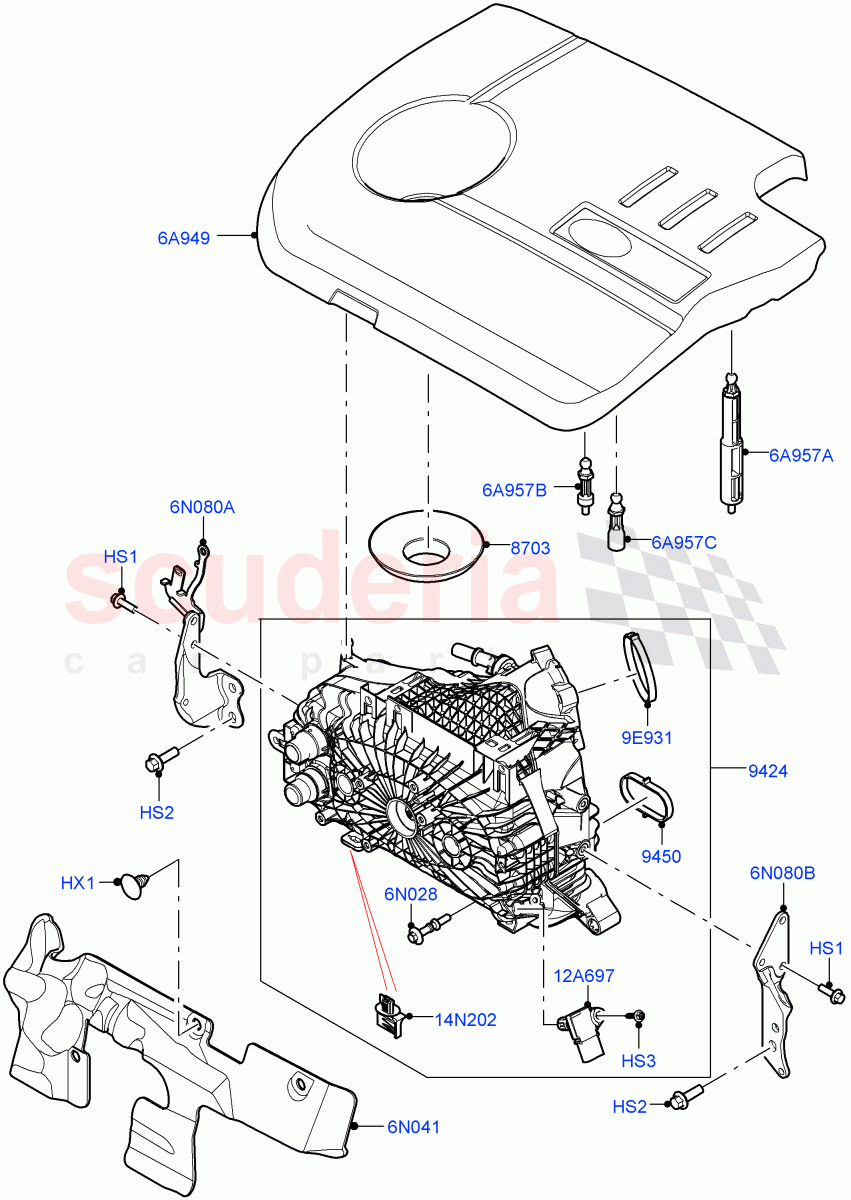

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125565	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125368	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146873	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125369	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125445	INSULATOR - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125370	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130316	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125464	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125487	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125483	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126047	BRACKET - MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126046	BRACKET - MANIFOLD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR073724	SCREW	LR073724 SCREW M8 X 25MM, To Cylinder Head / From: KG446856	-	4	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: KG446856	-	4	Enquire
HS3	LR130401	SCREW	LR130401 SCREW Hexagonal Head, M5 x 20MM / From: KG446856	-	1	Enquire
HX1	LR126160	PIN - FASTENING	LR126160 PIN - FASTENING 6.5 x 6 / From: KG446856	-	3	Enquire
6A949	LR146873	COVER	LR146873 COVER From: KG446857	-	1	Enquire
6A957A	LR125487	PIN	LR125487 PIN Rear LH / From: KG446856	-	1	Enquire
6A957B	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER Rear RH / From: KG446856	-	1	Enquire
6A957C	LR125483	STUD - BALL	LR125483 STUD - BALL LH Front / From: KG446856	-	1	Enquire
6N028	LR125369	BOLT - SPECIAL	LR125369 BOLT - SPECIAL Manifold To Cylinder Head / From: KG446856	-	4	Enquire
6N041	LR125445	INSULATOR - CYLINDER HEAD	LR125445 INSULATOR - CYLINDER HEAD From: KG446856	-	1	Enquire
6N080A	LR126047	BRACKET - MANIFOLD	LR126047 BRACKET - MANIFOLD RH / From: KG446856	-	1	Enquire
6N080B	LR126046	BRACKET - MANIFOLD	LR126046 BRACKET - MANIFOLD LH / From: KG446856	-	1	Enquire
9E931	LR125370	GASKET - THROTTLE	LR125370 GASKET - THROTTLE Throttle Body To Intake / From: KG446856	-	1	Enquire
12A697	LR130316	SENSOR - AIR TEMPERATURE & PRESSURE	LR130316 SENSOR - AIR TEMPERATURE & PRESSURE From: KG446856	-	1	Enquire
14N202	LR125464	CLIP	LR125464 CLIP From: KG446856	-	1	Enquire
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: KG446856	-	1	Enquire
9424	LR125565	MANIFOLD - INLET	LR125565 MANIFOLD - INLET From: KG446856	-	1	Enquire
9450	LR125368	GASKET - INTAKE MANIFOLD	LR125368 GASKET - INTAKE MANIFOLD Inlet Manifold / From: KG446856	-	3	Enquire
