Land Rover Defender (2007-2016) - Clutch Master Cylinder & Pipes ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
STC500100 MASTER CYLINDER Enquire To Order
Photo Part No Description Price (each) Stock
STC500090 KIT - CLUTCH MASTER CYLINDER REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
STC100440 CAP Enquire To Order
Photo Part No Description Price (each) Stock
NT605042 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
NY605042 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
ANR5308 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
FS108307L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
NY108041 Nut - Hex. Enquire To Order
Photo Part No Description Price (each) Stock
SYG500020 BOLT - BANJO Enquire To Order
Photo Part No Description Price (each) Stock
233220 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
STG500200 TUBE - CLUTCH Enquire To Order
STG500190 TUBE - CLUTCH Enquire To Order
STG500230 TUBE - CLUTCH Enquire To Order
Photo Part No Description Price (each) Stock
NTC1175 CLIP Enquire To Order
NTC1175 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
NT607042 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
WF600071L WASHER - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
STH500060 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
MSK500020 SWITCH - FUEL SHUT-OFF Enquire To Order
Photo Part No Description Price (each) Stock
UUG500040 VALVE - CONTROL Enquire To Order
LR068982 VALVE - CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
UGN500020 ADAPTOR Enquire To Order
LR031188 ADAPTOR Enquire To Order
LR068981 ADAPTOR Enquire To Order
Photo Part No Description Price (each) Stock
SYG500030 BANJO Enquire To Order
Photo Part No Description Price (each) Stock
STD500020 DAMPER Enquire To Order
View All

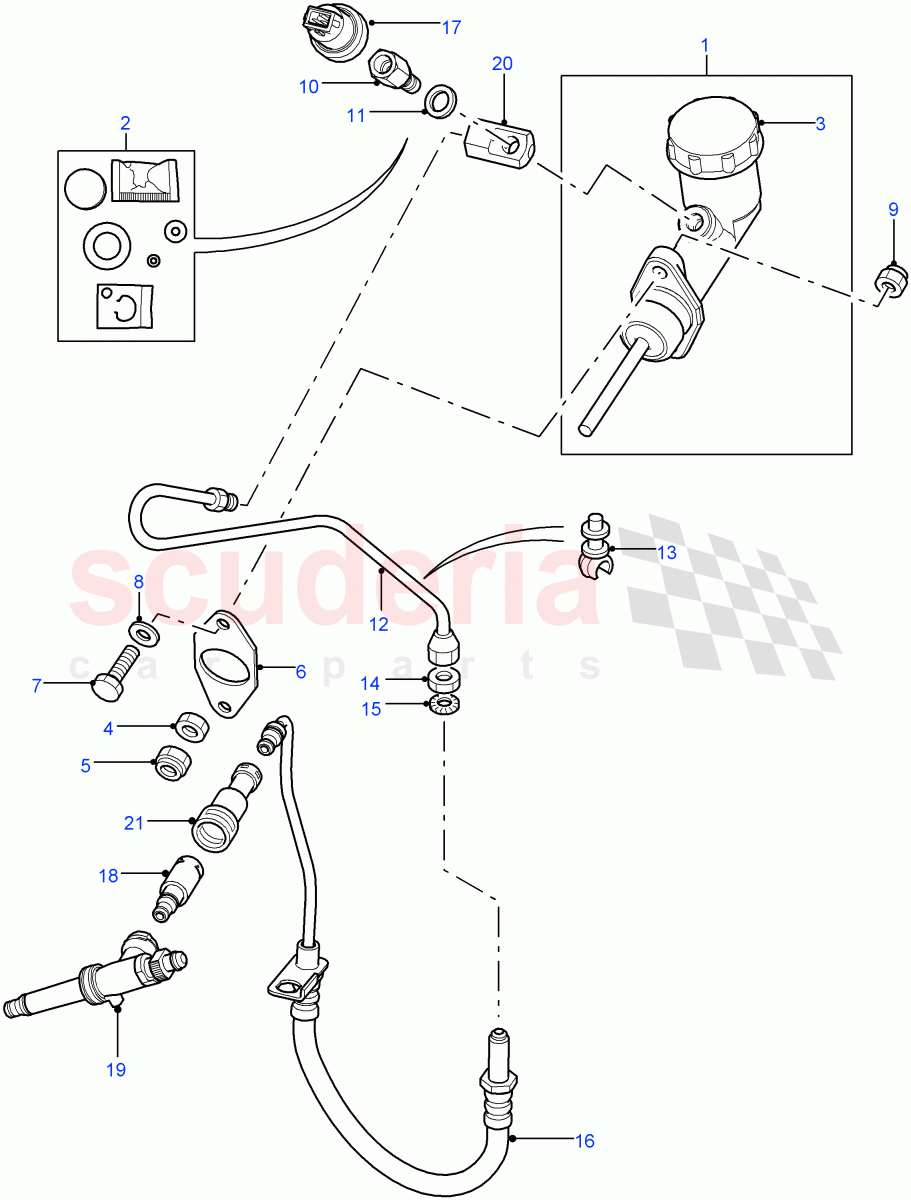

Clutch Master Cylinder & Pipes ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 STC500100
MASTER CYLINDER 		- 1 Enquire
2 STC500090
KIT - CLUTCH MASTER CYLINDER REPAIR 		- 1 Enquire
3 STC100440
CAP 		- 1 Enquire
4 NT605042
NUT - FLANGED
5/16UNF 		- 2 Enquire
5 NY605042
NUT - FLANGED 		- 1 Enquire
6 ANR5308
GASKET
Master cylinder to pedal box 		- 1 Enquire
7 FS108307L
SCREW
Flanged Head, M8 X 30MM 		- 2 Enquire
8 WA108056
WASHER
8MM 		- 4 Enquire
9 NY108041
Nut - Hex.
M8, nyloc 		- 2 Enquire
10 SYG500020
BOLT - BANJO 		- 1 Enquire
11 233220
GASKET 		- 1 Enquire
12 STG500200
TUBE - CLUTCH
RHD / To: 7A750431 		- 1 Enquire
12 STG500190
TUBE - CLUTCH
LHD 		- 1 Enquire
12 STG500230
TUBE - CLUTCH
RHD / From: 7A750432 		- 1 Enquire
13 NTC1175
CLIP
RHD 		- 2 Enquire
13 NTC1175
CLIP
LHD 		- 1 Enquire
14 NT607042
NUT - FLANGED
7/16UNF 		- 2 Enquire
15 WF600071L
WASHER - LOCKING 		- 2 Enquire
16 STH500060
HOSE 		- 1 Enquire
17 MSK500020
SWITCH - FUEL SHUT-OFF 		- 1 Enquire
18 UUG500040
VALVE - CONTROL
To: FA459933 		- 1 Enquire
18 LR068982
VALVE - CONTROL
When Ordering LR068982 For The First Time, Parts LR068979 And LR068981 Must Also Be Ordered / From: FA459934 		- 1 Enquire
19 UGN500020
ADAPTOR
Slave Cylinder / To: BA401237 		- 1 Enquire
19 LR031188
ADAPTOR
Slave Cylinder / From: BA401238 / To: FA459933 		- 1 Enquire
19 LR068981
ADAPTOR
Slave Cylinder, When Ordering LR068981 For The First Time, Parts LR068979 And LR068982 Must Also Be Ordered / From: FA459934 		- 1 Enquire
20 SYG500030
BANJO 		- 1 Enquire
21 STD500020
DAMPER 		- 1 Enquire
