Name: Spare Wheel Carrier (With Bulkhead Mounted Carrier) ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

View All

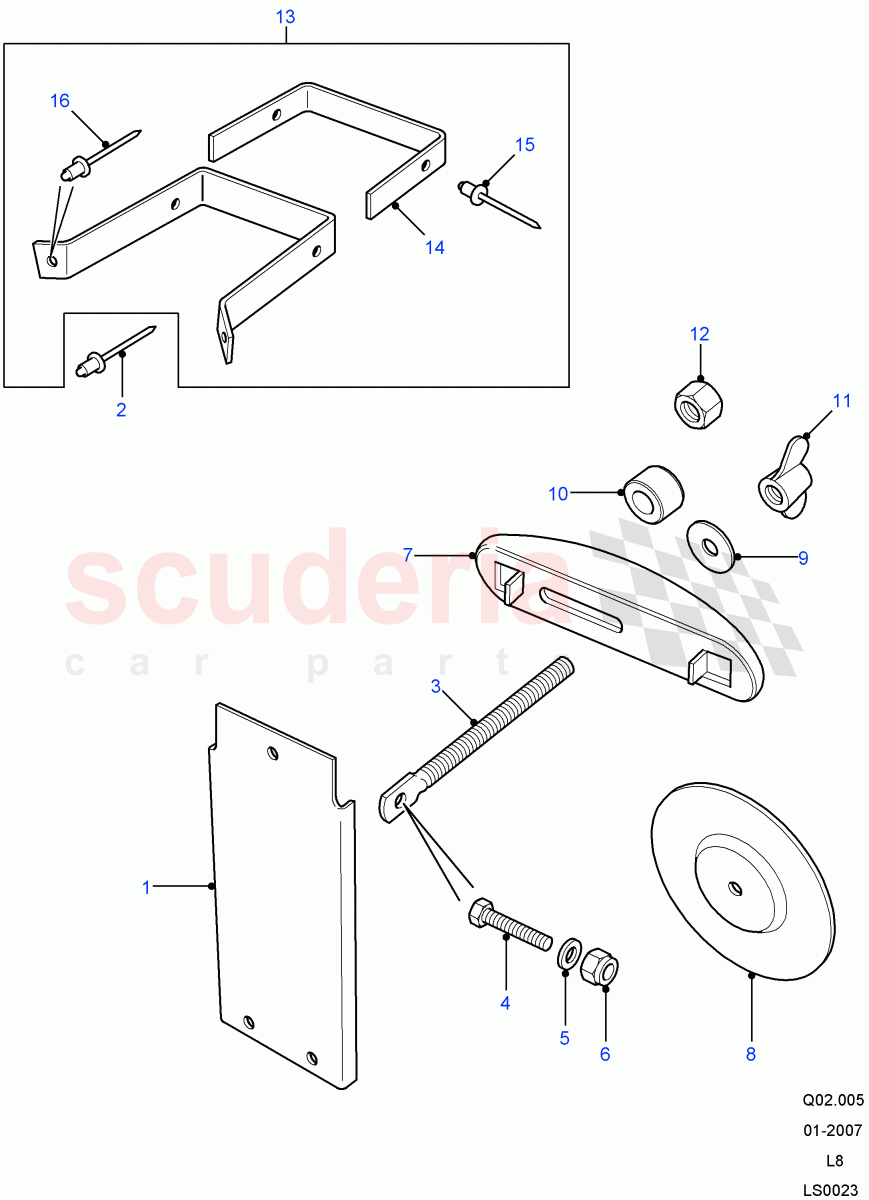

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KTP500010	PLATE - SPARE WHEEL CARRIER ANCHOR	$11.45	To Order
	LR070174	PLATE - SPARE WHEEL CARRIER ANCHOR	$71.00	To Order

Photo	Part No	Description	Price (each)	Stock
	RA612237	RIVET	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	FB106086	BOLT	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	WC106041L	WASHER	$1.50	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	MXC5477	CLAMP	$32.86	To Order

Photo	Part No	Description	Price (each)	Stock
	BTR0335	WASHER	$52.42	To Order

Photo	Part No	Description	Price (each)	Stock
	WA116101L	WASHER	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	KTD500070	SPACER	$9.55	To Order

Photo	Part No	Description	Price (each)	Stock
	RRD500560	NUT - WHEEL	$15.47	To Order

Photo	Part No	Description	Price (each)	Stock
	RRD500010	NUT - WHEEL	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
	MUC1649	STRIP - PROTECTIVE	$60.78	To Order

Photo	Part No	Description	Price (each)	Stock
	KTH100000	STRIP - RUBBER	$4.19	To Order

Photo	Part No	Description	Price (each)	Stock
	RA612346	RIVET	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	RA612237	RIVET	$1.09	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	KTP500010	PLATE - SPARE WHEEL CARRIER ANCHOR	KTP500010 PLATE - SPARE WHEEL CARRIER ANCHOR To: FA461219	$11.45	1
1	LR070174	PLATE - SPARE WHEEL CARRIER ANCHOR	LR070174 PLATE - SPARE WHEEL CARRIER ANCHOR From: FA461220	$71.00	1
2	RA612237	RIVET	RA612237 RIVET	$1.09	3
3	KTC500040	BOLT	KTC500040 BOLT spare wheel clamp	$15.09	1
3	KTC500050	BOLT	KTC500050 BOLT Alloy Wheel, extended	$19.92	1
4	FB106086	BOLT	FB106086 BOLT Flanged Head, M6 X 40MM	$2.59	1
5	WC106041L	WASHER	WC106041L WASHER M6, oversize	$1.50	2
6	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6, nyloc IN STOCK	$0.69	1
7	MXC5477	CLAMP	MXC5477 CLAMP	$32.86	1
8	BTR0335	WASHER	BTR0335 WASHER	$52.42	1
9	WA116101L	WASHER	WA116101L WASHER	$1.53	1
10	KTD500070	SPACER	KTD500070 SPACER	$9.55	1
11	RRD500560	NUT - WHEEL	RRD500560 NUT - WHEEL 110" Wheelbase	$15.47	3
12	RRD500010	NUT - WHEEL	RRD500010 NUT - WHEEL 16MM, steel wheel	$3.11	1
13	MUC1649	STRIP - PROTECTIVE	MUC1649 STRIP - PROTECTIVE	$60.78	1
14	KTH100000	STRIP - RUBBER	KTH100000 STRIP - RUBBER	$4.19	1
15	RA612346	RIVET	RA612346 RIVET	$1.04	2
16	RA612237	RIVET	RA612237 RIVET	$1.09	4

Spare Wheel Carrier (With Bulkhead Mounted Carrier) ((V) From7A000001)

Land Rover Defender (2007-2016)
