Track Rods & Damper ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Track Rods & Damper ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ANR2858 EYE END - CROSS ROD $247.08 To Order
ANR2859 EYE END - CROSS ROD $240.92 To Order
LR049447 EYE END - CROSS ROD $489.16 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ANR2860 TUBE $204.32 To Order
LR049449 TUBE - CROSS ROD $193.11 To Order
Photo Part No Description Price (each) Stock
RTC5869 JOINT - BALL $70.36 To Order
Photo Part No Description Price (each) Stock
WC112081L WASHER $1.77 To Order
Photo Part No Description Price (each) Stock
NC112046 NUT - FLANGED $7.59 To Order
Photo Part No Description Price (each) Stock
UYT500030 PIN $1.09 To Order
Photo Part No Description Price (each) Stock
577898 CLAMP $3.21 To Order
Photo Part No Description Price (each) Stock
BH604151L BOLT $1.51 To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.15 IN STOCK
Photo Part No Description Price (each) Stock
QYH500110 LOCKNUT $0.62 To Order
Photo Part No Description Price (each) Stock
QFK500040 ROD $214.62 To Order
LR041267 TRACK ROD $357.39 To Order
Photo Part No Description Price (each) Stock
NRC9742 TUBE $90.93 To Order
LR045730 TUBE - TRACK ROD $102.31 To Order
Photo Part No Description Price (each) Stock
RTC5869 JOINT - BALL $70.36 To Order
Photo Part No Description Price (each) Stock
WC112081L WASHER $1.77 To Order
Photo Part No Description Price (each) Stock
NC112046 NUT - FLANGED $7.59 To Order
Photo Part No Description Price (each) Stock
UYT500030 PIN $1.09 To Order
Photo Part No Description Price (each) Stock
RTC5870 JOINT - BALL $73.54 To Order
Photo Part No Description Price (each) Stock
WC112081L WASHER $1.77 To Order
Photo Part No Description Price (each) Stock
NC112046 NUT - FLANGED $7.59 To Order
Photo Part No Description Price (each) Stock
UYT500030 PIN $1.09 To Order
Photo Part No Description Price (each) Stock
577898 CLAMP $3.21 To Order
Photo Part No Description Price (each) Stock
BH604151L BOLT $1.51 To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.15 IN STOCK
Photo Part No Description Price (each) Stock
QYH500110 LOCKNUT $0.62 To Order
Photo Part No Description Price (each) Stock
RTC4472 DAMPER $203.75 To Order
Photo Part No Description Price (each) Stock
QYF500050 WASHER $2.09 To Order
Photo Part No Description Price (each) Stock
8510242 BUSH $1.36 To Order
568858 WASHER - RUBBER $8.66 To Order
Photo Part No Description Price (each) Stock
QYF500060 WASHER $4.12 To Order
Photo Part No Description Price (each) Stock
90575597 WASHER $5.17 To Order
Photo Part No Description Price (each) Stock
WJ110007L WASHER $0.72 IN STOCK
Photo Part No Description Price (each) Stock
QYH500120 NUT - HEX. $1.63 To Order
Photo Part No Description Price (each) Stock
QEM500020 BUSH $11.55 To Order
Photo Part No Description Price (each) Stock
BH110121L BOLT $2.62 To Order
Photo Part No Description Price (each) Stock
WA110066 RESTRICTOR $0.69 To Order
Photo Part No Description Price (each) Stock
NY110047L NUT - HEX. $2.61 To Order
Photo Part No Description Price (each) Stock
WC112081L WASHER $1.77 To Order
Photo Part No Description Price (each) Stock
NC112046 NUT - FLANGED $7.59 To Order
View All

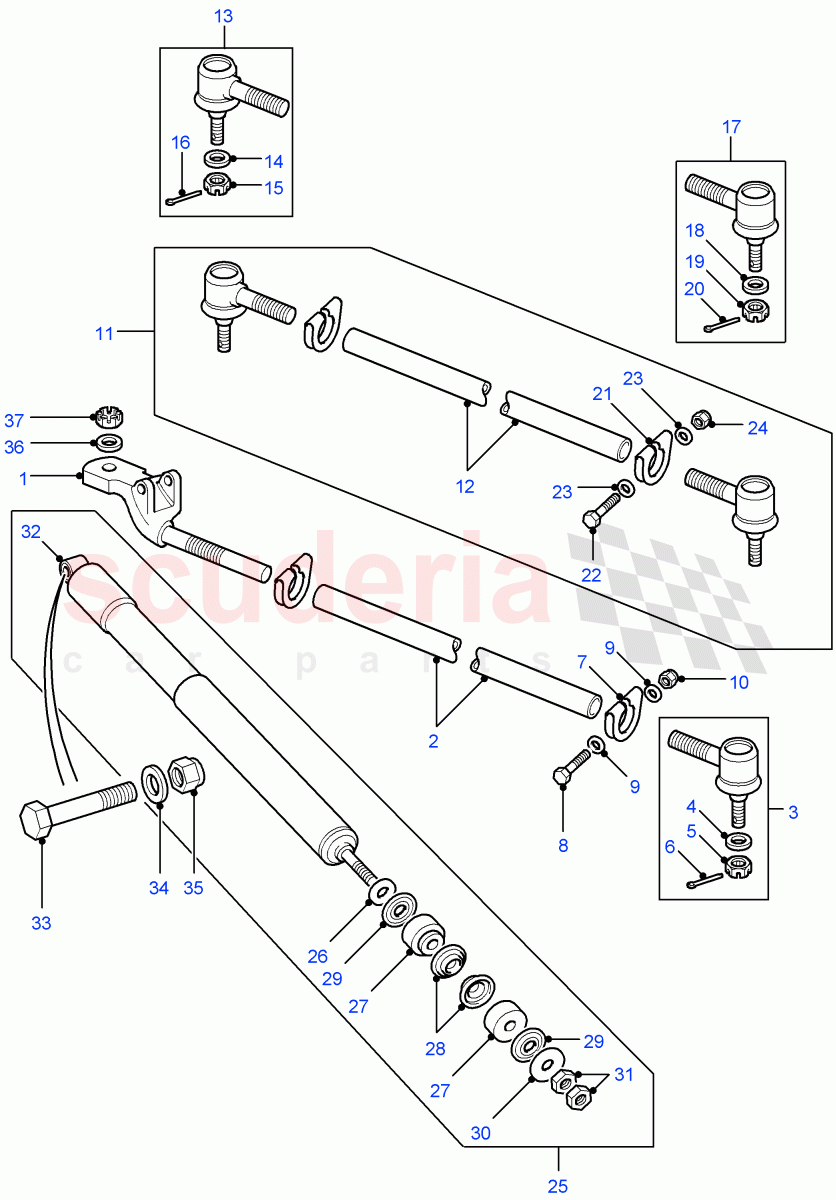

Track Rods & Damper ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ANR2858
EYE END - CROSS ROD
RHD / To: DA439438 		$247.08 1
1 ANR2859
EYE END - CROSS ROD
LHD / To: DA439438 		$240.92 1
1 LR049447
EYE END - CROSS ROD
RHD / From: DA439439 		$489.16 1
1 LR049448
EYE END - CROSS ROD
LHD / From: DA439439 		$702.62 1
2 ANR2860
TUBE
tie bar / To: DA439438 		$204.32 1
2 LR049449
TUBE - CROSS ROD
tie bar / From: DA439439 		$193.11 1
3 RTC5869
JOINT - BALL
R/H thread 		$70.36 1
4 WC112081L
WASHER
M12 x 28 		$1.77 2
5 NC112046
NUT - FLANGED
M12 		$7.59 2
6 UYT500030
PIN
3.2 x 32 		$1.09 1
7 577898
CLAMP
Tube 		$3.21 2
8 BH604151L
BOLT
1/4UNF x 7/8 		$1.51 2
9 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.15 4
10 QYH500110
LOCKNUT
1/4", Hexagonal, nyloc 		$0.62 2
11 QFK500040
ROD
To: CA422000 		$214.62 1
11 LR041267
TRACK ROD
From: CA422001 		$357.39 1
12 NRC9742
TUBE
track rod / To: CA422000 		$90.93 1
12 LR045730
TUBE - TRACK ROD
track rod / From: CA422001 		$102.31 1
13 RTC5869
JOINT - BALL
RH, R/H thread 		$70.36 1
14 WC112081L
WASHER
M12 x 28 		$1.77 2
15 NC112046
NUT - FLANGED
M12 		$7.59 2
16 UYT500030
PIN
3.2 x 32 		$1.09 1
17 RTC5870
JOINT - BALL
LH, L/H thread 		$73.54 1
18 WC112081L
WASHER
M12 x 28 		$1.77 1
19 NC112046
NUT - FLANGED
M12 		$7.59 1
20 UYT500030
PIN
3.2 x 32 		$1.09 1
21 577898
CLAMP
Tube 		$3.21 2
22 BH604151L
BOLT
1/4UNF x 7/8 		$1.51 2
23 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.15 4
24 QYH500110
LOCKNUT
1/4", Hexagonal, nyloc 		$0.62 2
25 RTC4472
DAMPER 		$203.75 1
26 QYF500050
WASHER 		$2.09 1
27 8510242
BUSH
To: 8A999999 		$1.36 2
27 568858
WASHER - RUBBER
From: 9A000001 		$8.66 2
28 QYF500060
WASHER
Intermediate 		$4.12 2
29 90575597
WASHER 		$5.17 2
30 WJ110007L
WASHER
IN STOCK 		$0.72 1
31 QYH500120
NUT - HEX.
Narrow 		$1.63 2
32 QEM500020
BUSH 		$11.55 1
33 BH110121L
BOLT
Long, M10 x 60 		$2.62 1
34 WA110066
RESTRICTOR
M10 		$0.69 1
35 NY110047L
NUT - HEX.
flange, M10, nyloc 		$2.61 1
36 WC112081L
WASHER
M12 x 28, steering drop arm to crossrod 		$1.77 1
37 NC112046
NUT - FLANGED
M12, steering drop arm to crossrod 		$7.59 1
