Exhaust System (90" Wheelbase) ((V) Fromca000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Exhaust System (90" Wheelbase) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR030001 PIPE - EXHAUST Enquire To Order
LR030002 PIPE - EXHAUST Enquire To Order
LR041312 PIPE - EXHAUST Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WCE500480 MUFFLER - CENTER Enquire To Order
LR040909 MUFFLER - CENTER Enquire To Order
LR066089 MUFFLER - CENTRE Enquire To Order
Photo Part No Description Price (each) Stock
WCG500070 MUFFLER - REAR Enquire To Order
LR019002 MUFFLER - REAR Enquire To Order
LR066423 MUFFLER - REAR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ESR3172 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
ESR3172 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
ESR3172 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
NTC7348 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
ESR3294 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WJ600056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WJ600056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
ESR2033 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
LR030008 SHIELD - EXHAUST MANIFOLD HEAT Enquire To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR031502 SHIELD - EXHAUST MANIFOLD HEAT Enquire To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB108086 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR032345 CLAMP - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR030030 SENSOR - EXHAUST GAS PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR030003 SENSOR - EXHAUST GAS - TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR030004 SENSOR - EXHAUST GAS - TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR030005 SENSOR - EXHAUST GAS - TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR030006 SENSOR - HEGO Enquire To Order
Photo Part No Description Price (each) Stock
LR032878 CLIP - CONTROL CABLE Enquire To Order
Photo Part No Description Price (each) Stock
LR000954 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR030009 EXHAUST PIPE MOUNTING Enquire To Order
View All

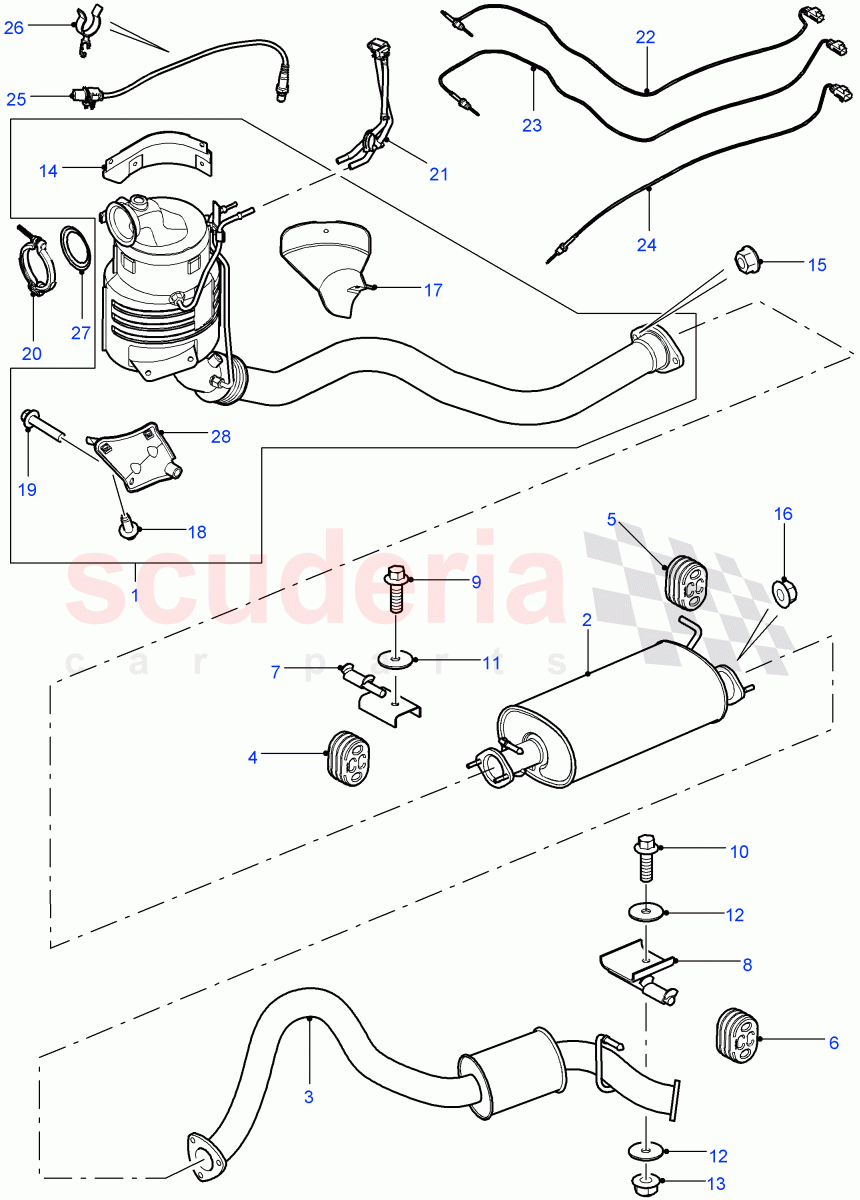

Exhaust System (90" Wheelbase) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR030001
PIPE - EXHAUST
Stage V Plus DPF / To: CA444443 		- 1 Enquire
1 LR030002
PIPE - EXHAUST
Euro Stage 4 Emissions / To: CA444443 		- 1 Enquire
1 LR041312
PIPE - EXHAUST
Stage V Plus DPF / From: CA444444 		- 1 Enquire
1 LR041316
PIPE - EXHAUST
Euro Stage 4 Emissions / From: CA444444 		- 1 Enquire
2 WCE500480
MUFFLER - CENTER
To: CA422221 		- 1 Enquire
2 LR040909
MUFFLER - CENTER
From: CA422222 / To: EA453681 		- 1 Enquire
2 LR066089
MUFFLER - CENTRE
From: EA453682 		- 1 Enquire
3 WCG500070
MUFFLER - REAR
(-)"AUS" / To: EA449961 		- 1 Enquire
3 LR019002
MUFFLER - REAR
(+)"AUS" / To: EA454434 		- 1 Enquire
3 LR066423
MUFFLER - REAR
(-)"AUS" / From: EA449962 		- 1 Enquire
3 LR066421
MUFFLER - REAR
(+)"AUS" / From: EA454435 		- 1 Enquire
4 ESR3172
BRACKET - EXHAUST PIPE MOUNTING 		- 1 Enquire
5 ESR3172
BRACKET - EXHAUST PIPE MOUNTING 		- 1 Enquire
6 ESR3172
BRACKET - EXHAUST PIPE MOUNTING 		- 1 Enquire
7 NTC7348
BRACKET - EXHAUST PIPE MOUNTING 		- 1 Enquire
8 ESR3294
BRACKET - EXHAUST PIPE MOUNTING 		- 1 Enquire
9 FS108256
BOLT
M8 x 25 		- 1 Enquire
10 FS108256
BOLT
M8 x 25 		- 1 Enquire
11 WJ600056
WASHER 		- 1 Enquire
12 WJ600056
WASHER 		- 2 Enquire
13 ESR2033
NUT - LOCKING
M8 		- 1 Enquire
14 LR030008
SHIELD - EXHAUST MANIFOLD HEAT
Upper 		- 1 Enquire
15 LR025680
M10 FLANGED HEX NUT
M10 		- 2 Enquire
16 LR025680
M10 FLANGED HEX NUT
M10 		- 3 Enquire
17 LR031502
SHIELD - EXHAUST MANIFOLD HEAT
Lower 		- 1 Enquire
18 FS108206
BOLT
M8 X 20MM 		- 2 Enquire
19 FB108086
BOLT
M8 x 40 		- 1 Enquire
20 LR032345
CLAMP - EXHAUST 		- 1 Enquire
21 LR030030
SENSOR - EXHAUST GAS PRESSURE
Parts Subject To US Export Controls (EAR99). Re-export To Restricted Countries/Persons Prohibited. 		- 1 Enquire
22 LR030003
SENSOR - EXHAUST GAS - TEMPERATURE
Stage V Plus DPF / Orange, Pre Catalyst 		- 1 Enquire
23 LR030004
SENSOR - EXHAUST GAS - TEMPERATURE
Stage V Plus DPF / Green, post catalyst 		- 1 Enquire
24 LR030005
SENSOR - EXHAUST GAS - TEMPERATURE
Stage V Plus DPF / Black 		- 1 Enquire
25 LR030006
SENSOR - HEGO
Stage V Plus DPF / Oxygen Sensor 		- 1 Enquire
26 LR032878
CLIP - CONTROL CABLE
Oxygen Sensor 		- 2 Enquire
27 LR000954
GASKET - EXHAUST PIPE 		- 1 Enquire
28 LR030009
EXHAUST PIPE MOUNTING 		- 1 Enquire
