Rear Brake Discs And Calipers (Disc And Caliper Size-Frt 20/RR 20) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Rear Brake Discs And Calipers (Disc And Caliper Size-Frt 20/RR 20)

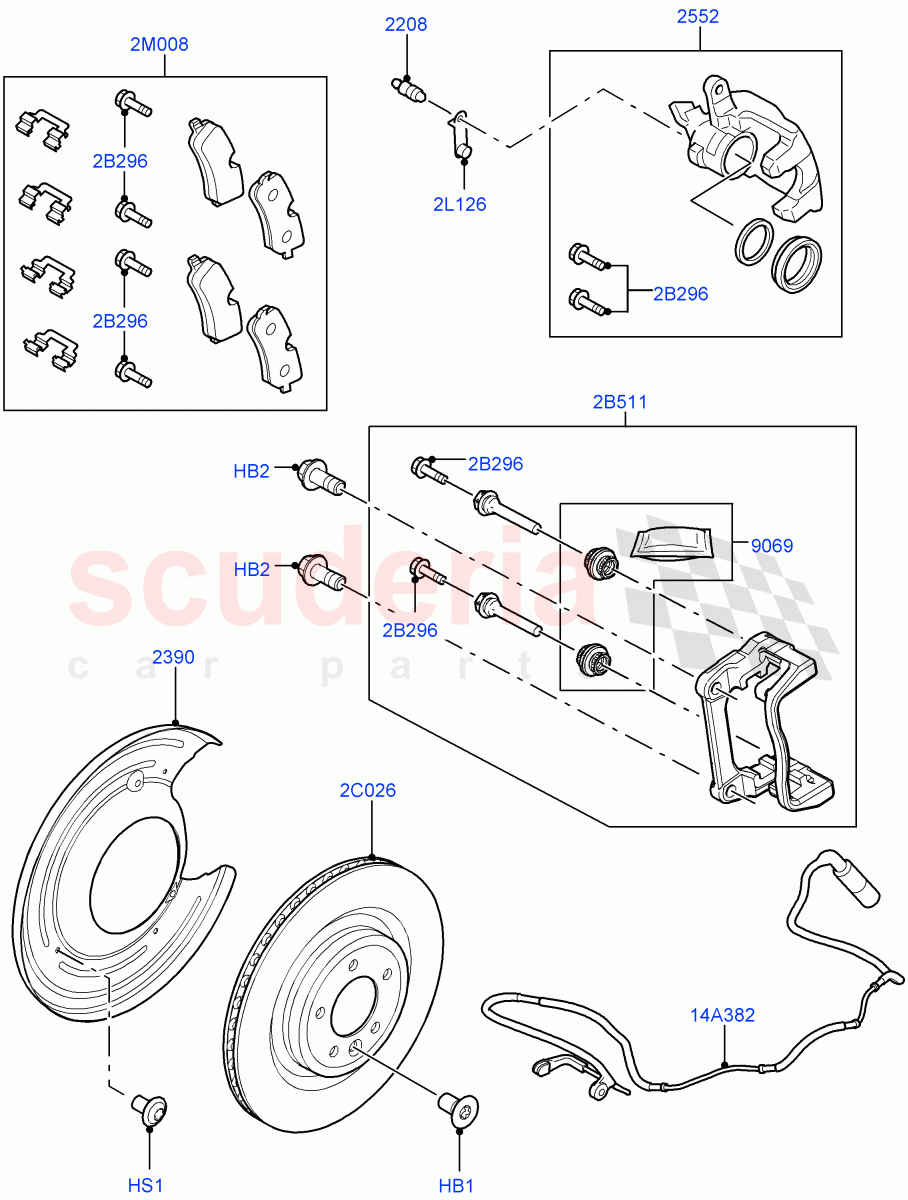

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYG000013	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082225	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR082553	SHIELD - BRAKE DISC SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102246	CALIPER - BRAKE	Enquire	To Order
	LR102243	CALIPER - BRAKE	Enquire	To Order
	LR156785	CALIPER - BRAKE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031319	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110404	BRACKET - BRAKE CALIPER	Enquire	To Order
	LR110403	BRACKET - BRAKE CALIPER	Enquire	To Order
	LR139154	BRACKET - BRAKE CALIPER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR099038	DISC - BRAKE	Enquire	To Order
	LR161899	DISC - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1913	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123717	KIT - BRAKE LINING	Enquire	To Order
	LR123717	KIT - BRAKE LINING	Enquire	To Order
	LR146247	BRAKE PADS - LESS SPRINGS	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR084071	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR002080	BOLT	LR002080 BOLT M10 X 20MM, Torx	-	2	Enquire
HB2	SYG000013	BOLT	SYG000013 BOLT External Torx Head, M12 X 35MM	-	4	Enquire
HS1	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Torx	-	6	Enquire
2B296	LR031319	BOLT	LR031319 BOLT Pin - Guide	-	4	Enquire
2B511	LR110404	BRACKET - BRAKE CALIPER	LR110404 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / LH	-	1	Enquire
2B511	LR110403	BRACKET - BRAKE CALIPER	LR110403 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / RH	-	1	Enquire
2B511	LR139154	BRACKET - BRAKE CALIPER	LR139154 BRACKET - BRAKE CALIPER Brake Calipers - Orange / RH	-	1	Enquire
2B511	LR142083	BRACKET - BRAKE CALIPER	LR142083 BRACKET - BRAKE CALIPER Brake Calipers - Orange / LH	-	1	Enquire
2B511	LR104079	BRACKET - BRAKE CALIPER	LR104079 BRACKET - BRAKE CALIPER Brake Calipers - Blue Frt/Black Rr / RH / From: M2000001	-	1	Enquire
2B511	LR104078	BRACKET - BRAKE CALIPER	LR104078 BRACKET - BRAKE CALIPER Brake Calipers - Blue Frt/Black Rr / LH / From: M2000001	-	1	Enquire
2C026	LR099038	DISC - BRAKE	LR099038 DISC - BRAKE 365mm, RH/LH / To: N2072238	-	2	Enquire
2C026	LR161899	DISC - BRAKE	LR161899 DISC - BRAKE 365mm, RH/LH / From: N2072239	-	2	Enquire
2L126	STC1913	CAP - BLEED SCREW	STC1913 CAP - BLEED SCREW	-	2	Enquire
2M008	LR123717	KIT - BRAKE LINING	LR123717 KIT - BRAKE LINING Axle Set, With Clips / To: M2065456	-	1	Enquire
2M008	LR123717	KIT - BRAKE LINING	LR123717 KIT - BRAKE LINING Brake Calipers - Orange / Axle Set, With Clips / From: M2065457 / To: N2097092	-	1	Enquire
2M008	LR146247	BRAKE PADS - LESS SPRINGS	LR146247 BRAKE PADS - LESS SPRINGS Brake Calipers - Blue Frt/Black Rr / Axle Set, High Performance, With Clips / From: M2065457 / To: N2078657	-	1	Enquire
2M008	LR162043	KIT - BRAKE LINING	LR162043 KIT - BRAKE LINING Brake Calipers - Blue Frt/Black Rr / Axle Set, High Performance, With Clips / From: N2078658	-	1	Enquire
2M008	LR162047	KIT - BRAKE LINING	LR162047 KIT - BRAKE LINING With Non Painted Brake Calipers / Axle Set, With Clips / From: N2097093	-	1	Enquire
14A382	LR084071	WIRE - BRAKE PAD WEAR WARNING	LR084071 WIRE - BRAKE PAD WEAR WARNING	-	1	Enquire
2208	LR015523	SCREW - BLEED	LR015523 SCREW - BLEED	-	2	Enquire
2390	LR082225	SHIELD - BRAKE DISC SPLASH	LR082225 SHIELD - BRAKE DISC SPLASH RH	-	1	Enquire
2390	LR082553	SHIELD - BRAKE DISC SPLASH	LR082553 SHIELD - BRAKE DISC SPLASH LH	-	1	Enquire
2552	LR102246	CALIPER - BRAKE	LR102246 CALIPER - BRAKE With Non Painted Brake Calipers / LH	-	1	Enquire
2552	LR102243	CALIPER - BRAKE	LR102243 CALIPER - BRAKE With Non Painted Brake Calipers / RH	-	1	Enquire
2552	LR156785	CALIPER - BRAKE	LR156785 CALIPER - BRAKE Brake Calipers - Orange / LH	-	1	Enquire
2552	LR156786	CALIPER - BRAKE	LR156786 CALIPER - BRAKE Brake Calipers - Orange / RH	-	1	Enquire
2552	LR104023	CALIPER - BRAKE	LR104023 CALIPER - BRAKE Brake Calipers - Blue Frt/Black Rr / LH / From: M2000001	-	1	Enquire
2552	LR104022	CALIPER - BRAKE	LR104022 CALIPER - BRAKE Brake Calipers - Blue Frt/Black Rr / RH / From: M2000001	-	1	Enquire
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot	-	2	Enquire
