Name: Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV)
Rating: 5.0 (1 reviews)

Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV)

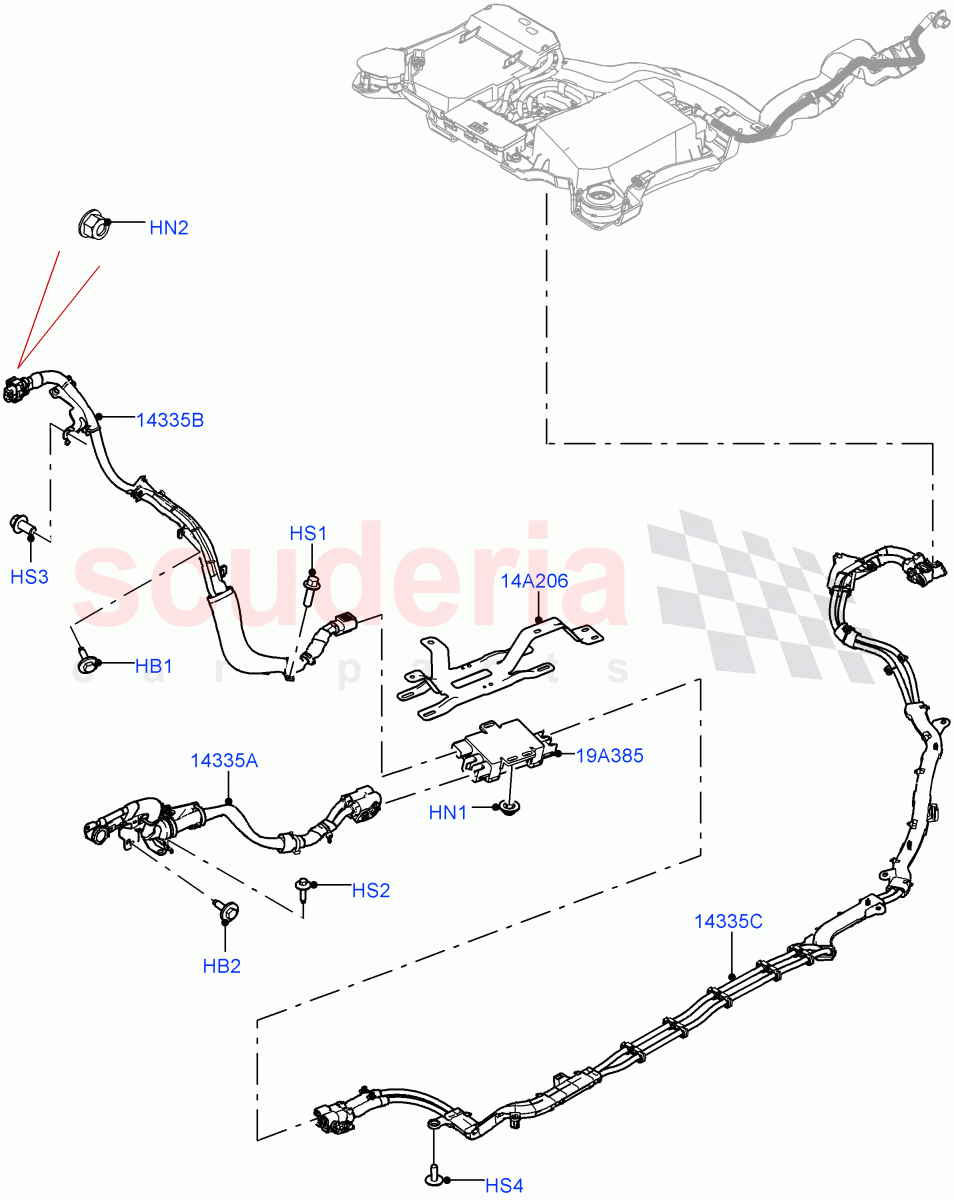

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028253	BOLT	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049187	BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500540	NUT - SPECIAL	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126612	NUT - ADJUSTING	$0.69	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110206	BOLT - HEX.HEAD	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR132976	CABLE	$238.02	To Order
	LR145295	CABLE	$219.32	To Order
	LR149130	CABLE	$204.86	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR136752	CABLE	$295.31	To Order
	LR172192	CABLE	$276.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133011	CABLE - UNDERBODY	$305.75	To Order
	LR132977	CABLE - UNDERBODY	$321.19	To Order
	LR149100	CABLE - UNDERBODY	$312.55	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153488	BRACKET - FUSE BOX	$10.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133628	JUNCTION BOX	$600.10	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR028253	BOLT	LR028253 BOLT 3.0L AJ20P6 Petrol High / M6 X 16MM	$1.45	2
HB2	LR049187	BOLT	LR049187 BOLT 3.0L AJ20D6 Diesel High / M8 X 35MM	$1.00	1
HN1	RYH500540	NUT - SPECIAL	RYH500540 NUT - SPECIAL M6	$1.19	3
HN2	LR126612	NUT - ADJUSTING	LR126612 NUT - ADJUSTING 3.0L AJ20P6 Petrol High / M8	$0.69	2
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW 3.0L AJ20P6 Petrol High / Hexagonal Head, M6 X 20MM IN STOCK	$0.97	2
HS2	RYG500160	SCREW	RYG500160 SCREW 3.0L AJ20P6 Petrol High / Hexagonal Head, M6 X 14MM	$0.59	1
HS3	FS110206	BOLT - HEX.HEAD	FS110206 BOLT - HEX.HEAD Hexagonal Head, M10 X 20MM	$0.76	1
HS4	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM IN STOCK	$0.92	5
14A206	LR153488	BRACKET - FUSE BOX	LR153488 BRACKET - FUSE BOX 3.0L AJ20D6 Diesel High / Housing Bracket / From: M2000001	$10.44	1
19A385	LR133628	JUNCTION BOX	LR133628 JUNCTION BOX 3.0L AJ20P6 Petrol High	$600.10	1
14335A	LR132976	CABLE	LR132976 CABLE Junction Box To Alternator / To: L2014242	$238.02	1
14335A	LR145295	CABLE	LR145295 CABLE Junction Box To Alternator / From: L2014243 / To: L2999999	$219.32	1
14335A	LR149130	CABLE	LR149130 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Alternator / From: M2000001 / To: N2999999	$204.86	1
14335A	LR149129	CABLE	LR149129 CABLE 3.0L AJ20D6 Diesel High / Junction Box To Alternator / From: M2000001 / To: N2999999	$218.32	1
14335A	LR172172	CABLE	LR172172 CABLE 3.0L AJ20D6 Diesel High / Junction Box To Alternator / From: P2000001	$240.43	1
14335A	LR172173	CABLE	LR172173 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Alternator / From: P2000001	$232.30	1
14335B	LR136752	CABLE	LR136752 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Charger / To: N2999999	$295.31	1
14335B	LR172192	CABLE	LR172192 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Charger / From: P2000001	$276.19	1
14335C	LR133011	CABLE - UNDERBODY	LR133011 CABLE - UNDERBODY 3.0L AJ20P6 Petrol High, Standard Wheelbase / Battery To Junction Box	$305.75	1
14335C	LR132977	CABLE - UNDERBODY	LR132977 CABLE - UNDERBODY 3.0L AJ20P6 Petrol High, Short Wheelbase / Battery To Junction Box	$321.19	1
14335C	LR149100	CABLE - UNDERBODY	LR149100 CABLE - UNDERBODY 3.0L AJ20D6 Diesel High, Standard Wheelbase / Battery To Junction Box / From: M2000001	$312.55	1
14335C	LR149099	CABLE - UNDERBODY	LR149099 CABLE - UNDERBODY 3.0L AJ20D6 Diesel High, Short Wheelbase / Battery To Junction Box / From: M2000001	$312.55	1
