Name: Fuel Tank & Related Parts (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA, Standard Wheelbase) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA, Standard Wheelbase) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Tank & Related Parts (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA, Standard Wheelbase) ((V)...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093364	BOLT	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133513	CLIP - PIPE	$3.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093728	CLIP - HOSE	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136780	TANK - FUEL	$1,198.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138718	CAP - FUEL TANK FILLER	$37.60	To Order
	LR138720	CAP - FUEL TANK FILLER	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128355	PIPE - FUEL FILLER	$217.12	To Order
	LR143377	PIPE - FUEL FILLER	$217.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128360	HOSE - FILLER PIPE	$93.57	To Order
	LR128361	HOSE - FILLER PIPE	$93.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148067	SHIELD	$631.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125885	TUBE - FUEL	$34.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146952	TUBE - FUEL VAPOUR	$151.07	To Order
	LR154194	TUBE - FUEL VAPOUR	$147.67	To Order
	LR154195	TUBE - FUEL VAPOUR	$146.75	To Order

View All

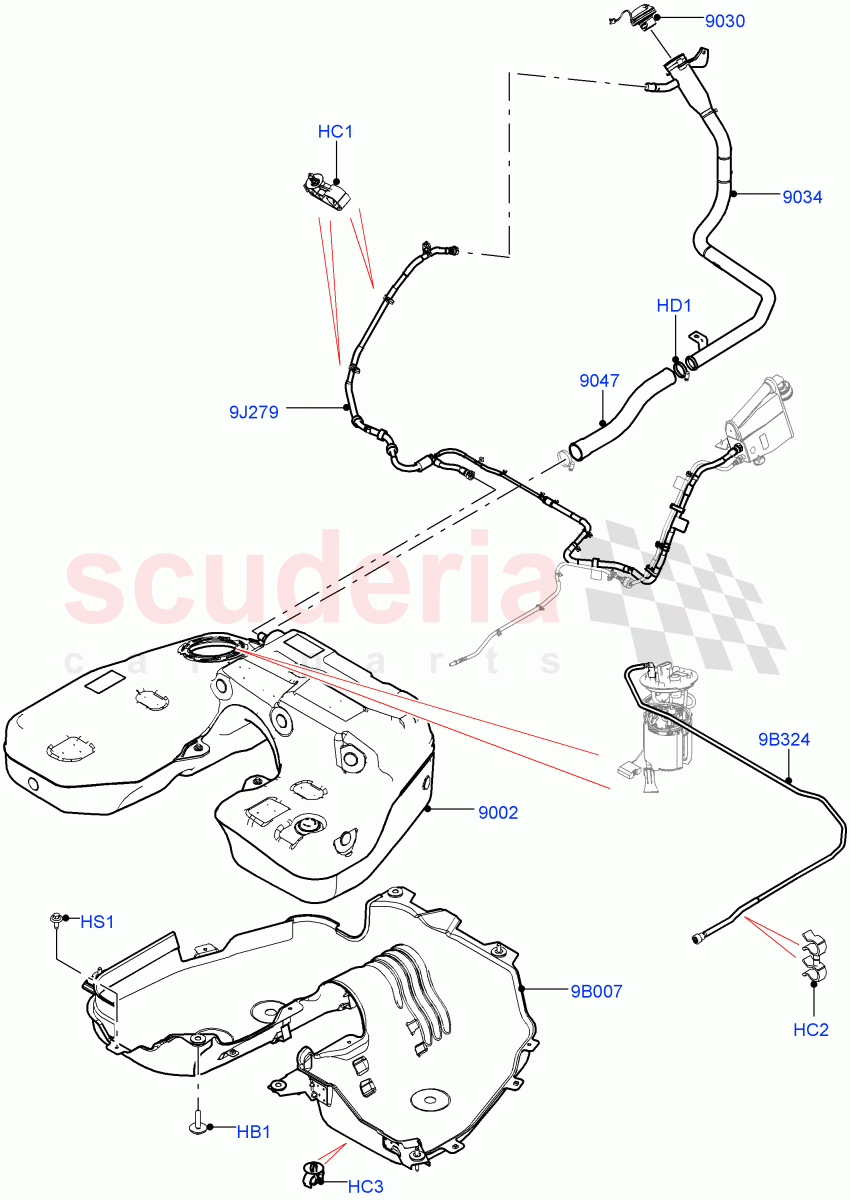

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR093364	BOLT	LR093364 BOLT Hexagonal Head, M10 X 50MM, To Body / From: M2000001	$2.69	7
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Breather Pipe, Plastic / From: M2000001	$4.23	4
HC2	LR133513	CLIP - PIPE	LR133513 CLIP - PIPE Double, Feed / From: M2000001	$3.54	1
HC3	LR093728	CLIP - HOSE	LR093728 CLIP - HOSE Shield / From: M2000001	$2.97	2
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: M2000001	$5.85	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001	$4.03	5
9B007	LR148067	SHIELD	LR148067 SHIELD Cradle / From: M2000001	$631.63	1
9B324	LR125885	TUBE - FUEL	LR125885 TUBE - FUEL Feed / From: M2000001	$34.33	1
9J279	LR146952	TUBE - FUEL VAPOUR	LR146952 TUBE - FUEL VAPOUR Petrol Tank With Leak Detection / Fuel Tank Ventilation Pipe / From: M2000001	$151.07	1
9J279	LR154194	TUBE - FUEL VAPOUR	LR154194 TUBE - FUEL VAPOUR Pet Tank With Leak Det - Lrg Filter / Fuel Tank Ventilation Pipe / From: M2000001	$147.67	1
9J279	LR154195	TUBE - FUEL VAPOUR	LR154195 TUBE - FUEL VAPOUR Pet Tank W/O Leak Det - Std Filter / Fuel Tank Ventilation Pipe / From: M2000001	$146.75	1
9002	LR136780	TANK - FUEL	LR136780 TANK - FUEL From: M2000001	$1,198.17	1
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: M2000001	$37.60	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: M2000001	$37.60	1
9034	LR128355	PIPE - FUEL FILLER	LR128355 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: M2000001	$217.12	1
9034	LR143377	PIPE - FUEL FILLER	LR143377 PIPE - FUEL FILLER Fuel Tank Filler Neck - DMTL / From: M2000001	$217.12	1
9047	LR128360	HOSE - FILLER PIPE	LR128360 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded / Fuel Tank, Inlet / From: M2000001	$93.57	1
9047	LR128361	HOSE - FILLER PIPE	LR128361 HOSE - FILLER PIPE Fuel Tank Filler Neck - DMTL / Fuel Tank, Inlet / From: M2000001	$93.57	1
