Name: Oil Cooler And Filter (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)
Rating: 4.9 (1 reviews)

View All

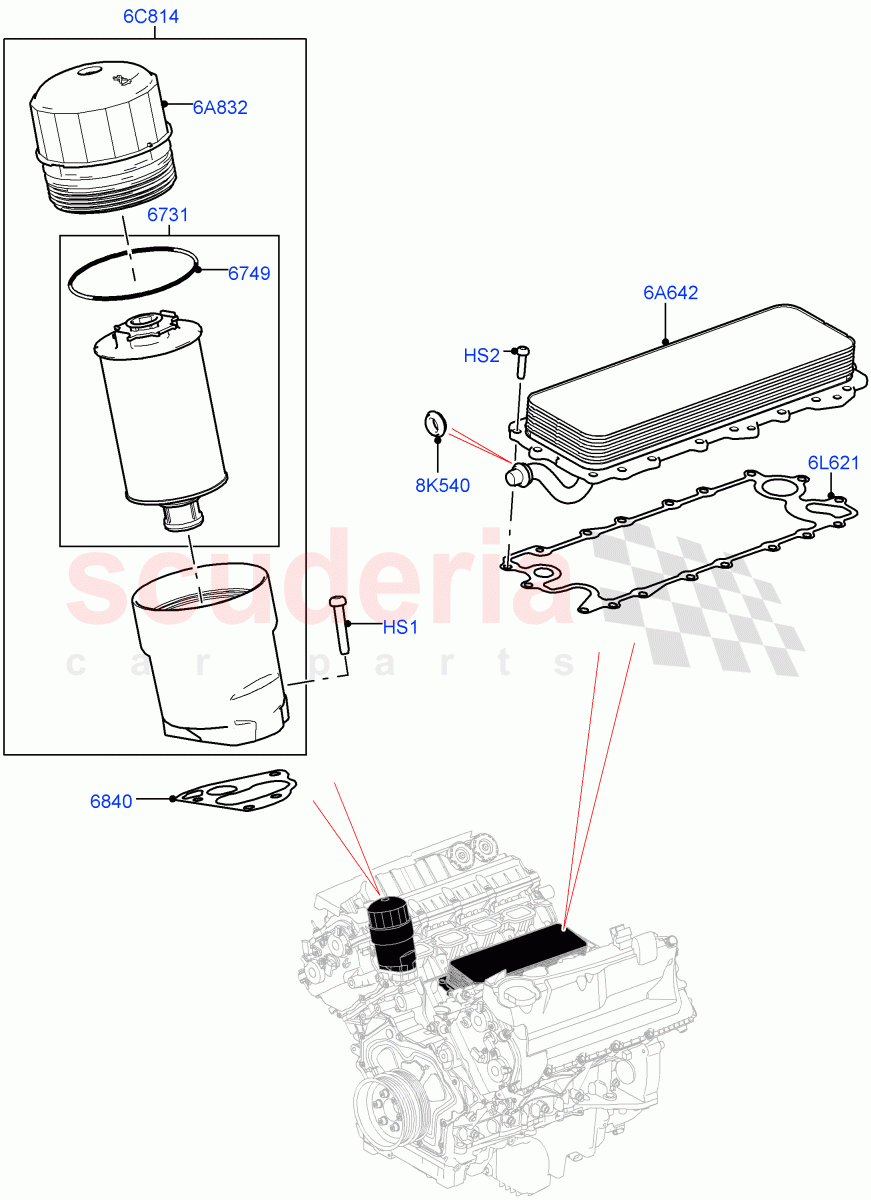

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010905	SCREW	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011279	FILTER - OIL - ELEMENT AND SEAL	$55.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011298	SEAL - OIL FILTER SHIELD	$18.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010735	GASKET - OIL FILTER TO BLOCK	$10.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR039821	OIL COOLER	$482.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019477	COVER - OIL FILTER HOUSING	$28.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010722	OIL FILTER - ASSEMBLY	$172.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010770	GASKET - OIL COOLER	$11.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR030593	SEAL - OIL COOLER OUTLET WATER PUMP	$7.79	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR010905	SCREW IN STOCK	LR010905 SCREW M6 x 35MM / From: M2000001 IN STOCK	$1.11	4
HS2	LR011270	SCREW IN STOCK	LR011270 SCREW M6 x 25MM, Oil Cooler, Torx / From: M2000001 IN STOCK	$1.19	18
6A642	LR039821	OIL COOLER	LR039821 OIL COOLER From: M2000001	$482.89	1
6A832	LR019477	COVER - OIL FILTER HOUSING IN STOCK	LR019477 COVER - OIL FILTER HOUSING Oil Filter Housing / From: M2000001 IN STOCK	$28.94	1
6C814	LR010722	OIL FILTER - ASSEMBLY IN STOCK	LR010722 OIL FILTER - ASSEMBLY From: M2000001 IN STOCK	$172.89	1
6L621	LR010770	GASKET - OIL COOLER IN STOCK	LR010770 GASKET - OIL COOLER Oil Cooler / From: M2000001 IN STOCK	$11.13	1
8K540	LR030593	SEAL - OIL COOLER OUTLET WATER PUMP IN STOCK	LR030593 SEAL - OIL COOLER OUTLET WATER PUMP Oil Cooler Outlet Pipe / From: M2000001 IN STOCK	$7.79	1
6731	LR011279	FILTER - OIL - ELEMENT AND SEAL IN STOCK	LR011279 FILTER - OIL - ELEMENT AND SEAL Element And Seal / From: M2000001 IN STOCK	$55.27	1
6749	LR011298	SEAL - OIL FILTER SHIELD	LR011298 SEAL - OIL FILTER SHIELD Shield For Oil Filter / From: M2000001	$18.17	1
6840	LR010735	GASKET - OIL FILTER TO BLOCK IN STOCK	LR010735 GASKET - OIL FILTER TO BLOCK Oil Filter Housing / From: M2000001 IN STOCK	$10.14	1

Oil Cooler And Filter (Nitra Plant Build) (5.0 Petrol Aj133 Dohc Cda) ((V) Fromm2000001)

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]
