Name: Cooling System Pipes And Hoses (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)
Rating: 4.5 (1 reviews)

Cooling System Pipes And Hoses (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)

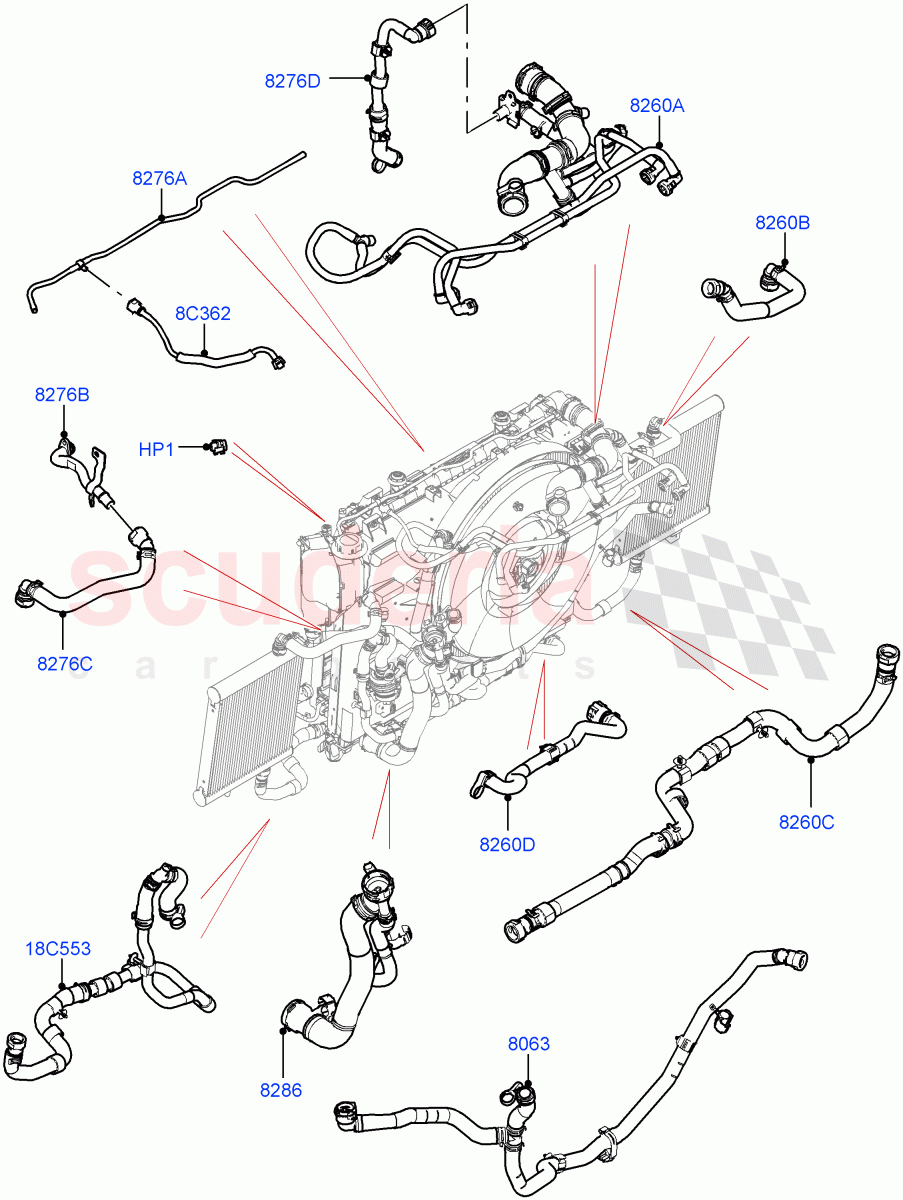

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	$4.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR152856	HOSE - WATER	$165.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152858	HOSE - RADIATOR	$115.39	To Order
	LR169918	HOSE - RADIATOR	$113.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152857	Hose	$201.26	To Order
	LR161839	HOSE - RADIATOR	$198.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152872	HOSE - WATER	$66.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152871	HOSE - WATER	$131.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034625	HOSE - COOLING SYSTEM	$25.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW	$21.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062105	HOSE - WATER	$58.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152869	HOSE - WATER	$55.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152866	HOSE - WATER	$100.18	To Order
	LR163249	HOSE - WATER	$100.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035630	HOSE - RADIATOR VENTILATION	$12.67	IN STOCK
	LR162131	HOSE	$56.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152865	HOSE - TURBOCHARGER TO INTERCOOLER	$96.65	To Order
	LR166140	HOSE - TURBOCHARGER TO INTERCOOLER	$94.98	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HP1	LR011038	PLUG - BLANKING IN STOCK	LR011038 PLUG - BLANKING Blanking, Expansion Tank / From: M2000001 IN STOCK	$4.92	1
8C362	LR035630	HOSE - RADIATOR VENTILATION IN STOCK	LR035630 HOSE - RADIATOR VENTILATION Expansion Tank, VENT / From: M2000001 / To: N2068275 IN STOCK	$12.67	1
8C362	LR162131	HOSE	LR162131 HOSE Expansion Tank, VENT / From: N2068276	$56.39	1
18C553	LR152865	HOSE - TURBOCHARGER TO INTERCOOLER	LR152865 HOSE - TURBOCHARGER TO INTERCOOLER LH, Bottom, From Water Pump To Intercooler / From: M2000001 / To: N2092427	$96.65	1
18C553	LR166140	HOSE - TURBOCHARGER TO INTERCOOLER	LR166140 HOSE - TURBOCHARGER TO INTERCOOLER LH, Bottom, From Water Pump To Intercooler / From: N2092428	$94.98	1
8063	LR152856	HOSE - WATER	LR152856 HOSE - WATER To Expansion Tank / From: M2000001	$165.88	1
8260A	LR152857	Hose	LR152857 Hose Radiator, Top / From: M2000001 / To: N2070798	$201.26	1
8260A	LR161839	HOSE - RADIATOR	LR161839 HOSE - RADIATOR Radiator, Top / From: N2070799	$198.60	1
8260B	LR152872	HOSE - WATER	LR152872 HOSE - WATER RH, Auxiliary Radiator, Top / From: M2000001	$66.79	1
8260C	LR152871	HOSE - WATER	LR152871 HOSE - WATER RH, Auxiliary Radiator, Bottom / From: M2000001	$131.85	1
8260D	LR034625	HOSE - COOLING SYSTEM	LR034625 HOSE - COOLING SYSTEM From Transmission Oil Cooler To Radiator / From: M2000001	$25.33	1
8276A	LR146301	HOSE - RADIATOR TO ENGINE VENT ELBOW IN STOCK	LR146301 HOSE - RADIATOR TO ENGINE VENT ELBOW To Expansion Tank / From: M2000001 IN STOCK	$21.73	1
8276B	LR062105	HOSE - WATER	LR062105 HOSE - WATER LH, Water Charge Air Cooler / From: M2000001	$58.84	1
8276C	LR152869	HOSE - WATER	LR152869 HOSE - WATER LH, Auxiliary Radiator, Top / From: M2000001	$55.38	1
8276D	LR152866	HOSE - WATER	LR152866 HOSE - WATER RH, Water Charge Air Cooler / From: M2000001 / To: N2078908	$100.18	1
8276D	LR163249	HOSE - WATER	LR163249 HOSE - WATER RH, Water Charge Air Cooler / From: N2078909	$100.18	1
8286	LR152858	HOSE - RADIATOR	LR152858 HOSE - RADIATOR Bottom, Radiator / From: M2000001 / To: N2101681	$115.39	1
8286	LR169918	HOSE - RADIATOR	LR169918 HOSE - RADIATOR Bottom, Radiator / From: N2101682	$113.38	1

Cooling System Pipes And Hoses (Nitra Plant Build) (5.0 Petrol Aj133 Dohc Cda) ((V) Fromm2000001)

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)
