Name: Pulleys And Drive Belts (Secondary Drive, Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)
Rating: 4.6 (1 reviews)

View All

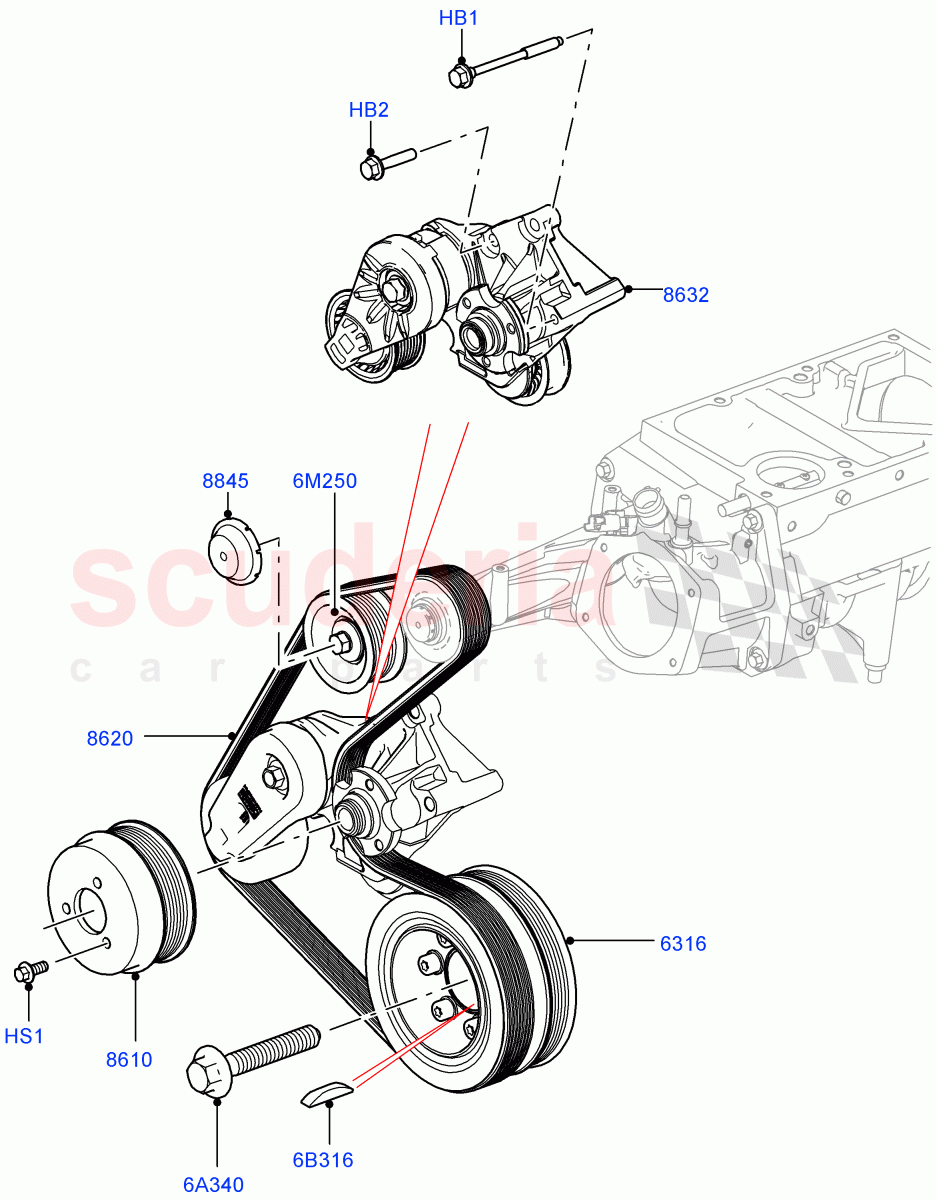

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005074	BOLT	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016837	BOLT	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124257	PULLEY - CRANKSHAFT	$422.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011325	PULLEY - FAN	$97.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR184650	BELT - ACCESSORY DRIVE	$47.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079294	BRACKET WITH IDLER AND BEARING FAN	$331.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011952	BOLT M18 X110	$22.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010691	KEY - WOODRUFF	$2.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035545	PULLEY - IDLER	$53.76	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR005074	BOLT	LR005074 BOLT Bracket, Hexagonal Head, M8 X 96.5 / From: M2000001	$1.11	1
HB2	LR016837	BOLT IN STOCK	LR016837 BOLT Bracket, M8 x 40MM / From: M2000001 IN STOCK	$1.00	3
HS1	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP M8 x 18MM, Pulley / From: M2000001	$2.16	3
6A340	LR011952	BOLT M18 X110 IN STOCK	LR011952 BOLT M18 X110 M16 X 118MM, Pulley - Crankshaft / From: M2000001 IN STOCK	$22.60	1
6B316	LR010691	KEY - WOODRUFF	LR010691 KEY - WOODRUFF From: M2000001	$2.93	1
6M250	LR035545	PULLEY - IDLER	LR035545 PULLEY - IDLER Includes Bolt / From: M2000001	$53.76	1
6316	LR124257	PULLEY - CRANKSHAFT	LR124257 PULLEY - CRANKSHAFT From: M2000001	$422.52	1
8610	LR011325	PULLEY - FAN	LR011325 PULLEY - FAN From: M2000001	$97.63	1
8620	LR184650	BELT - ACCESSORY DRIVE	LR184650 BELT - ACCESSORY DRIVE 1430mm Length / From: M2000001	$47.95	1
8632	LR079294	BRACKET WITH IDLER AND BEARING FAN	LR079294 BRACKET WITH IDLER AND BEARING FAN With Idler, With Tensioner Assy / From: M2000001	$331.98	1
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler / From: M2000001	$3.12	1

Pulleys And Drive Belts (Secondary Drive, Nitra Plant Build) (5.0 Petrol Aj133 Dohc Cda) ((V)...

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]
