Front Seat Back (Side Seats) (Standard Wheelbase) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

View All

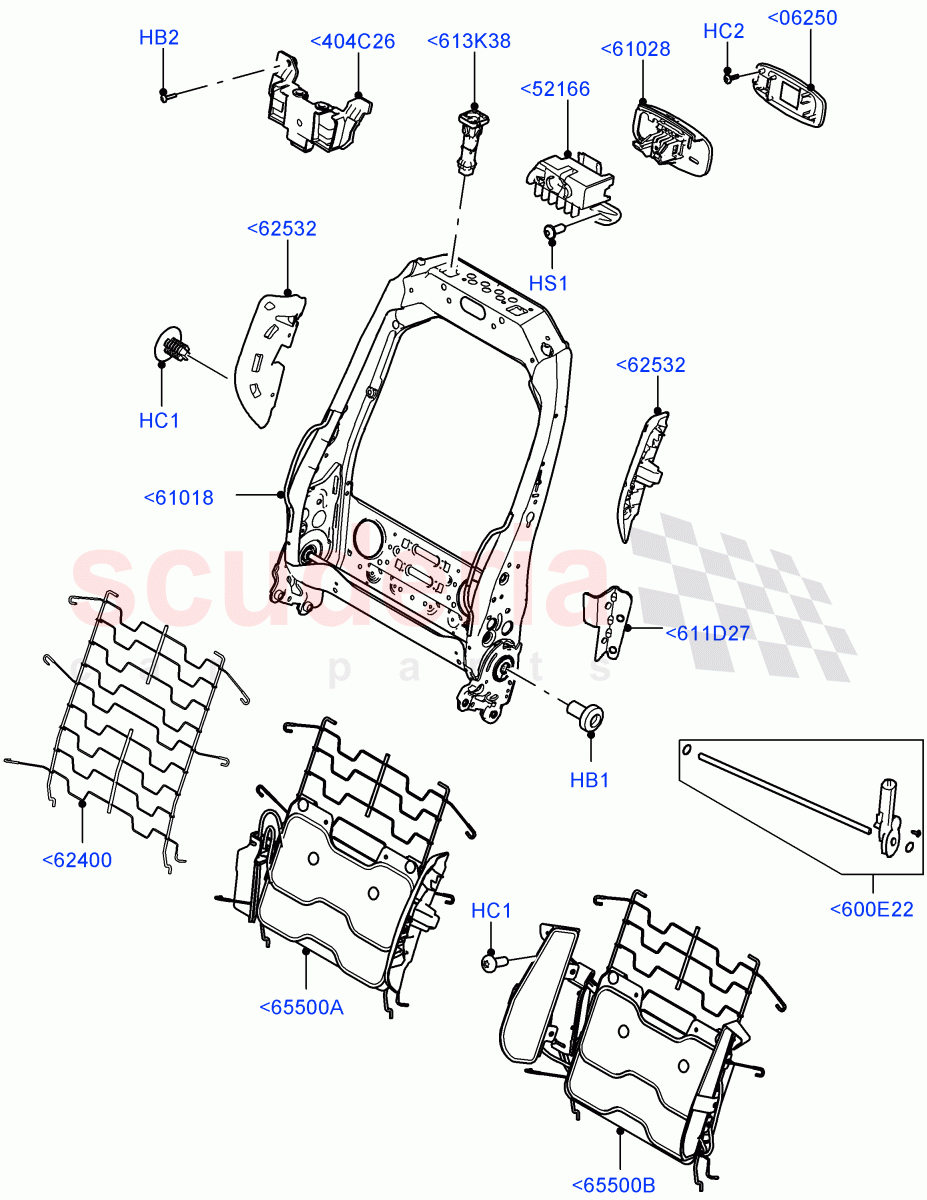

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Front Seat Back (Side Seats) (Standard Wheelbase)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR039503	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093561	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096817	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138647	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118864	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132919	BEZEL - SCREEN MOULDING	Enquire	To Order
	LR132920	BEZEL - SCREEN MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132861	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133475	FRAME - SEAT	Enquire	To Order
	LR133481	FRAME - SEAT	Enquire	To Order
	LR140455	FRAME - SEAT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR130576	HOLDER - IPAD	Enquire	To Order
	LR129748	HOLDER - IPAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080795	SUPPORT - FRONT SEAT SQUAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132400	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR132399	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098764	MASS DAMPER - SEAT FRAME	Enquire	To Order
	LR144653	MASS DAMPER - SEAT FRAME	Enquire	To Order
	LR155657	MASS DAMPER - SEAT FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154977	MOTOR - SEAT ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074733	BRACKET - FRONT SEAT BACK FRAME	Enquire	To Order
	LR074734	BRACKET - FRONT SEAT BACK FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074206	SLEEVE - HEADREST GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098715	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080793	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<404C26	LR098764	MASS DAMPER - SEAT FRAME	LR098764 MASS DAMPER - SEAT FRAME Map Pocket - Mounted / To: L2999999	-	1	Enquire
<404C26	LR144653	MASS DAMPER - SEAT FRAME	LR144653 MASS DAMPER - SEAT FRAME Taurus Leather/Robust Woven Textile, Version - Commercial / From: M2000001 / To: M2055578	-	1	Enquire
<404C26	LR155657	MASS DAMPER - SEAT FRAME	LR155657 MASS DAMPER - SEAT FRAME PVU Perforated, Taurus Leather, Version - Commercial / From: M2055579	-	1	Enquire
<600E22	LR154977	MOTOR - SEAT ADJUSTER	LR154977 MOTOR - SEAT ADJUSTER RH/LH, Squab Recliner, Square Shaft / To: L2004617	-	2	Enquire
<611D27	LR074733	BRACKET - FRONT SEAT BACK FRAME	LR074733 BRACKET - FRONT SEAT BACK FRAME Version - Commercial / RH / From: M2000001	-	1	Enquire
<611D27	LR074734	BRACKET - FRONT SEAT BACK FRAME	LR074734 BRACKET - FRONT SEAT BACK FRAME Version - Commercial / LH / From: M2000001	-	1	Enquire
<613K38	LR074206	SLEEVE - HEADREST GUIDE	LR074206 SLEEVE - HEADREST GUIDE	-	4	Enquire
<06250	LR132919	BEZEL - SCREEN MOULDING	LR132919 BEZEL - SCREEN MOULDING Acorn/Lunar, RSE System - Intergrated Tablet / RH/LH	-	2	Enquire
<06250	LR132920	BEZEL - SCREEN MOULDING	LR132920 BEZEL - SCREEN MOULDING Khaki, RSE System - Intergrated Tablet / RH/LH	-	2	Enquire
<52166	LR132861	BRACKET - SUPPORT	LR132861 BRACKET - SUPPORT RSE System - Intergrated Tablet / RH/LH	-	2	Enquire
<61018	LR133475	FRAME - SEAT	LR133475 FRAME - SEAT Less Seat Adjuster / Please Consider Repair Using Repair Component LR154977, RH/LH / To: L2004617	-	2	Enquire
<61018	LR133481	FRAME - SEAT	LR133481 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / Please Consider Repair Using Repair Component LR154977, RH/LH / To: L2004617	-	2	Enquire
<61018	LR140455	FRAME - SEAT	LR140455 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / RH/LH / From: L2004618	-	2	Enquire
<61018	LR140454	FRAME - SEAT	LR140454 FRAME - SEAT Less Seat Adjuster / RH/LH / From: L2004618	-	2	Enquire
<61028	LR130576	HOLDER - IPAD	LR130576 HOLDER - IPAD Acorn/Lunar, RSE System - Intergrated Tablet / RH/LH	-	2	Enquire
<61028	LR129748	HOLDER - IPAD	LR129748 HOLDER - IPAD Khaki/Ebony, RSE System - Intergrated Tablet / RH/LH	-	2	Enquire
<62400	LR080795	SUPPORT - FRONT SEAT SQUAB	LR080795 SUPPORT - FRONT SEAT SQUAB Less Seat Lumbar / RH/LH	-	2	Enquire
<62532	LR132400	SUPPORT - SEAT BACK - LUMBAR	LR132400 SUPPORT - SEAT BACK - LUMBAR Left Side Of Both Seats	-	2	Enquire
<62532	LR132399	SUPPORT - SEAT BACK - LUMBAR	LR132399 SUPPORT - SEAT BACK - LUMBAR Right Side Of Both Seats	-	2	Enquire
<65500A	LR098715	SUPPORT - SEAT BACK - LUMBAR	LR098715 SUPPORT - SEAT BACK - LUMBAR Less Front Seat Bolster, Seat Lumbar - 4 Way / RH/LH	-	2	Enquire
<65500B	LR080793	SUPPORT - SEAT BACK - LUMBAR	LR080793 SUPPORT - SEAT BACK - LUMBAR Front Seat Power Bolster, Seat Lumbar - 4 Way / RH/LH	-	2	Enquire
HB1	LR039503	BOLT	LR039503 BOLT M10 x 1.0, Squab To Cushion	-	8	Enquire
HB2	LR093561	BOLT	LR093561 BOLT M6x1x16	-	-	Enquire
HC1	LR096817	CLIP	LR096817 CLIP 7 x 12, Fir Tree Clip, Support	-	-	Enquire
HC2	LR138647	CLIP	LR138647 CLIP RSE System - Intergrated Tablet	-	4	Enquire
HS1	LR118864	SCREW	LR118864 SCREW RSE System - Intergrated Tablet / M6 X 16	-	2	Enquire
