Name: Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Electric Engine Battery-PHEV) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Electric Engine Battery-PHEV) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Electric Engine Battery-PHEV)...

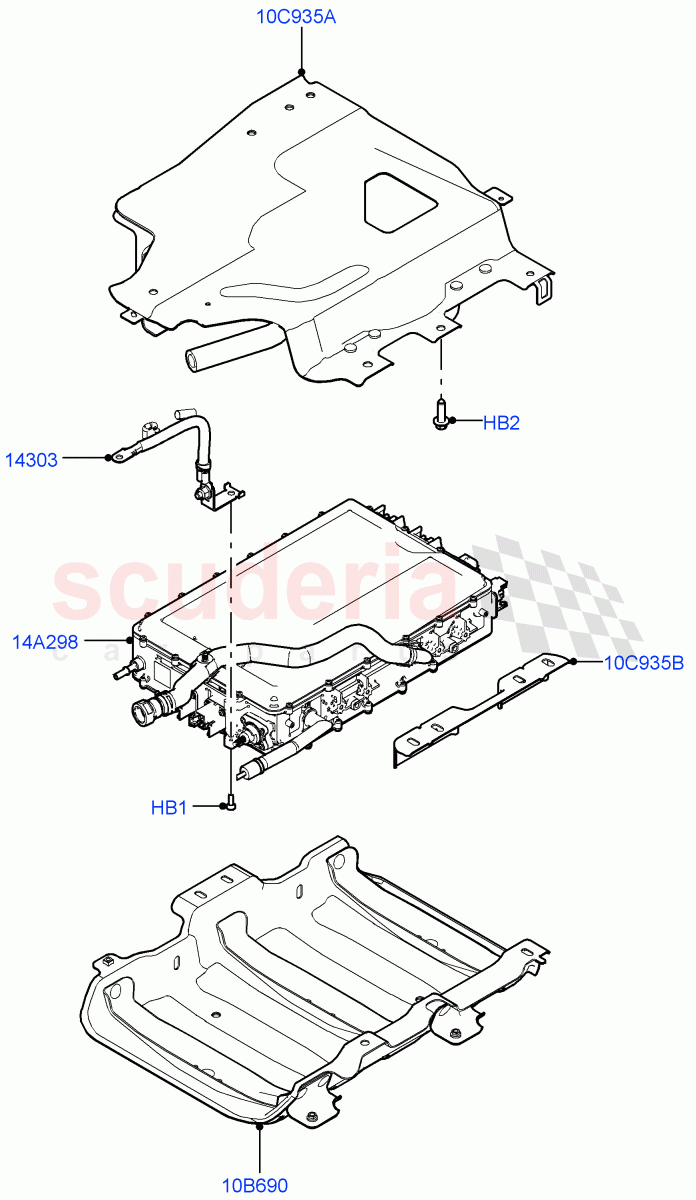

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR090446	BOLT	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149113	CABLE - BATTERY NEGATIVE	$207.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131945	SHIELD - BATTERY CHARGER	$483.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142568	JUNCTION BOX	$3,414.13	To Order
	LR161312	JUNCTION BOX	$3,414.13	To Order
	LR162023	JUNCTION BOX	$3,414.13	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR146027	BRACKET - BATTERY CHARGER	$295.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133635	BRACKET - BATTERY CHARGER	$85.96	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: M2000001 IN STOCK	$2.23	1
HB2	LR090446	BOLT	LR090446 BOLT M10 X 30MM / From: M2000001	$1.88	4
10B690	LR131945	SHIELD - BATTERY CHARGER	LR131945 SHIELD - BATTERY CHARGER Lower / From: M2000001	$483.20	1
10C935A	LR146027	BRACKET - BATTERY CHARGER	LR146027 BRACKET - BATTERY CHARGER Upper / From: M2000001	$295.16	1
10C935B	LR133635	BRACKET - BATTERY CHARGER	LR133635 BRACKET - BATTERY CHARGER Left Side / From: M2000001	$85.96	1
14A298	LR142568	JUNCTION BOX	LR142568 JUNCTION BOX Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: M2000001 / To: M2032085	$3,414.13	1
14A298	LR161312	JUNCTION BOX	LR161312 JUNCTION BOX Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: M2032086 / To: M2062085	$3,414.13	1
14A298	LR162023	JUNCTION BOX	LR162023 JUNCTION BOX Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: M2032086 / To: N2066958	$3,414.13	1
14A298	LR162694	JUNCTION BOX	LR162694 JUNCTION BOX Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: N2066959	$3,298.64	1
14303	LR149113	CABLE - BATTERY NEGATIVE	LR149113 CABLE - BATTERY NEGATIVE Ground Wire / From: M2000001	$207.30	1
