Front Knuckle And Hub ((V) Fromm2000001)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Front Knuckle And Hub ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR100039 BOLT $5.04 To Order
Photo Part No Description Price (each) Stock
KYG000230 BOLT $3.08 IN STOCK
Photo Part No Description Price (each) Stock
LR042803 BOLT $1.19 IN STOCK
Photo Part No Description Price (each) Stock
FY110056 NUT $4.32 IN STOCK
Photo Part No Description Price (each) Stock
LR024151 NUT AND WASHER - HEX. $9.59 IN STOCK
Photo Part No Description Price (each) Stock
LR043873 SCREW - PAN - TORX $1.05 IN STOCK
Photo Part No Description Price (each) Stock
LR146814 HUB - WHEEL $322.00 To Order
LR147396 HUB - WHEEL $318.39 To Order
Photo Part No Description Price (each) Stock
LR136696 EXTENSION - FRONT KNUCKLE $15.91 To Order
LR136701 EXTENSION - FRONT KNUCKLE $15.91 To Order
Photo Part No Description Price (each) Stock
LR129159 CAP - BLEED SCREW $3.47 To Order
Photo Part No Description Price (each) Stock
LR153467 KNUCKLE - FRONT WHEEL $609.29 To Order
LR153468 KNUCKLE - FRONT WHEEL $609.29 To Order
LR162782 KNUCKLE - FRONT WHEEL $609.29 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR141056 DUCT - BRAKE DISC COOLING $25.04 To Order
LR141059 DUCT - BRAKE DISC COOLING $25.04 To Order
Photo Part No Description Price (each) Stock
LR130458 DUCT - BRAKE CALIPER COOLING $35.55 To Order
LR130459 DUCT - BRAKE CALIPER COOLING $35.55 To Order
View All

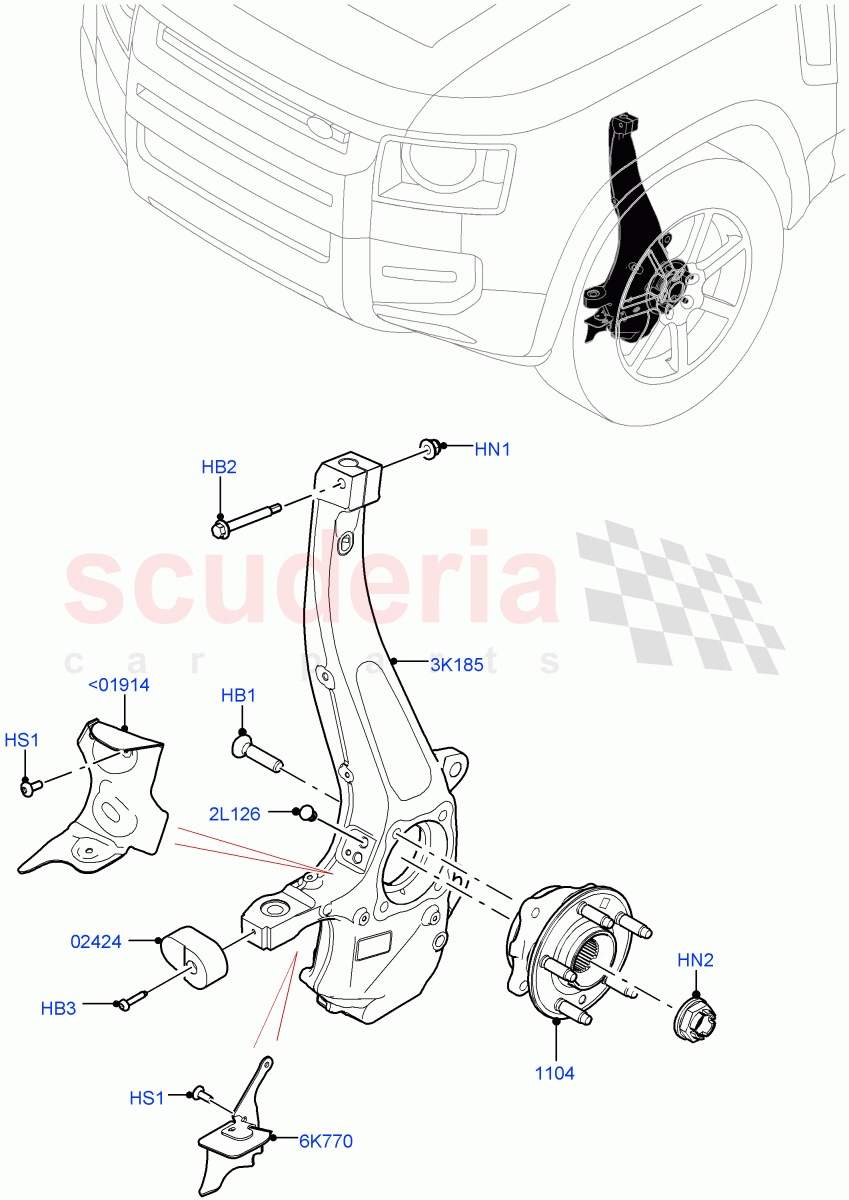

Front Knuckle And Hub ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01914 LR130458
DUCT - BRAKE CALIPER COOLING
RH / From: M2000001 		$35.55 1
<01914 LR130459
DUCT - BRAKE CALIPER COOLING
LH / From: M2000001 		$35.55 1
HB1 LR100039
BOLT
M12 X 45MM / From: M2000001 		$5.04 8
HB2 KYG000230
BOLT
Hexagonal Head, M10 x 70MM / From: M2000001
IN STOCK 		$3.08 2
HB3 LR042803
BOLT
255/60 R20 A/S Tyre, Disc And Caliper Size-Frt 19/RR 19, Tyre Recommended Plate-English / M6 x 28MM, Torx / From: M2000001
IN STOCK 		$1.19 2
HN1 FY110056
NUT
M10 / From: M2000001
IN STOCK 		$4.32 2
HN2 LR024151
NUT AND WASHER - HEX.
M24X2.0 / From: M2000001
IN STOCK 		$9.59 2
HS1 LR043873
SCREW - PAN - TORX
M6 X 16MM, Torx / From: M2000001
IN STOCK 		$1.05 8
2L126 LR129159
CAP - BLEED SCREW
From: M2000001 		$3.47 2
3K185 LR153467
KNUCKLE - FRONT WHEEL
RH / From: M2000001 / To: N2066120 		$609.29 1
3K185 LR153468
KNUCKLE - FRONT WHEEL
LH / From: M2000001 / To: N2066120 		$609.29 1
3K185 LR162782
KNUCKLE - FRONT WHEEL
RH / From: N2066121 		$609.29 1
3K185 LR180158
KNUCKLE - FRONT WHEEL
LH / From: N2066121 		$871.89 1
6K770 LR141056
DUCT - BRAKE DISC COOLING
RH, Disc - Brake / From: M2000001 		$25.04 1
6K770 LR141059
DUCT - BRAKE DISC COOLING
LH, Disc - Brake / From: M2000001 		$25.04 1
1104 LR146814
HUB - WHEEL
Disc And Caliper Size-Frt 19/RR 19 / RH/LH, With Bearing / From: M2000001 		$322.00 2
1104 LR147396
HUB - WHEEL
Disc And Caliper Size-Frt 20/RR 20 / RH/LH, With Bearing / From: M2000001 		$318.39 2
02424 LR136696
EXTENSION - FRONT KNUCKLE
255/60R20 113H AT, Disc And Caliper Size-Frt 19/RR 19, Tyre Recommended Plate-English / RH / From: M2000001 		$15.91 1
02424 LR136701
EXTENSION - FRONT KNUCKLE
255/60R20 113H AT, Disc And Caliper Size-Frt 19/RR 19, Tyre Recommend Plate-English/French / LH / From: M2000001 		$15.91 1
