Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20P6 Petrol High, Standard Wheelbase) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20P6 Petrol High, Standard Wheelbase) ((V)...

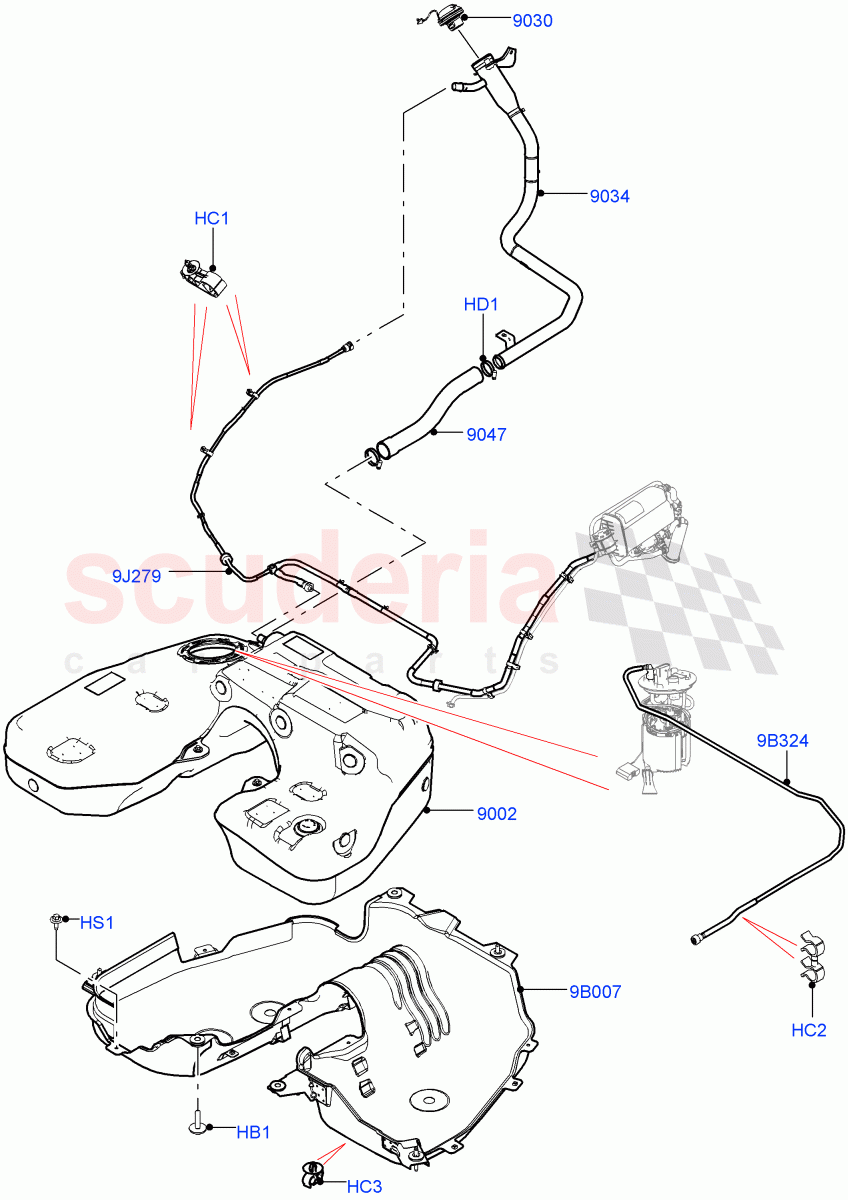

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093364	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133513	CLIP - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093728	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136780	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053665	CAP - FUEL TANK FILLER	Enquire	To Order
	202123475	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143377	PIPE - FUEL FILLER	Enquire	To Order
	LR128355	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128360	HOSE - FILLER PIPE	Enquire	To Order
	LR128361	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148067	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125885	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132695	TUBE - FUEL VAPOUR	Enquire	To Order
	LR132696	TUBE - FUEL VAPOUR	Enquire	To Order
	LR146954	TUBE - FUEL VAPOUR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR093364	BOLT	LR093364 BOLT Hexagonal Head, M10 X 50MM, To Body / From: M2000001	-	7	Enquire
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Breather Pipe, Plastic / From: M2000001	-	4	Enquire
HC2	LR133513	CLIP - PIPE	LR133513 CLIP - PIPE Double, Feed / From: M2000001	-	1	Enquire
HC3	LR093728	CLIP - HOSE	LR093728 CLIP - HOSE Shield / From: M2000001	-	2	Enquire
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: M2000001	-	1	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001	-	5	Enquire
9B007	LR148067	SHIELD	LR148067 SHIELD Cradle / From: M2000001	-	1	Enquire
9B324	LR125885	TUBE - FUEL	LR125885 TUBE - FUEL Feed / From: M2000001	-	1	Enquire
9J279	LR132695	TUBE - FUEL VAPOUR	LR132695 TUBE - FUEL VAPOUR Petrol Tank With Leak Detection / Fuel Tank Ventilation Pipe / From: M2000001 / To: M2028919	-	1	Enquire
9J279	LR132696	TUBE - FUEL VAPOUR	LR132696 TUBE - FUEL VAPOUR Pet Tank W/O Leak Det - Std Filter / Fuel Tank Ventilation Pipe / From: M2000001 / To: M2028919	-	1	Enquire
9J279	LR146954	TUBE - FUEL VAPOUR	LR146954 TUBE - FUEL VAPOUR Pet Tank W/O Leak Det - Std Filter / Fuel Tank Ventilation Pipe / From: M2028920	-	1	Enquire
9J279	LR146952	TUBE - FUEL VAPOUR	LR146952 TUBE - FUEL VAPOUR Petrol Tank With Leak Detection / Fuel Tank Ventilation Pipe / From: M2028920	-	1	Enquire
9002	LR136780	TANK - FUEL	LR136780 TANK - FUEL From: M2000001	-	1	Enquire
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: M2000001	-	1	Enquire
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: M2000001	-	1	Enquire
9034	LR143377	PIPE - FUEL FILLER	LR143377 PIPE - FUEL FILLER Fuel Tank Filler Neck - DMTL / From: M2000001	-	1	Enquire
9034	LR128355	PIPE - FUEL FILLER	LR128355 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: M2000001	-	1	Enquire
9047	LR128360	HOSE - FILLER PIPE	LR128360 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded / Fuel Tank, Inlet / From: M2000001	-	1	Enquire
9047	LR128361	HOSE - FILLER PIPE	LR128361 HOSE - FILLER PIPE Fuel Tank Filler Neck - DMTL / Fuel Tank, Inlet / From: M2000001	-	1	Enquire
