Name: Rear Exhaust System (Nitra Plant Build) (3.0L AJ20P6 Petrol High)
Rating: 4.2 (1 reviews)

View All

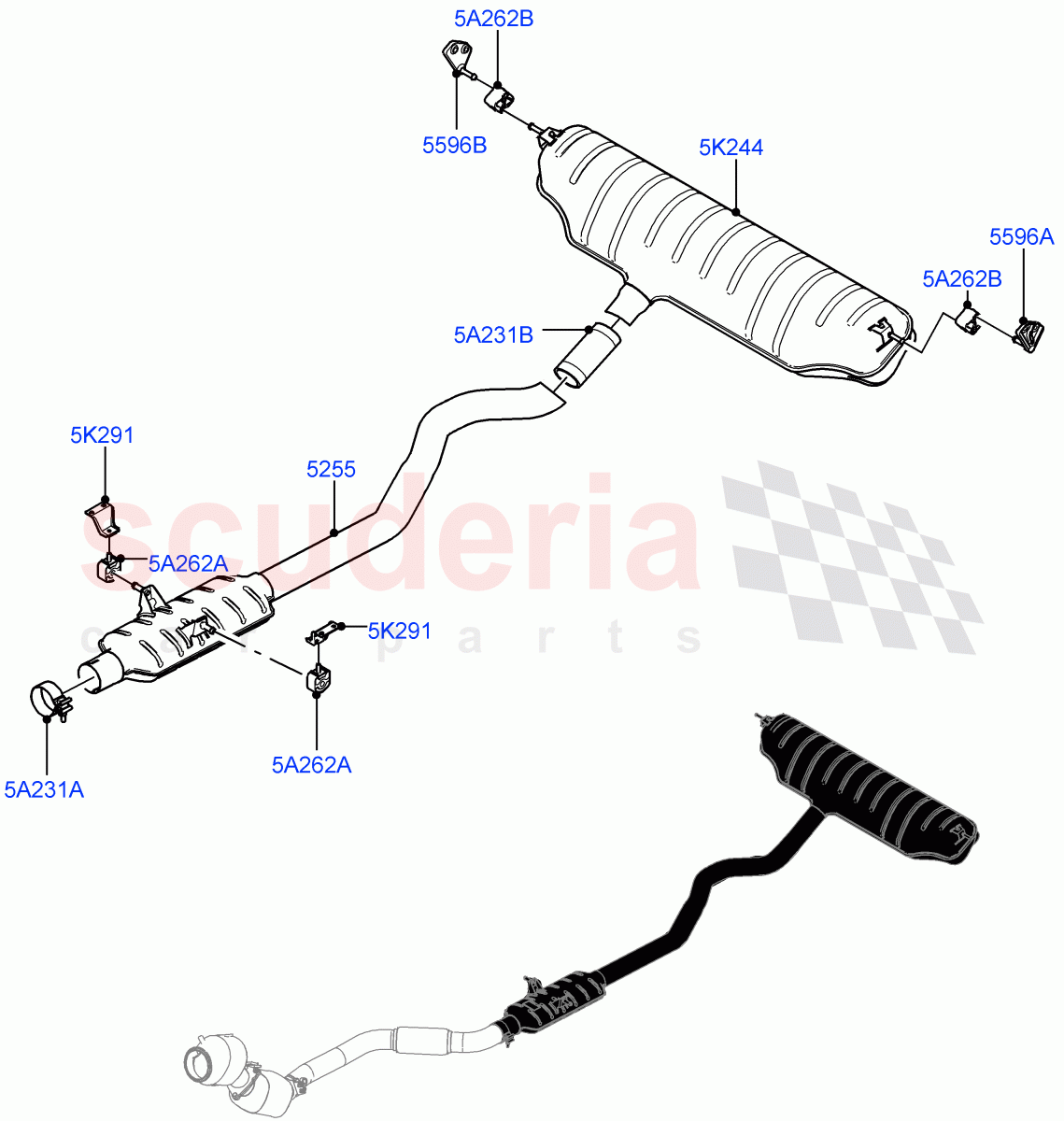

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR137014	BRACKET - EXHAUST PIPE MOUNTING	$32.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137013	BRACKET - EXHAUST PIPE MOUNTING	$32.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125187	CLAMP	$31.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138586	CLAMP - EXHAUST	$96.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125106	INSULATOR - RUBBER	$30.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
5A231A	LR125187	CLAMP	LR125187 CLAMP 75MM, Front	$31.51	1
5A231B	LR138586	CLAMP - EXHAUST	LR138586 CLAMP - EXHAUST 75MM, Rear	$96.37	1
5A262A	LR125106	INSULATOR - RUBBER	LR125106 INSULATOR - RUBBER Front	$30.81	2
5A262B	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER Rear	$23.23	2
5K244	LR137022	MUFFLER AND PIPE - REAR	LR137022 MUFFLER AND PIPE - REAR To: L2013846	$921.27	1
5K244	LR146019	MUFFLER AND PIPE - REAR	LR146019 MUFFLER AND PIPE - REAR From: L2013847	$921.27	1
5K291	LR137023	BRACKET - REAR MUFFLER	LR137023 BRACKET - REAR MUFFLER Front, Muffler, RH/LH / To: N2068987	$31.63	2
5K291	LR160815	BRACKET - REAR MUFFLER	LR160815 BRACKET - REAR MUFFLER Front, Muffler, RH/LH / From: N2068988	$31.63	1
5255	LR137020	MUFFLER - CENTRE	LR137020 MUFFLER - CENTRE Standard Wheelbase	$704.27	1
5255	LR137019	MUFFLER - CENTRE	LR137019 MUFFLER - CENTRE Short Wheelbase	$978.60	1
5596A	LR137014	BRACKET - EXHAUST PIPE MOUNTING	LR137014 BRACKET - EXHAUST PIPE MOUNTING LH, For Rear Muffler	$32.38	1
5596B	LR137013	BRACKET - EXHAUST PIPE MOUNTING	LR137013 BRACKET - EXHAUST PIPE MOUNTING RH, For Rear Muffler	$32.38	1

Rear Exhaust System (Nitra Plant Build) (3.0L Aj20P6 Petrol High)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]
