Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L Aj20P6 Petrol High) ((V) Froml2000001)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.61 IN STOCK
Photo Part No Description Price (each) Stock
LR066438 SCREW $2.94 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR128304 HOSE - WATER $87.25 To Order
Photo Part No Description Price (each) Stock
LR123038 TUBE - HEATER WATER $179.91 To Order
LR140702 TUBE - HEATER WATER $231.22 To Order
LR155132 TUBE - HEATER WATER $235.02 To Order
Photo Part No Description Price (each) Stock
LR133678 HOSE - OIL COOLER $89.50 To Order
LR144619 HOSE - OIL COOLER $96.64 To Order
Photo Part No Description Price (each) Stock
LR123724 HOSE - OIL COOLER $96.64 To Order
Photo Part No Description Price (each) Stock
LR129573 BRACKET - OIL COOLER $28.28 To Order
Photo Part No Description Price (each) Stock
LR128321 HOSE - WATER $104.76 To Order
Photo Part No Description Price (each) Stock
LR137873 HOSE - RADIATOR $172.75 To Order
Photo Part No Description Price (each) Stock
LR128319 HOSE - WATER $56.46 To Order
Photo Part No Description Price (each) Stock
LR123077 HOSE - COOLING SYSTEM $105.26 To Order
Photo Part No Description Price (each) Stock
104123735 HOSE - COOLANT BLEED $102.85 To Order
Photo Part No Description Price (each) Stock
LR128317 HOSE - WATER $113.27 IN STOCK
Photo Part No Description Price (each) Stock
LR123058 HOSE - RADIATOR $49.15 To Order
LR139058 HOSE - RADIATOR $49.89 To Order
Photo Part No Description Price (each) Stock
LR123073 HOSE - RADIATOR $265.52 To Order
LR139054 HOSE - RADIATOR $152.65 To Order
Photo Part No Description Price (each) Stock
LR133667 HOSE - COOLING SYSTEM $127.75 To Order
Photo Part No Description Price (each) Stock
LR123064 HOSE - RADIATOR $68.80 To Order
Photo Part No Description Price (each) Stock
LR123725 HOSE $71.23 To Order
Photo Part No Description Price (each) Stock
LR123060 SEPARATOR - COOLANT DEGAS $108.66 To Order
Photo Part No Description Price (each) Stock
LR129397 VALVE - COOLANT FLOW CONTROL $131.72 To Order
Photo Part No Description Price (each) Stock
LR132647 PIPE - MOTOR/GENERATOR COOLING $56.55 To Order
LR144584 PIPE - MOTOR/GENERATOR COOLING $56.55 To Order
Photo Part No Description Price (each) Stock
LR132648 PIPE - MOTOR/GENERATOR COOLING $56.55 To Order
View All

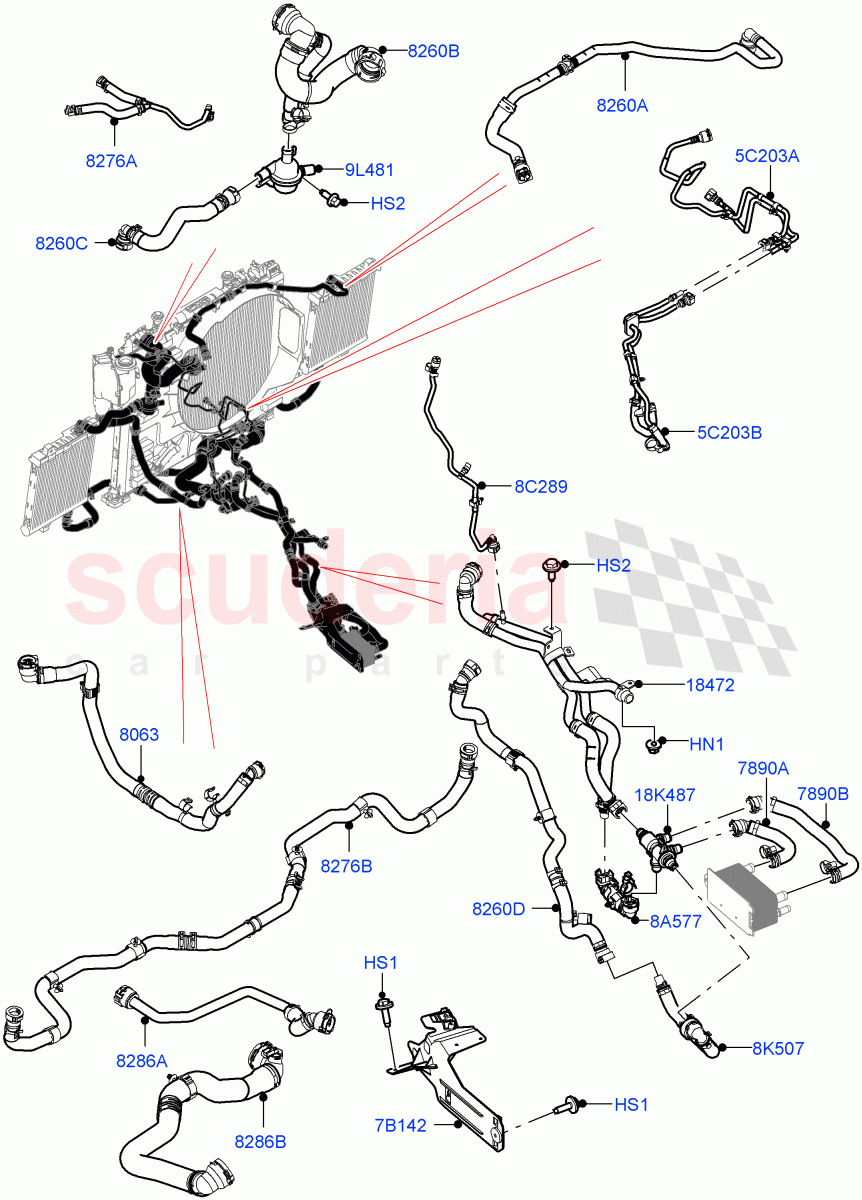

Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L AJ20P6 Petrol High) ((V) FROML2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6
IN STOCK 		$0.61 1
HS1 LR066438
SCREW
Bracket, Hexagonal Head, M6 X 20MM 		$2.94 2
HS2 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.59 2
5C203A LR132647
PIPE - MOTOR/GENERATOR COOLING
RH, Engine Control Module (ECM) / To: L2017194 		$56.55 1
5C203A LR144584
PIPE - MOTOR/GENERATOR COOLING
RH, Engine Control Module (ECM) / From: L2017195 		$56.55 1
5C203B LR132648
PIPE - MOTOR/GENERATOR COOLING
LH, Engine Control Module (ECM) 		$56.55 1
7B142 LR129573
BRACKET - OIL COOLER 		$28.28 1
8A577 LR133667
HOSE - COOLING SYSTEM
Inlet Pipe, Valve To Low Temperature Radiator 		$127.75 1
8C289 LR123064
HOSE - RADIATOR
Engine Ventilation 		$68.80 1
8K507 LR123725
HOSE
Lower, To Cylinder Head 		$71.23 1
9L481 LR123060
SEPARATOR - COOLANT DEGAS 		$108.66 1
18K487 LR129397
VALVE - COOLANT FLOW CONTROL
5 Way 		$131.72 1
7890A LR133678
HOSE - OIL COOLER
Inlet Pipe / To: L2012734 		$89.50 1
7890A LR144619
HOSE - OIL COOLER
Inlet Pipe / From: L2012735 		$96.64 1
7890B LR123724
HOSE - OIL COOLER
Outlet pipe 		$96.64 1
8063 LR128304
HOSE - WATER
From Engine To Expansion Tank, Lower 		$87.25 1
8260A LR128321
HOSE - WATER
Auxiliary Radiator, Inlet 		$104.76 1
8260B LR137873
HOSE - RADIATOR
Radiator, Top 		$172.75 1
8260C LR128319
HOSE - WATER
Auxiliary Radiator, Outlet 		$56.46 1
8260D LR123077
HOSE - COOLING SYSTEM
To Cylinder Head, Upper 		$105.26 1
8276A 104123735
HOSE - COOLANT BLEED
From Engine To Expansion Tank, Radiator To Expansion Tank Bleed 		$102.85 1
8276B LR128317
HOSE - WATER
Connects Auxiliary Radiators
IN STOCK 		$113.27 1
8286A LR123058
HOSE - RADIATOR
LH, Attaches To Bottom Of Radiator / To: L2007298 		$49.15 1
8286A LR139058
HOSE - RADIATOR
LH, Attaches To Bottom Of Radiator / From: L2007299 		$49.89 1
8286B LR123073
HOSE - RADIATOR
RH, Attaches To Bottom Of Radiator / To: L2007298 		$265.52 1
8286B LR139054
HOSE - RADIATOR
RH, Attaches To Bottom Of Radiator / From: L2007299 		$152.65 1
18472 LR123038
TUBE - HEATER WATER
To: M2023822 		$179.91 1
18472 LR140702
TUBE - HEATER WATER
5 Way / From: M2023823 / To: M2058677 		$231.22 1
18472 LR155132
TUBE - HEATER WATER
5 Way / From: M2058678 		$235.02 1
