Transfer Drive Components (Nitra Plant Build) (2.0L AJ200P Hi PHEV, With 2 Spd Trans Case With Ctl Trac, 2.0L I4 DSL HIGH DOHC AJ200, 3.0L AJ20P6 Petrol High, 2.0L I4 High DOHC AJ200 Petrol, 5.0 Petrol AJ133 DOHC CDA) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Transfer Drive Components (Nitra Plant Build) (2.0L AJ200P Hi PHEV, With 2 Spd Trans Case With Ctl...

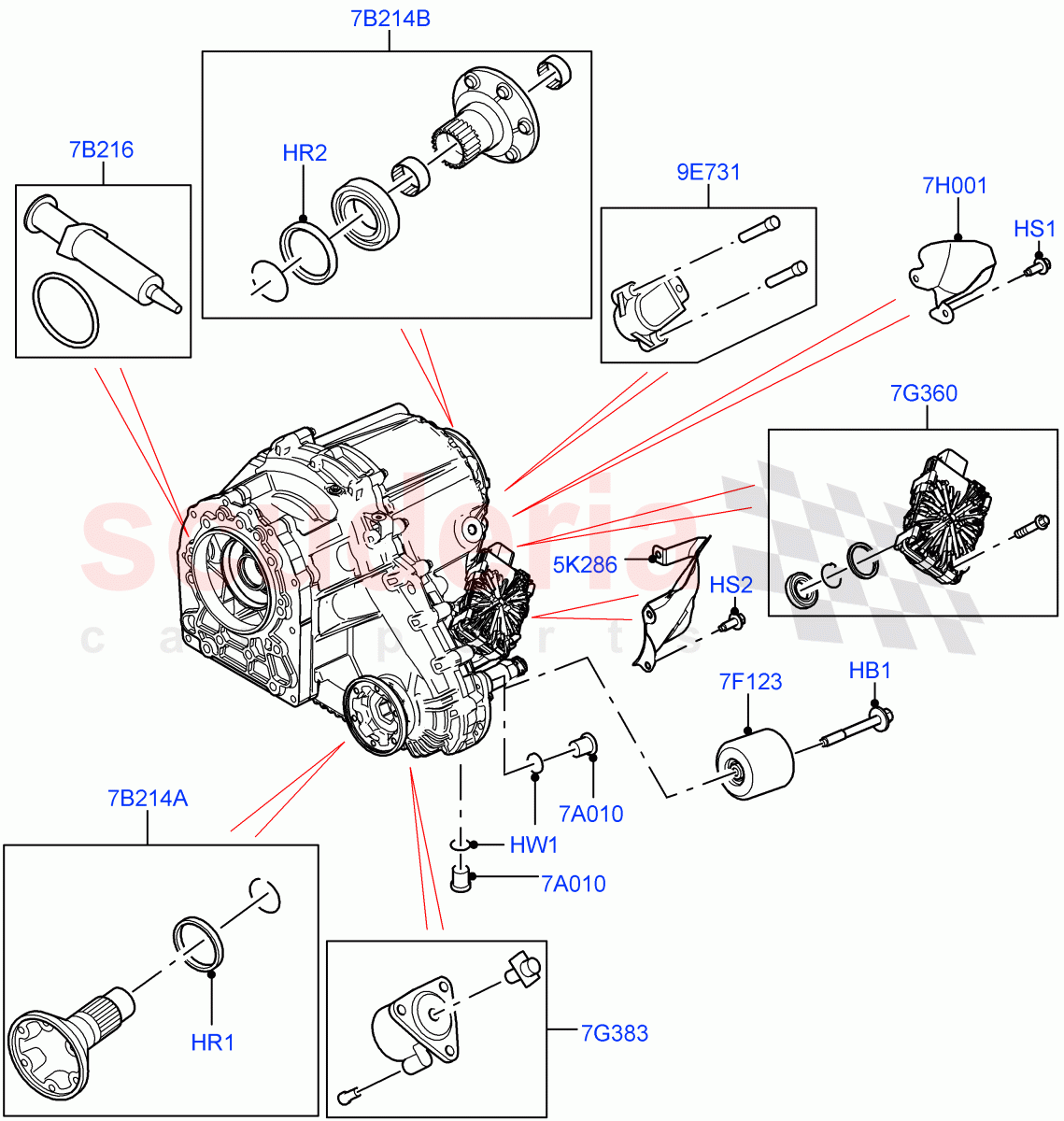

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR126162	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086041	SEAL - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086042	SEAL - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYF500030	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082660	HEAT SHIELD - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYB500020	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094511	DAMPER - VIBRATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117069	MODULE - TRANSFER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082661	HEAT SHIELD - TRANSFER CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111510	SENSOR - TRIPMINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101968	FLANGE - PROPSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140180	KIT - FLANGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR126162	BOLT - HEX.HEAD	LR126162 BOLT - HEX.HEAD Bolt And Washer, M10 X 80MM	-	1	Enquire
HR1	LR086041	SEAL - SPECIAL	LR086041 SEAL - SPECIAL Seal	-	1	Enquire
HR2	LR086042	SEAL - SPECIAL	LR086042 SEAL - SPECIAL Seal, Oil - Rear Output Flange	-	1	Enquire
HS1	RYG500160	SCREW	RYG500160 SCREW Heatshield, Hexagonal Head, M6 X 14MM	-	2	Enquire
HS2	FA106126	SCREW	FA106126 SCREW 5.0 Petrol AJ133 DOHC CDA / Heatshield, Hexagonal Head, M6 x 12MM / From: M2000001	-	3	Enquire
HW1	IYF500030	WASHER	IYF500030 WASHER M16, Plug - Oil Drain	-	2	Enquire
5K286	LR082660	HEAT SHIELD - TRANSMISSION	LR082660 HEAT SHIELD - TRANSMISSION 5.0 Petrol AJ133 DOHC CDA / From: M2000001	-	1	Enquire
7A010	IYB500020	PLUG - OIL DRAIN	IYB500020 PLUG - OIL DRAIN Drain, FILLER, M16	-	2	Enquire
7B214A	LR101968	FLANGE - PROPSHAFT	LR101968 FLANGE - PROPSHAFT Front, Propshaft	-	1	Enquire
7B214B	LR140180	KIT - FLANGE	LR140180 KIT - FLANGE Propshaft, Rear	-	1	Enquire
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING	-	1	Enquire
7F123	LR094511	DAMPER - VIBRATION	LR094511 DAMPER - VIBRATION	-	1	Enquire
7G360	LR117069	MODULE - TRANSFER BOX	LR117069 MODULE - TRANSFER BOX	-	1	Enquire
7G383	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	IGF500011 SOLENOID - ELECTRONIC PRESSURE CTL	-	1	Enquire
7H001	LR082661	HEAT SHIELD - TRANSFER CASE	LR082661 HEAT SHIELD - TRANSFER CASE	-	1	Enquire
9E731	LR111510	SENSOR - TRIPMINDER	LR111510 SENSOR - TRIPMINDER High/Low Position Sensor	-	1	Enquire
