Rear Seat Covers (Short Wheelbase, Windsor Perforated/Geotex/Windsor, Rr Seat 40/20/40 Fixed...

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Seat Covers (Short Wheelbase, Windsor Perforated/Geotex/Windsor, Rr Seat 40/20/40 Fixed...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR138250 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR057150 RING - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR132884 WASHER Enquire To Order
LR132885 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR138251 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR133102 PIN - ISOFIX Enquire To Order
LR133103 PIN - ISOFIX Enquire To Order
Photo Part No Description Price (each) Stock
LR147153 COVER - REAR SEAT CUSHION Enquire To Order
LR147152 COVER - REAR SEAT CUSHION Enquire To Order
LR147151 COVER - REAR SEAT CUSHION Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR130768 ARMREST - REAR SEAT Enquire To Order
LR130770 ARMREST - REAR SEAT Enquire To Order
LR157711 ARMREST - REAR SEAT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR142080 BOLSTER - REAR SEAT BACK Enquire To Order
LR146484 BOLSTER - REAR SEAT BACK Enquire To Order
LR157250 BOLSTER - REAR SEAT BACK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR147198 COVER - REAR SEAT BACK Enquire To Order
LR147197 COVER - REAR SEAT BACK Enquire To Order
LR147196 COVER - REAR SEAT BACK Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR147210 COVER - REAR SEAT BACK Enquire To Order
LR147209 COVER - REAR SEAT BACK Enquire To Order
LR147208 COVER - REAR SEAT BACK Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR130837 COVER - ARMREST Enquire To Order
LR147247 COVER - ARMREST Enquire To Order
LR157729 COVER - ARMREST Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR130872 HEADREST Enquire To Order
LR130873 HEADREST Enquire To Order
Photo Part No Description Price (each) Stock
LR130923 HEADREST Enquire To Order
LR149932 HEADREST Enquire To Order
View All

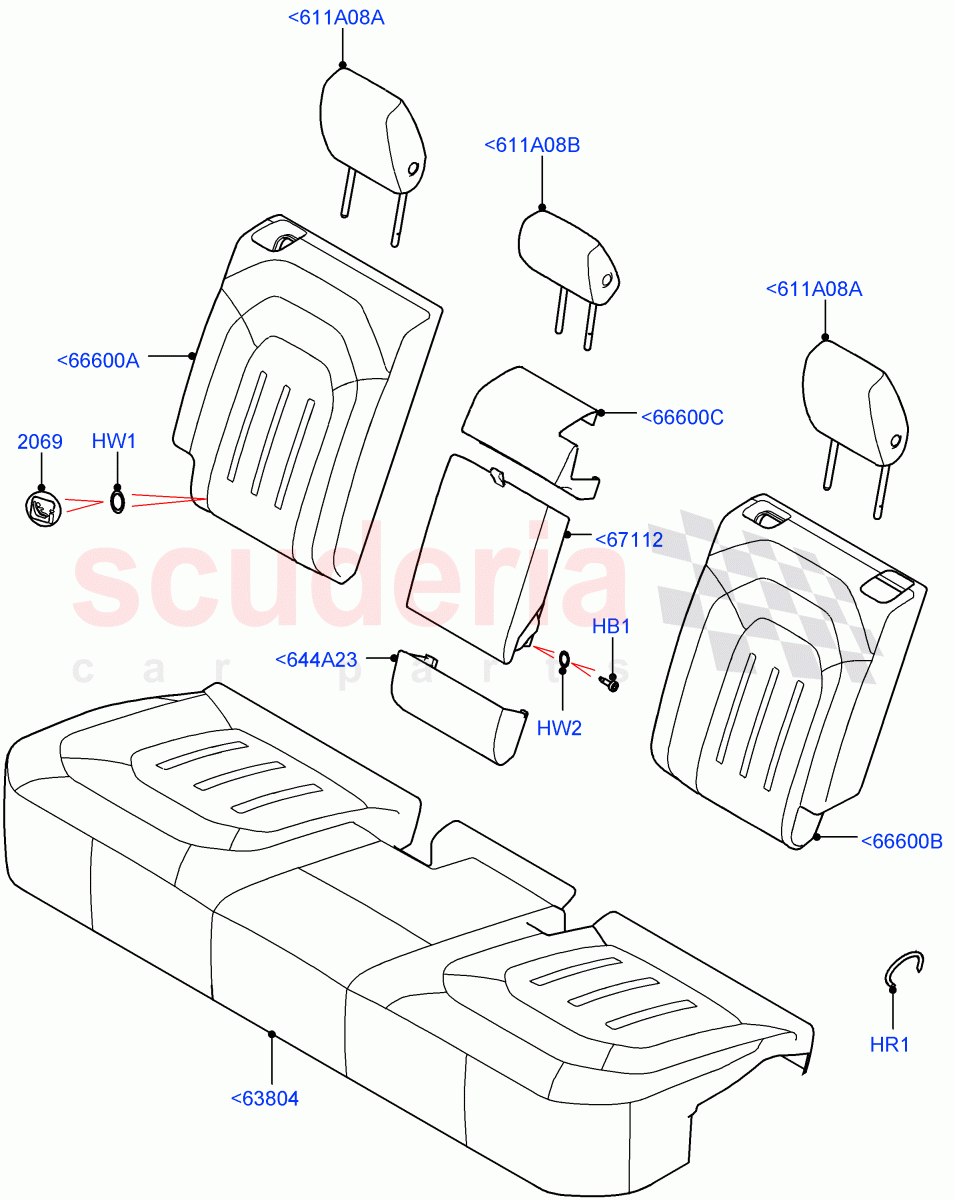

Rear Seat Covers (Short Wheelbase, Windsor Perforated/Geotex/Windsor, Rr Seat 40/20/40 Fixed Cushion) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<611A08A LR130872
HEADREST
Acorn/Lunar / RH/LH / From: M2000001 		- 2 Enquire
<611A08A LR130873
HEADREST
Khaki/Ebony / RH/LH / From: M2000001 		- 2 Enquire
<611A08B LR130923
HEADREST
Acorn/Lunar / Centre / From: M2000001 		- 1 Enquire
<611A08B LR149932
HEADREST
Khaki/Ebony / Centre / From: M2000001 		- 1 Enquire
<644A23 LR142080
BOLSTER - REAR SEAT BACK
Acorn/Lunar / Centre / From: M2000001 / To: M2065456 		- 1 Enquire
<644A23 LR146484
BOLSTER - REAR SEAT BACK
Ebony Black/Ebony Black Interior / Centre / From: M2000001 / To: M2065456 		- 1 Enquire
<644A23 LR157250
BOLSTER - REAR SEAT BACK
Acorn/Lunar / Centre / From: M2065457 		- 1 Enquire
<644A23 LR157251
BOLSTER - REAR SEAT BACK
Khaki/Ebony / Centre / From: M2065457 		- 1 Enquire
<63804 LR147153
COVER - REAR SEAT CUSHION
Ebony Black/Ebony Black Interior / From: M2000001 / To: M2065456 		- 1 Enquire
<63804 LR147152
COVER - REAR SEAT CUSHION
Khaki/Ebony / From: M2000001 / To: M2065456 		- 1 Enquire
<63804 LR147151
COVER - REAR SEAT CUSHION
Acorn/Lunar / From: M2000001 / To: M2065456 		- 1 Enquire
<63804 LR157125
COVER - REAR SEAT CUSHION
Acorn/Lunar / From: M2065457 		- 1 Enquire
<63804 LR157126
COVER - REAR SEAT CUSHION
Khaki/Ebony / From: M2065457 		- 1 Enquire
<63804 LR157127
COVER - REAR SEAT CUSHION
Ebony Black/Ebony Black Interior / From: M2065457 / To: N2999999 		- 1 Enquire
<63804 LR169988
COVER - REAR SEAT CUSHION
Ebony Black/Ebony Black Interior / From: P2000001 		- 1 Enquire
<63804 LR169989
COVER - REAR SEAT CUSHION
Ebony/Vintage Tan / From: P2000001 		- 1 Enquire
<63804 LR169990
COVER - REAR SEAT CUSHION
Light Oyster/Lunar / From: P2000001 		- 1 Enquire
<66600A LR147198
COVER - REAR SEAT BACK
Ebony Black/Ebony Black Interior / RH / From: M2000001 / To: M2065456 		- 1 Enquire
<66600A LR147197
COVER - REAR SEAT BACK
Khaki/Ebony / RH / From: M2000001 / To: M2065456 		- 1 Enquire
<66600A LR147196
COVER - REAR SEAT BACK
Acorn/Lunar / RH / From: M2000001 / To: M2065456 		- 1 Enquire
<66600A LR157564
COVER - REAR SEAT BACK
Acorn/Lunar / RH / From: M2065457 		- 1 Enquire
<66600A LR157565
COVER - REAR SEAT BACK
Khaki/Ebony / RH / From: M2065457 		- 1 Enquire
<66600A LR157567
COVER - REAR SEAT BACK
Ebony Black/Ebony Black Interior / RH / From: M2065457 / To: N2999999 		- 1 Enquire
<66600A LR170231
COVER - REAR SEAT BACK
Ebony Black/Ebony Black Interior / RH / From: P2000001 		- 1 Enquire
<66600A LR170232
COVER - REAR SEAT BACK
Ebony/Vintage Tan / RH / From: P2000001 		- 1 Enquire
<66600A LR170233
COVER - REAR SEAT BACK
Light Oyster/Lunar / RH / From: P2000001 		- 1 Enquire
<66600B LR147210
COVER - REAR SEAT BACK
Ebony Black/Ebony Black Interior / LH / From: M2000001 / To: M2065456 		- 1 Enquire
<66600B LR147209
COVER - REAR SEAT BACK
Khaki/Ebony / LH / From: M2000001 / To: M2065456 		- 1 Enquire
<66600B LR147208
COVER - REAR SEAT BACK
Acorn/Lunar / LH / From: M2000001 / To: M2065456 		- 1 Enquire
<66600B LR157644
COVER - REAR SEAT BACK
Acorn/Lunar / LH / From: M2065457 		- 1 Enquire
<66600B LR157645
COVER - REAR SEAT BACK
Khaki/Ebony / LH / From: M2065457 		- 1 Enquire
<66600B LR157646
COVER - REAR SEAT BACK
Ebony Black/Ebony Black Interior / LH / From: M2065457 / To: N2999999 		- 1 Enquire
<66600B LR170153
COVER - REAR SEAT BACK
Ebony Black/Ebony Black Interior / LH / From: P2000001 		- 1 Enquire
<66600B LR170154
COVER - REAR SEAT BACK
Ebony/Vintage Tan / LH / From: P2000001 		- 1 Enquire
<66600B LR170155
COVER - REAR SEAT BACK
Light Oyster/Lunar / LH / From: P2000001 		- 1 Enquire
<66600C LR130837
COVER - ARMREST
Ebony Black/Ebony Black Interior / Upper Center / From: M2000001 / To: M2065456 		- 1 Enquire
<66600C LR147247
COVER - ARMREST
Acorn/Lunar / Upper Center / From: M2000001 / To: M2065456 		- 1 Enquire
<66600C LR157729
COVER - ARMREST
Acorn/Lunar / Upper Center / From: M2065457 		- 1 Enquire
<66600C LR157730
COVER - ARMREST
Ebony Black/Ebony Black Interior / Upper Center / From: M2065457 		- 1 Enquire
<67112 LR130768
ARMREST - REAR SEAT
Ebony Black/Ebony Black Interior / From: M2000001 / To: M2065456 		- 1 Enquire
<67112 LR130770
ARMREST - REAR SEAT
Acorn/Lunar / From: M2000001 / To: M2065456 		- 1 Enquire
<67112 LR157711
ARMREST - REAR SEAT
Acorn/Lunar / From: M2065457 		- 1 Enquire
<67112 LR157713
ARMREST - REAR SEAT
Ebony Black/Ebony Black Interior / From: M2065457 		- 1 Enquire
HB1 LR138250
BOLT
Rear Centre Armrest With Cupholder 		- 4 Enquire
HR1 LR057150
RING - RETAINING
Hog Rings To Attach Trim Covers To Foam Pads 		- - Enquire
HW1 LR132884
WASHER
iSize 		- 4 Enquire
HW1 LR132885
WASHER
ISO Fix 		- 4 Enquire
HW2 LR138251
WASHER
Rear Centre Armrest With Cupholder 		- 4 Enquire
2069 LR133102
PIN - ISOFIX
iSize 		- 4 Enquire
2069 LR133103
PIN - ISOFIX
ISO Fix 		- 4 Enquire
