Front Brake Pipes (Lhd)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Front Brake Pipes (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
LR033441 CLIP - SPECIAL $4.31 To Order
Photo Part No Description Price (each) Stock
LR033442 CLIP - SPECIAL $5.46 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
LR113969 HOSE - BRAKE $93.95 To Order
Photo Part No Description Price (each) Stock
LR113970 HOSE - BRAKE $132.11 To Order
Photo Part No Description Price (each) Stock
LR129155 TUBE - BRAKE $46.22 To Order
LR158100 TUBE - BRAKE $46.22 To Order
Photo Part No Description Price (each) Stock
LR033452 NUT - CONNECTING $10.39 To Order
Photo Part No Description Price (each) Stock
LR033453 NUT - CONNECTING $9.31 To Order
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.36 IN STOCK
Photo Part No Description Price (each) Stock
LR129153 PIPE - BRAKE $84.27 To Order
LR140304 PIPE - BRAKE $84.27 To Order
LR158086 PIPE - BRAKE $84.27 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR137785 PIPE - BRAKE $63.28 To Order
View All

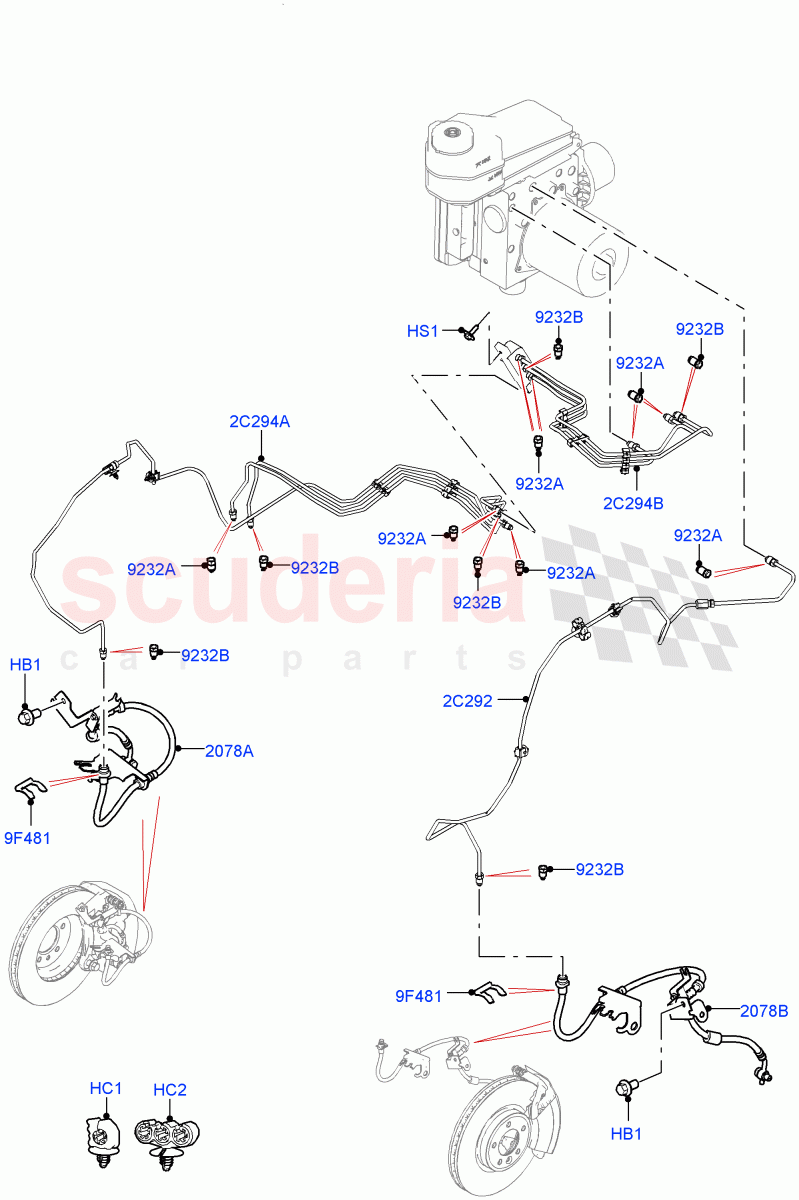

Front Brake Pipes (LHD) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.63 4
HC1 LR033441
CLIP - SPECIAL
5MM, Single 		$4.31 -
HC2 LR033442
CLIP - SPECIAL
5MM, Triple 		$5.46 -
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.92 2
2C292 LR129155
TUBE - BRAKE
Modulator To RH Front / To: N2072657 		$46.22 1
2C292 LR158100
TUBE - BRAKE
Modulator To RH Front / From: N2072658 		$46.22 1
2C294A LR129153
PIPE - BRAKE
Modulator To Rear Brake Pipe, Modulator To RH Front Wheel / To: L2000583 		$84.27 1
2C294A LR140304
PIPE - BRAKE
Modulator To Rear Brake Pipe, Modulator To RH Front Wheel / From: L2000584 / To: N2072657 		$84.27 1
2C294A LR158086
PIPE - BRAKE
Modulator To Rear Brake Pipe, Modulator To RH Front Wheel / From: N2072658 / To: N2086120 		$84.27 1
2C294A LR162786
PIPE - BRAKE
Modulator To Rear Brake Pipe, Modulator To RH Front Wheel / From: N2086121 		$84.27 1
2C294B LR137785
PIPE - BRAKE
Modulator To Brake Hose 		$63.28 1
9F481 EJP7813
CLIP - HOSE
Brake Hose
IN STOCK 		$2.36 2
2078A LR113969
HOSE - BRAKE
RH, Includes Bracket, To Caliper 		$93.95 1
2078B LR113970
HOSE - BRAKE
LH, Includes Bracket, To Caliper 		$132.11 1
9232A LR033452
NUT - CONNECTING
M10 		$10.39 -
9232B LR033453
NUT - CONNECTING
M12 		$9.31 -
