Audio Equipment - Original Fit of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Audio Equipment - Original Fit

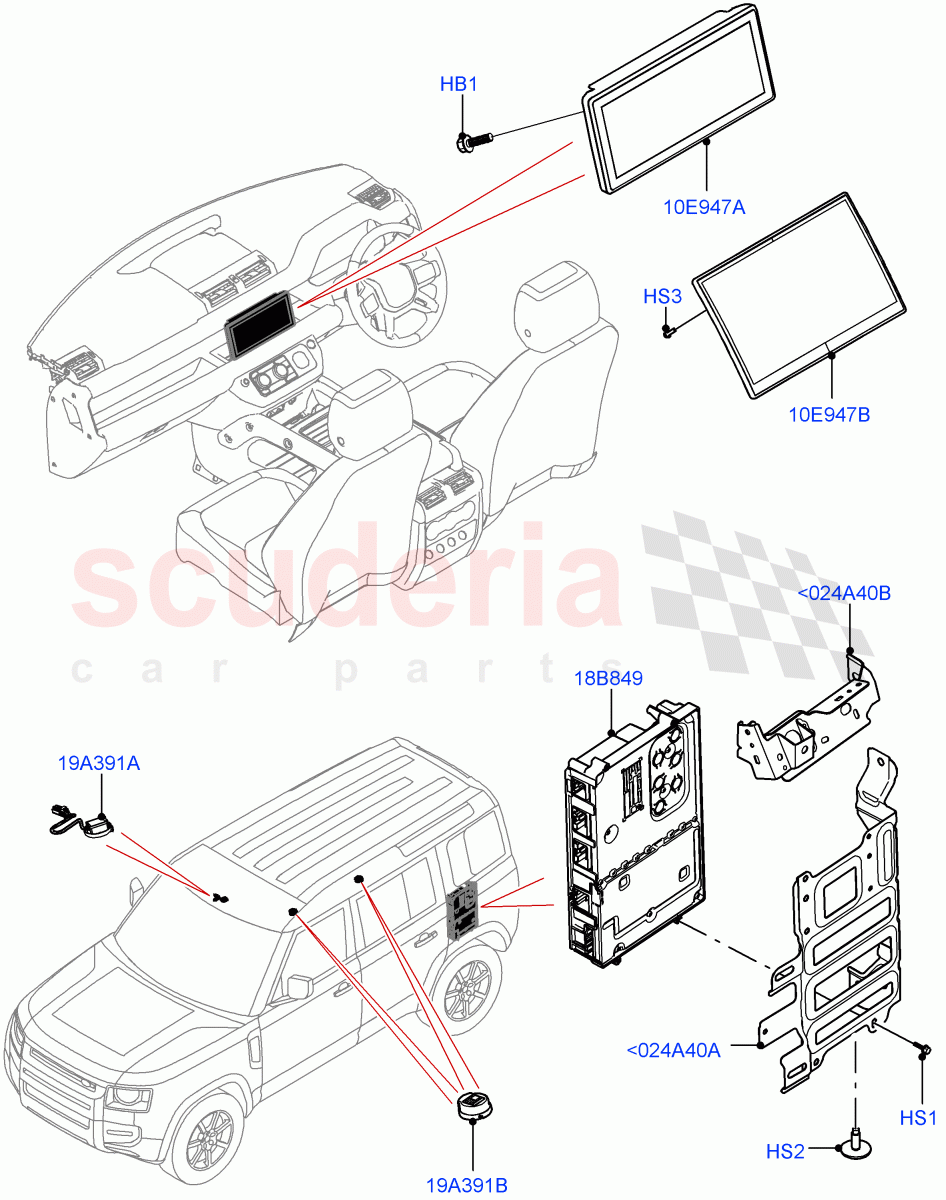

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024165	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129198	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500830	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085564	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129324	AMPLIFIER - AUDIO SYSTEM	Enquire	To Order
	LR131998	AMPLIFIER - AUDIO SYSTEM	Enquire	To Order
	LR140769	AMPLIFIER - AUDIO SYSTEM	Enquire	To Order

...and 14 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR129329	CONTROL - AUDIO/VISUAL UNIT	Enquire	To Order
	LR160029	CONTROL - AUDIO/VISUAL UNIT	Enquire	To Order
	LR160029	CONTROL - AUDIO/VISUAL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161599	CONTROL - AUDIO/VISUAL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061047	MICROPHONE - HANDS FREE SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129342	MICROPHONE - HANDS FREE SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131710	BRACKET - AMPLIFIER	Enquire	To Order
	LR131711	BRACKET - AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137670	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<024A40A	LR131710	BRACKET - AMPLIFIER	LR131710 BRACKET - AMPLIFIER Less Electric Engine Battery	-	1	Enquire
<024A40A	LR131711	BRACKET - AMPLIFIER	LR131711 BRACKET - AMPLIFIER Electric Engine Battery-PHEV / From: M2000001	-	1	Enquire
<024A40B	LR137670	BRACKET	LR137670 BRACKET Standard Wheelbase	-	1	Enquire
HB1	LR024165	BOLT	LR024165 BOLT M5 X 12MM, Torx / To: M2065456	-	4	Enquire
HS1	LR129198	SCREW	LR129198 SCREW Hexagonal Head, M5 x 16mm	-	4	Enquire
HS2	RYG500830	Screw	RYG500830 Screw Electric Engine Battery-PHEV / M6 X 16 HEX / From: M2000001	-	1	Enquire
HS3	LR085564	SCREW	LR085564 SCREW Infotainment Screen - 11.6" / M6 x 12MM / From: M2065457	-	4	Enquire
10E947A	LR129329	CONTROL - AUDIO/VISUAL UNIT	LR129329 CONTROL - AUDIO/VISUAL UNIT To: M2057103	-	1	Enquire
10E947A	LR160029	CONTROL - AUDIO/VISUAL UNIT	LR160029 CONTROL - AUDIO/VISUAL UNIT From: M2057104 / To: M2065456	-	1	Enquire
10E947A	LR160029	CONTROL - AUDIO/VISUAL UNIT	LR160029 CONTROL - AUDIO/VISUAL UNIT Infotainment Screen - 10" / From: M2065457	-	1	Enquire
10E947B	LR161599	CONTROL - AUDIO/VISUAL UNIT	LR161599 CONTROL - AUDIO/VISUAL UNIT Infotainment Screen - 11.6" / From: M2065457	-	1	Enquire
18B849	LR129324	AMPLIFIER - AUDIO SYSTEM	LR129324 AMPLIFIER - AUDIO SYSTEM Hi Line Audio System - 600 W / To: L2006999	-	1	Enquire
18B849	LR131998	AMPLIFIER - AUDIO SYSTEM	LR131998 AMPLIFIER - AUDIO SYSTEM Standard Audio (Base) / To: L2006999	-	1	Enquire
18B849	LR140769	AMPLIFIER - AUDIO SYSTEM	LR140769 AMPLIFIER - AUDIO SYSTEM Premium Audio 1280 W / To: L2006999	-	1	Enquire
18B849	LR142912	AMPLIFIER - AUDIO SYSTEM	LR142912 AMPLIFIER - AUDIO SYSTEM Premium Audio 1280 W / From: L2007000 / To: L2999999	-	1	Enquire
18B849	LR143124	AMPLIFIER - AUDIO SYSTEM	LR143124 AMPLIFIER - AUDIO SYSTEM Hi Line Audio System - 600 W / From: L2007000 / To: L2999999	-	1	Enquire
18B849	LR143123	AMPLIFIER - AUDIO SYSTEM	LR143123 AMPLIFIER - AUDIO SYSTEM Standard Audio (Base) / From: L2007000 / To: L2999999	-	1	Enquire
18B849	LR150622	AMPLIFIER - AUDIO SYSTEM	LR150622 AMPLIFIER - AUDIO SYSTEM Premium Audio 1280 W / From: M2000001 / To: N2062354	-	1	Enquire
18B849	LR150621	AMPLIFIER - AUDIO SYSTEM	LR150621 AMPLIFIER - AUDIO SYSTEM Hi Line Audio System - 600 W / From: M2000001 / To: N2099859	-	1	Enquire
18B849	LR159616	AMPLIFIER - AUDIO SYSTEM	LR159616 AMPLIFIER - AUDIO SYSTEM Premium Audio 1280 W / From: N2062355 / To: N2099859	-	1	Enquire
18B849	LR145223	AMPLIFIER - AUDIO SYSTEM	LR145223 AMPLIFIER - AUDIO SYSTEM Standard Audio (Base) / From: M2000001 / To: N2099859	-	1	Enquire
18B849	LR171454	AMPLIFIER - AUDIO SYSTEM	LR171454 AMPLIFIER - AUDIO SYSTEM Less Engine Order Cancellation, Standard Audio (Base) / From: P2000001	-	1	Enquire
18B849	LR171455	AMPLIFIER - AUDIO SYSTEM	LR171455 AMPLIFIER - AUDIO SYSTEM Engine Order Cancellation Gen 1, Standard Audio (Base) / From: P2000001	-	1	Enquire
18B849	LR171450	AMPLIFIER - AUDIO SYSTEM	LR171450 AMPLIFIER - AUDIO SYSTEM Premium Audio 1280 W / From: P2000001	-	1	Enquire
18B849	LR171445	AMPLIFIER - AUDIO SYSTEM	LR171445 AMPLIFIER - AUDIO SYSTEM Hi Line Audio System - 600 W / From: P2000001	-	1	Enquire
18B849	LR164747	AMPLIFIER - AUDIO SYSTEM	LR164747 AMPLIFIER - AUDIO SYSTEM Standard Audio (Base) / From: N2099860 / To: N2999999	-	1	Enquire
18B849	LR164374	AMPLIFIER - AUDIO SYSTEM	LR164374 AMPLIFIER - AUDIO SYSTEM Hi Line Audio System - 600 W / From: N2099860 / To: N2999999	-	1	Enquire
18B849	LR164378	AMPLIFIER - AUDIO SYSTEM	LR164378 AMPLIFIER - AUDIO SYSTEM Premium Audio 1280 W / From: N2099860 / To: N2999999	-	1	Enquire
19A391A	LR061047	MICROPHONE - HANDS FREE SET	LR061047 MICROPHONE - HANDS FREE SET SOS / Assistance Call / Headliner	-	1	Enquire
19A391B	LR129342	MICROPHONE - HANDS FREE SET	LR129342 MICROPHONE - HANDS FREE SET Headliner	-	4	Enquire
