Name: Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase) ((V) FROMM2000001)
Rating: 4.8 (1 reviews)

Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase) ((V)...

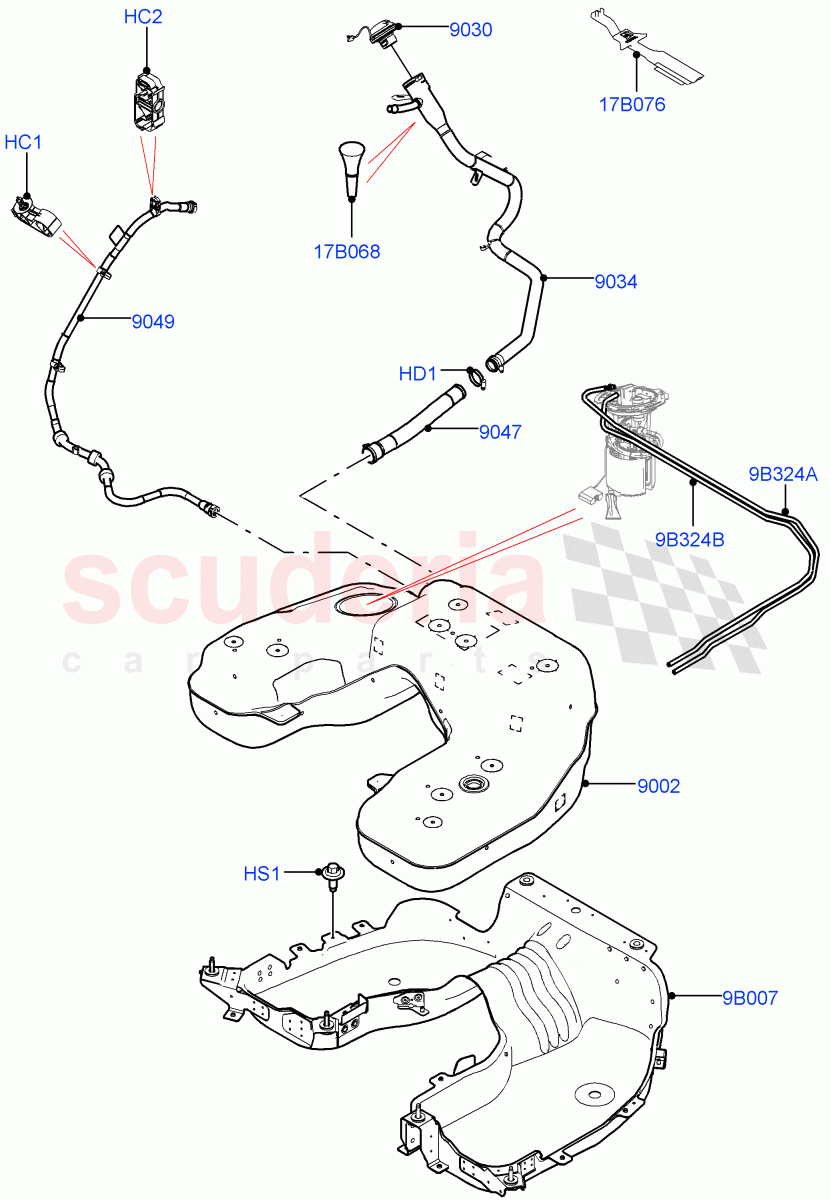

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143376	TANK - FUEL	$1,198.17	To Order
	LR166535	TANK - FUEL	$1,165.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138719	CAP - FUEL TANK FILLER	$37.60	To Order
	LR138861	CAP - FUEL TANK FILLER	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128357	PIPE - FUEL FILLER	$217.12	To Order
	LR128358	PIPE - FUEL FILLER	$217.12	To Order
	LR128359	PIPE - FUEL FILLER	$217.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128360	HOSE - FILLER PIPE	$93.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146963	TUBE - FUEL VAPOUR	$59.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159412	SHIELD	$631.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014047	RESTRICTOR - FUEL	$25.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122707	TUBE - FUEL	$62.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125887	TUBE - FUEL FEED	$61.90	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic, Vapour Line / From: M2000001	$4.23	2
HC2	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE From: M2000001	$4.25	1
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: M2000001	$5.85	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001	$4.03	4
9B007	LR159412	SHIELD	LR159412 SHIELD Cradle / From: M2000001	$631.63	1
9B324A	LR122707	TUBE - FUEL	LR122707 TUBE - FUEL Feed / From: M2000001	$62.86	1
9B324B	LR125887	TUBE - FUEL FEED	LR125887 TUBE - FUEL FEED Return / From: M2000001	$61.90	1
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: M2000001	$6.02	1
17B076	LR014047	RESTRICTOR - FUEL	LR014047 RESTRICTOR - FUEL Fuel Tank Filler Neck - Diesel / From: M2000001	$25.12	1
9002	LR143376	TANK - FUEL	LR143376 TANK - FUEL From: M2000001 / To: N2090499	$1,198.17	1
9002	LR166535	TANK - FUEL	LR166535 TANK - FUEL From: N2090500	$1,165.45	1
9030	LR138719	CAP - FUEL TANK FILLER	LR138719 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: M2000001	$37.60	1
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck With Inhibit / From: M2000001	$37.60	1
9034	LR128357	PIPE - FUEL FILLER	LR128357 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / Inlet, Upper / From: M2000001	$217.12	1
9034	LR128358	PIPE - FUEL FILLER	LR128358 PIPE - FUEL FILLER Fuel Tank Filler Neck - Japan / Inlet, Upper / From: M2000001	$217.12	1
9034	LR128359	PIPE - FUEL FILLER	LR128359 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / Inlet, Upper / From: M2000001	$217.12	1
9047	LR128360	HOSE - FILLER PIPE	LR128360 HOSE - FILLER PIPE Fuel Tank, Inlet / From: M2000001	$93.57	1
9049	LR146963	TUBE - FUEL VAPOUR	LR146963 TUBE - FUEL VAPOUR From: M2000001	$59.81	1
