Exhaust Fluid Injection System (Tank And Filler, Nitra Plant Build) (3.0L AJ20D6 Diesel High, Long Wheelbase, With Diesel Exh Fluid Emission Tank) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Exhaust Fluid Injection System (Tank And Filler, Nitra Plant Build) (3.0L AJ20D6 Diesel High, Long...

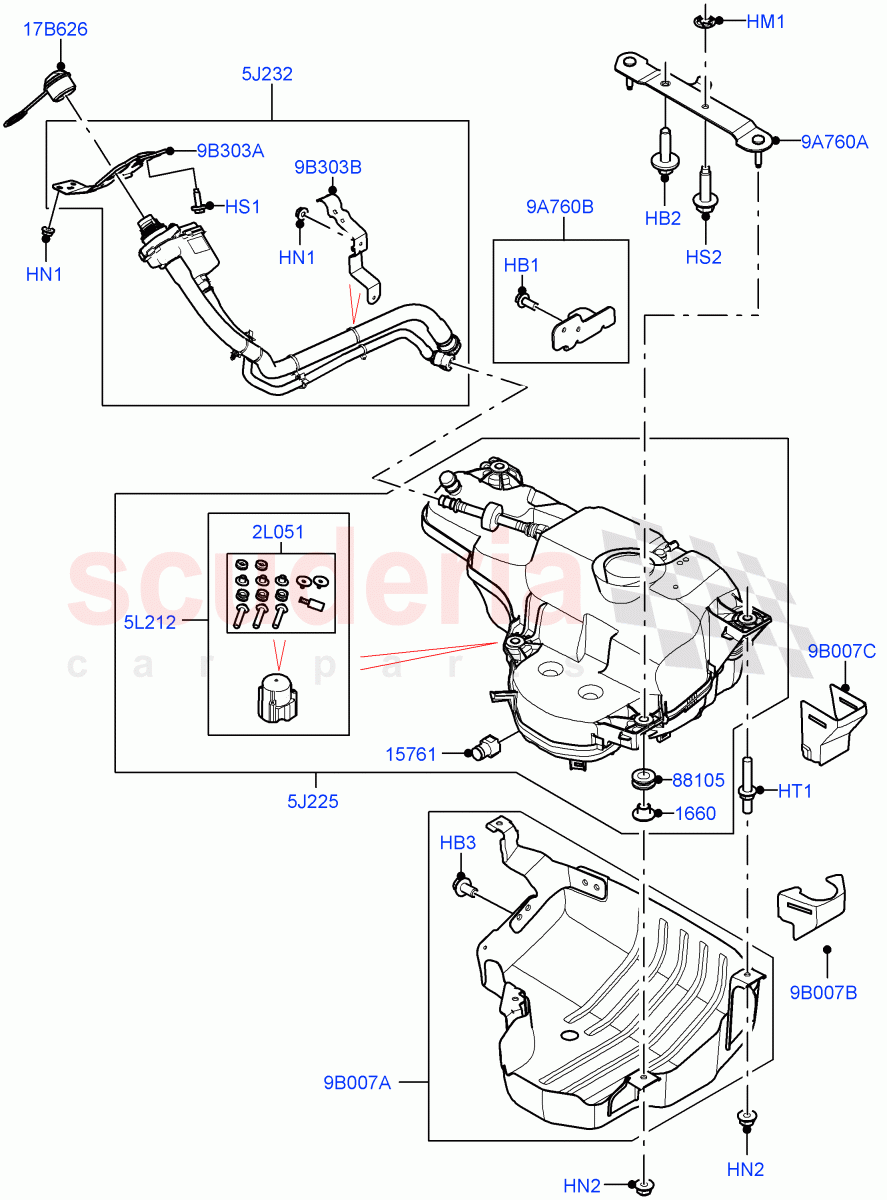

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033245	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093055	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133555	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131972	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072612	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132683	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115628	SPACER - STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115627	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133194	KIT - FIXING PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141952	TANK&SHIELD - DIESEL EXHAUST FLUID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155916	HOSE - TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133195	PUMP - DIESEL EXHAUST FLUID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125664	BUSH - INSULATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115637	CAP - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129419	BRACKET - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131414	BRACKET - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132637	SHIELD - TANK	Enquire	To Order
	LR173831	SHIELD - TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132653	SHIELD - TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132655	SHIELD - TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132682	BRACKET - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155917	BRACKET - FILLER PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: M2000001	-	2	Enquire
HB2	LR033245	BOLT	LR033245 BOLT M12 x 40MM / From: M2000001	-	1	Enquire
HB3	LR093055	BOLT	LR093055 BOLT M8 X 16, Shield / From: M2000001	-	4	Enquire
HM1	LR133555	NUT	LR133555 NUT M12, Starlock / From: M2000001	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: M2000001	-	3	Enquire
HN2	LR131972	NUT - HEX.	LR131972 NUT - HEX. M10 / From: M2000001	-	6	Enquire
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: M2000001	-	1	Enquire
HS2	LR072612	SCREW	LR072612 SCREW Hexagonal Head, M12 X 45MM / From: M2000001	-	1	Enquire
HT1	LR132683	STUD	LR132683 STUD M10 X 45MM + M10 X 22MM / From: M2000001	-	2	Enquire
2L051	LR133194	KIT - FIXING PARTS	LR133194 KIT - FIXING PARTS To Pump / From: M2000001	-	1	Enquire
5J225	LR141952	TANK&SHIELD - DIESEL EXHAUST FLUID	LR141952 TANK&SHIELD - DIESEL EXHAUST FLUID Complete Assembly / From: M2000001	-	1	Enquire
5J232	LR155916	HOSE - TANK	LR155916 HOSE - TANK Assembly / From: M2000001	-	1	Enquire
5L212	LR133195	PUMP - DIESEL EXHAUST FLUID	LR133195 PUMP - DIESEL EXHAUST FLUID Kit Includes Fitting Parts, Service Kit / From: M2000001	-	1	Enquire
9A760A	LR129419	BRACKET - FUEL TANK	LR129419 BRACKET - FUEL TANK Front / From: M2000001	-	1	Enquire
9A760B	LR131414	BRACKET - FUEL TANK	LR131414 BRACKET - FUEL TANK Rear / From: M2000001	-	1	Enquire
9B007A	LR132637	SHIELD - TANK	LR132637 SHIELD - TANK From: M2000001 / To: N2103303	-	1	Enquire
9B007A	LR173831	SHIELD - TANK	LR173831 SHIELD - TANK From: N2103304	-	1	Enquire
9B007B	LR132653	SHIELD - TANK	LR132653 SHIELD - TANK Front, Thermal / From: M2000001	-	1	Enquire
9B007C	LR132655	SHIELD - TANK	LR132655 SHIELD - TANK Rear, Thermal / From: M2000001	-	1	Enquire
9B303A	LR132682	BRACKET - FILLER PIPE	LR132682 BRACKET - FILLER PIPE Filler Pipe, Upper / From: M2000001	-	1	Enquire
9B303B	LR155917	BRACKET - FILLER PIPE	LR155917 BRACKET - FILLER PIPE Filler Pipe, Lower / From: M2000001	-	1	Enquire
17B626	LR115637	CAP - FILLER	LR115637 CAP - FILLER From: M2000001	-	1	Enquire
1660	LR115628	SPACER - STRIKER	LR115628 SPACER - STRIKER From: M2000001	-	4	Enquire
15761	LR115627	PLUG - BLANKING	LR115627 PLUG - BLANKING From: M2000001	-	1	Enquire
88105	LR125664	BUSH - INSULATING	LR125664 BUSH - INSULATING From: M2000001	-	4	Enquire
