Name: Inlet Manifold (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)
Rating: 4.4 (1 reviews)

Inlet Manifold (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Inlet Manifold (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

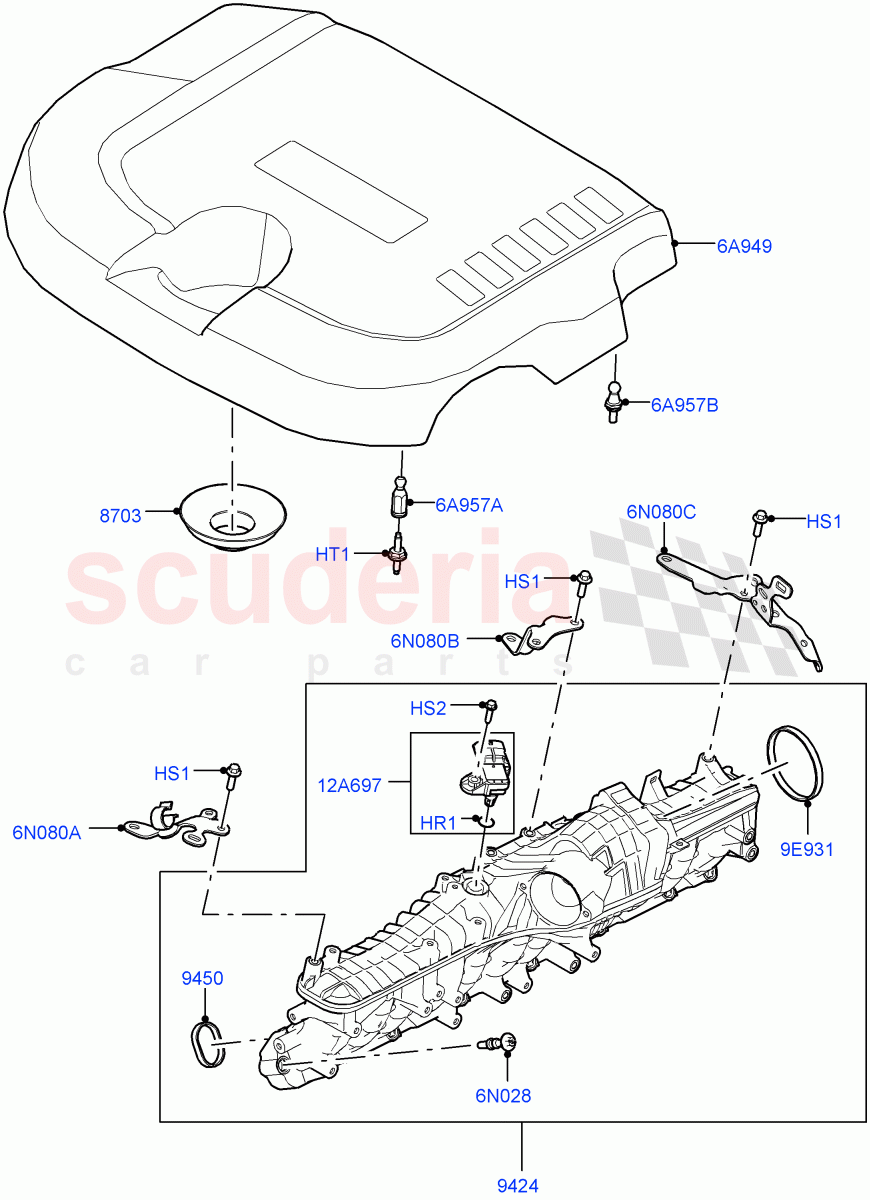

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR130401	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012505	STUD	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$12.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125326	MANIFOLD - INLET	$606.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133631	GASKET - INTAKE MANIFOLD	$13.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141957	COVER - ENGINE TOP	$260.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$4.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133632	GASKET - THROTTLE	$68.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	$120.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082539	PIN	$4.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126018	STUD - BALL	$4.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125330	BRACKET - MANIFOLD	$38.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125331	BRACKET - MANIFOLD	$37.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125332	BRACKET - MANIFOLD	$43.37	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor / From: M2000001 IN STOCK	$4.47	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: M2000001 IN STOCK	$1.54	7
HS2	LR130401	SCREW	LR130401 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor / From: M2000001	$0.76	1
HT1	LR012505	STUD	LR012505 STUD M6 x 15MM / From: M2000001	$0.97	2
6A949	LR141957	COVER - ENGINE TOP	LR141957 COVER - ENGINE TOP Engine / From: M2000001	$260.87	1
6A957A	LR082539	PIN	LR082539 PIN Engine Cover, RH Rear / From: M2000001	$4.47	1
6A957B	LR126018	STUD - BALL	LR126018 STUD - BALL Engine Cover, LH Rear / From: M2000001	$4.32	1
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: M2000001	$4.84	14
6N080A	LR125330	BRACKET - MANIFOLD	LR125330 BRACKET - MANIFOLD Front / From: M2000001	$38.94	1
6N080B	LR125331	BRACKET - MANIFOLD	LR125331 BRACKET - MANIFOLD Centre / From: M2000001	$37.52	1
6N080C	LR125332	BRACKET - MANIFOLD	LR125332 BRACKET - MANIFOLD Rear / From: M2000001	$43.37	1
9E931	LR133632	GASKET - THROTTLE	LR133632 GASKET - THROTTLE Throttle Body To Intake / From: M2000001	$68.79	1
12A697	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	LR090375 SENSOR - AIR TEMPERATURE & PRESSURE Pressure / From: M2000001	$120.25	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: M2000001	$12.79	1
9424	LR125326	MANIFOLD - INLET	LR125326 MANIFOLD - INLET From: M2000001	$606.51	1
9450	LR133631	GASKET - INTAKE MANIFOLD	LR133631 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head / From: M2000001	$13.17	12

Inlet Manifold (Nitra Plant Build) (3.0L Aj20D6 Diesel High) ((V) Fromm2000001)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Inlet Manifold (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)
