Side Trim (Quarter Trim Panel) (Short Wheelbase) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Side Trim (Quarter Trim Panel) (Short Wheelbase)

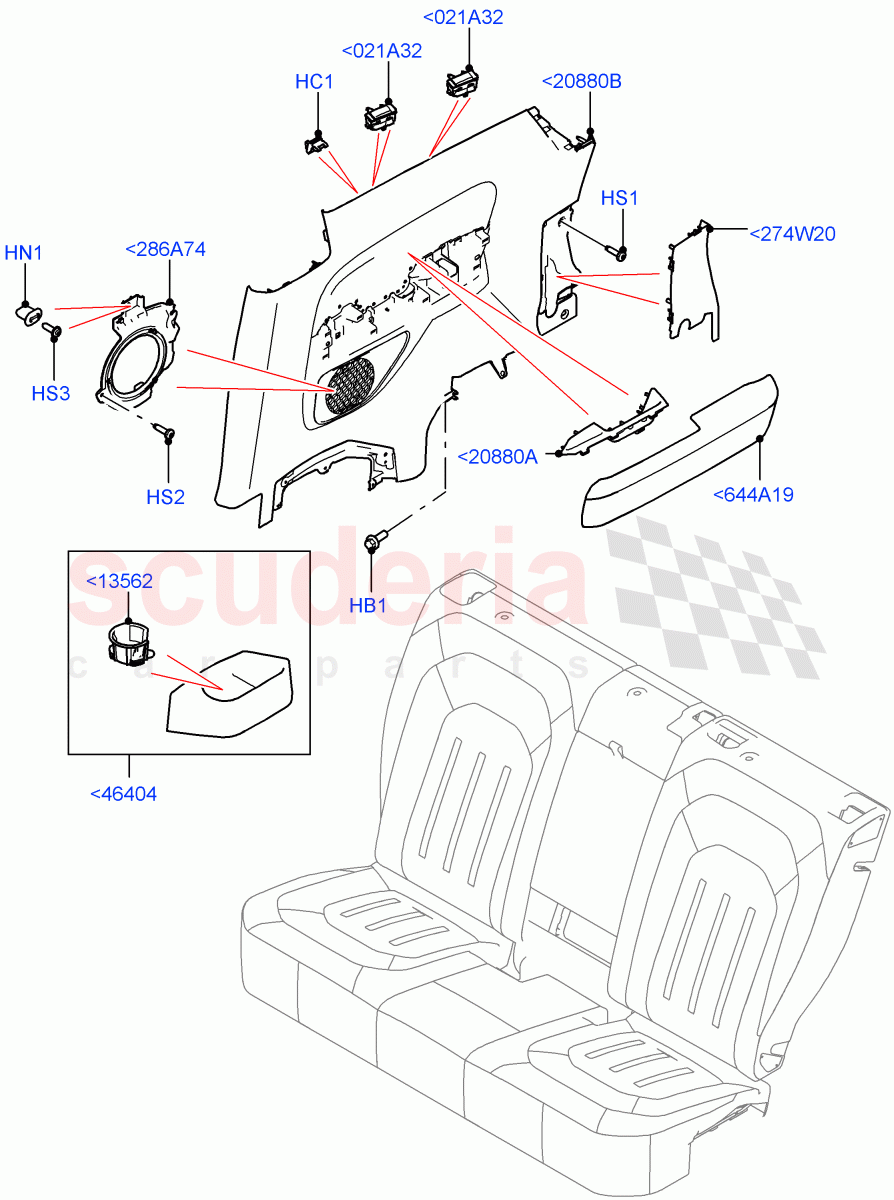

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036129	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131459	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4648959	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114603	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104202	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087454	HOLDER - CUP	Enquire	To Order
	LR087454	HOLDER - CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131534	FINISHER	Enquire	To Order
	LR131535	FINISHER	Enquire	To Order
	LR131504	FINISHER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR147049	FOAM - SEALING	Enquire	To Order
	LR155152	FOAM - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130906	ARMREST - DOOR	Enquire	To Order
	LR130908	ARMREST - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131415	MOULDING - DOOR TRIM	Enquire	To Order
	LR131416	MOULDING - DOOR TRIM	Enquire	To Order
	LR131417	MOULDING - DOOR TRIM	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131420	PANEL - SIDE TRIM	Enquire	To Order
	LR131424	PANEL - SIDE TRIM	Enquire	To Order
	LR131426	PANEL - SIDE TRIM	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131457	BRACKET - DOOR TRIM PANEL	Enquire	To Order
	LR131458	BRACKET - DOOR TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130966	COVER - ARMREST	Enquire	To Order
	LR130967	COVER - ARMREST	Enquire	To Order
	LR130968	COVER - ARMREST	Enquire	To Order

...and 21 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A32	LR147049	FOAM - SEALING	LR147049 FOAM - SEALING RH/LH / To: M2048413	-	4	Enquire
<021A32	LR155152	FOAM - SEALING	LR155152 FOAM - SEALING RH/LH / From: M2048414	-	4	Enquire
<274W20	LR131420	PANEL - SIDE TRIM	LR131420 PANEL - SIDE TRIM Interior Environment Colour - Lunar, Version - First Edition / RH / To: L2999999	-	1	Enquire
<274W20	LR131424	PANEL - SIDE TRIM	LR131424 PANEL - SIDE TRIM Internal Environment Colour - Ebony, Version - Core / RH / To: L2999999	-	1	Enquire
<274W20	LR131426	PANEL - SIDE TRIM	LR131426 PANEL - SIDE TRIM Interior Environment Colour - Lunar, Version - X-Dynamic / LH / To: L2999999	-	1	Enquire
<274W20	LR131427	PANEL - SIDE TRIM	LR131427 PANEL - SIDE TRIM Internal Environment Colour - Ebony, Version - First Edition / LH / To: L2999999	-	1	Enquire
<274W20	LR143185	PANEL - SIDE TRIM	LR143185 PANEL - SIDE TRIM Version - Commercial / RH / From: M2000001	-	1	Enquire
<274W20	LR143186	PANEL - SIDE TRIM	LR143186 PANEL - SIDE TRIM Version - Commercial / LH / From: M2000001	-	1	Enquire
<274W20	LR146876	PANEL - SIDE TRIM	LR146876 PANEL - SIDE TRIM Interior Environment Colour - Lunar, Version - Core / RH / From: M2000001 / To: M2000049	-	1	Enquire
<274W20	LR146877	PANEL - SIDE TRIM	LR146877 PANEL - SIDE TRIM Internal Environment Colour - Ebony, Version - X / RH / From: M2000001 / To: M2000049	-	1	Enquire
<274W20	LR146878	PANEL - SIDE TRIM	LR146878 PANEL - SIDE TRIM Interior Environment Colour - Lunar, Version - Core / LH / From: M2000001 / To: M2000049	-	1	Enquire
<274W20	LR146879	PANEL - SIDE TRIM	LR146879 PANEL - SIDE TRIM Internal Environment Colour - Ebony, Version - Core / LH / From: M2000001 / To: M2000049	-	1	Enquire
<274W20	LR153430	PANEL - SIDE TRIM	LR153430 PANEL - SIDE TRIM Interior Environment Colour - Lunar, Version - Core / RH / From: M2000050	-	1	Enquire
<274W20	LR153432	PANEL - SIDE TRIM	LR153432 PANEL - SIDE TRIM Internal Environment Colour - Ebony, Version - X-Dynamic / RH / From: M2000050	-	1	Enquire
<274W20	LR153433	PANEL - SIDE TRIM	LR153433 PANEL - SIDE TRIM Interior Environment Colour - Lunar, Version - X / LH / From: M2000050	-	1	Enquire
<274W20	LR153434	PANEL - SIDE TRIM	LR153434 PANEL - SIDE TRIM Internal Environment Colour - Ebony, Version - Core / LH / From: M2000050	-	1	Enquire
<286A74	LR131457	BRACKET - DOOR TRIM PANEL	LR131457 BRACKET - DOOR TRIM PANEL RH	-	1	Enquire
<286A74	LR131458	BRACKET - DOOR TRIM PANEL	LR131458 BRACKET - DOOR TRIM PANEL LH	-	1	Enquire
<644A19	LR130966	COVER - ARMREST	LR130966 COVER - ARMREST Door Armrest - PU, Khaki / RH	-	1	Enquire
<644A19	LR130967	COVER - ARMREST	LR130967 COVER - ARMREST Door Armrest - PU, Ebony Black/Ebony Black Interior / RH	-	1	Enquire
<644A19	LR130968	COVER - ARMREST	LR130968 COVER - ARMREST Acorn, Door Armrest - PU / RH	-	1	Enquire
<644A19	LR130969	COVER - ARMREST	LR130969 COVER - ARMREST Khaki, Premium Leather Door Armrest / RH	-	1	Enquire
<644A19	LR130972	COVER - ARMREST	LR130972 COVER - ARMREST Acorn, Premium Leather Door Armrest / RH	-	1	Enquire
<644A19	LR130980	COVER - ARMREST	LR130980 COVER - ARMREST Door Armrest - PU, Khaki / LH	-	1	Enquire
<644A19	LR130981	COVER - ARMREST	LR130981 COVER - ARMREST Door Armrest - PU, Ebony Black/Ebony Black Interior / LH	-	1	Enquire
<644A19	LR130982	COVER - ARMREST	LR130982 COVER - ARMREST Acorn, Door Armrest - PU / LH	-	1	Enquire
<644A19	LR130983	COVER - ARMREST	LR130983 COVER - ARMREST Khaki, Premium Leather Door Armrest / LH	-	1	Enquire
<644A19	LR130986	COVER - ARMREST	LR130986 COVER - ARMREST Acorn, Premium Leather Door Armrest / LH	-	1	Enquire
<644A19	LR130966	COVER - ARMREST	LR130966 COVER - ARMREST Door Armrest - PU, Khaki/Ebony / RH / From: M2000001	-	1	Enquire
<644A19	LR130968	COVER - ARMREST	LR130968 COVER - ARMREST Acorn/Lunar, Door Armrest - PU / RH / From: M2000001	-	1	Enquire
<644A19	LR130969	COVER - ARMREST	LR130969 COVER - ARMREST Khaki/Ebony, Premium Leather Door Armrest / RH / From: M2000001	-	1	Enquire
<644A19	LR130972	COVER - ARMREST	LR130972 COVER - ARMREST Acorn/Lunar, Premium Leather Door Armrest / RH / From: M2000001	-	1	Enquire
<644A19	LR130980	COVER - ARMREST	LR130980 COVER - ARMREST Door Armrest - PU, Khaki/Ebony / LH / From: M2000001	-	1	Enquire
<644A19	LR130982	COVER - ARMREST	LR130982 COVER - ARMREST Acorn/Lunar, Door Armrest - PU / LH / From: M2000001	-	1	Enquire
<644A19	LR130983	COVER - ARMREST	LR130983 COVER - ARMREST Khaki/Ebony, Premium Leather Door Armrest / LH / From: M2000001	-	1	Enquire
<644A19	LR130986	COVER - ARMREST	LR130986 COVER - ARMREST Acorn/Lunar, Premium Leather Door Armrest / LH / From: M2000001	-	1	Enquire
<644A19	LR130985	COVER - ARMREST	LR130985 COVER - ARMREST Premium Leather Door Armrest, Vintage Tan / LH	-	1	Enquire
<644A19	LR130984	COVER - ARMREST	LR130984 COVER - ARMREST Ebony Black/Ebony Black Interior, Premium Leather Door Armrest / LH	-	1	Enquire
<644A19	LR163407	COVER - ARMREST	LR163407 COVER - ARMREST Light Oyster/Lunar, Premium Leather Door Armrest / From: P2000001	-	1	Enquire
<644A19	LR130971	COVER - ARMREST	LR130971 COVER - ARMREST Ebony/Vintage Tan, Premium Leather Door Armrest / RH	-	1	Enquire
<644A19	LR130970	COVER - ARMREST	LR130970 COVER - ARMREST Ebony Black/Ebony Black Interior, Premium Leather Door Armrest / RH	-	1	Enquire
<644A19	LR163405	COVER - ARMREST	LR163405 COVER - ARMREST Light Oyster/Lunar, Premium Leather Door Armrest / RH / From: P2000001	-	1	Enquire
<13562	LR087454	HOLDER - CUP	LR087454 HOLDER - CUP To: L2999999	-	2	Enquire
<13562	LR087454	HOLDER - CUP	LR087454 HOLDER - CUP Less 3rd Row Rear Seat, Version - Core / From: M2000001	-	2	Enquire
<20880A	LR130906	ARMREST - DOOR	LR130906 ARMREST - DOOR RH, Armrest	-	1	Enquire
<20880A	LR130908	ARMREST - DOOR	LR130908 ARMREST - DOOR LH, Armrest	-	1	Enquire
<20880B	LR131415	MOULDING - DOOR TRIM	LR131415 MOULDING - DOOR TRIM Interior Environment Colour - Lunar / RH, Door Casing / To: L2999999	-	1	Enquire
<20880B	LR131416	MOULDING - DOOR TRIM	LR131416 MOULDING - DOOR TRIM Internal Environment Colour - Ebony / RH, Door Casing / To: L2999999	-	1	Enquire
<20880B	LR131417	MOULDING - DOOR TRIM	LR131417 MOULDING - DOOR TRIM Interior Environment Colour - Lunar / LH, Door Casing / To: L2999999	-	1	Enquire
<20880B	LR131418	MOULDING - DOOR TRIM	LR131418 MOULDING - DOOR TRIM Internal Environment Colour - Ebony / LH, Door Casing / To: L2999999	-	1	Enquire
<20880B	LR146755	MOULDING - DOOR TRIM	LR146755 MOULDING - DOOR TRIM Interior Environment Colour - Lunar / RH, Door Casing / From: M2000001 / To: M2045662	-	1	Enquire
<20880B	LR146756	MOULDING - DOOR TRIM	LR146756 MOULDING - DOOR TRIM Internal Environment Colour - Ebony / RH, Door Casing / From: M2000001 / To: M2045613	-	1	Enquire
<20880B	LR146753	MOULDING - DOOR TRIM	LR146753 MOULDING - DOOR TRIM Interior Environment Colour - Lunar / LH, Door Casing / From: M2000001 / To: M2045662	-	1	Enquire
<20880B	LR146754	MOULDING - DOOR TRIM	LR146754 MOULDING - DOOR TRIM Internal Environment Colour - Ebony / LH, Door Casing / From: M2000001 / To: M2045613	-	1	Enquire
<20880B	LR154568	MOULDING - DOOR TRIM	LR154568 MOULDING - DOOR TRIM Interior Environment Colour - Lunar / RH, Door Casing / From: M2045663 / To: M2059513	-	1	Enquire
<20880B	LR154570	MOULDING - DOOR TRIM	LR154570 MOULDING - DOOR TRIM Interior Environment Colour - Lunar / LH, Door Casing / From: M2045663 / To: M2059513	-	1	Enquire
<20880B	LR154569	MOULDING - DOOR TRIM	LR154569 MOULDING - DOOR TRIM Internal Environment Colour - Ebony / RH, Door Casing / From: M2045614 / To: M2059445	-	1	Enquire
<20880B	LR154571	MOULDING - DOOR TRIM	LR154571 MOULDING - DOOR TRIM Internal Environment Colour - Ebony / LH, Door Casing / From: M2045614 / To: M2059445	-	1	Enquire
<20880B	LR159574	MOULDING - DOOR TRIM	LR159574 MOULDING - DOOR TRIM Interior Environment Colour - Lunar / RH, Door Casing / From: M2059514	-	1	Enquire
<20880B	LR159575	MOULDING - DOOR TRIM	LR159575 MOULDING - DOOR TRIM Internal Environment Colour - Ebony / RH, Door Casing / From: M2059446	-	1	Enquire
<20880B	LR159576	MOULDING - DOOR TRIM	LR159576 MOULDING - DOOR TRIM Interior Environment Colour - Lunar / LH / From: M2059514	-	1	Enquire
<20880B	LR159577	MOULDING - DOOR TRIM	LR159577 MOULDING - DOOR TRIM Internal Environment Colour - Ebony / LH, Door Casing / From: M2059446	-	1	Enquire
<46404	LR131534	FINISHER	LR131534 FINISHER Interior Environment Colour - Lunar / LH / To: L2999999	-	1	Enquire
<46404	LR131535	FINISHER	LR131535 FINISHER Internal Environment Colour - Ebony / LH / To: L2999999	-	1	Enquire
<46404	LR131504	FINISHER	LR131504 FINISHER Interior Environment Colour - Lunar / RH / To: L2999999	-	1	Enquire
<46404	LR131505	FINISHER	LR131505 FINISHER Internal Environment Colour - Ebony / RH / To: L2999999	-	1	Enquire
<46404	LR131504	FINISHER	LR131504 FINISHER Interior Environment Colour - Lunar, Version - X / RH / From: M2000001	-	1	Enquire
<46404	LR131505	FINISHER	LR131505 FINISHER Internal Environment Colour - Ebony, Version - First Edition / RH / From: M2000001	-	1	Enquire
<46404	LR131534	FINISHER	LR131534 FINISHER Interior Environment Colour - Lunar, Version - Core / LH / From: M2000001	-	1	Enquire
<46404	LR131535	FINISHER	LR131535 FINISHER Internal Environment Colour - Ebony, Version - First Edition / LH / From: M2000001	-	1	Enquire
HB1	FS108256	BOLT	FS108256 BOLT Hexagonal Head, M8 X 25MM	-	4	Enquire
HC1	LR036129	CLIP - TRIM	LR036129 CLIP - TRIM Clip 0.8 + 18.4 X 4.5 X 1.25 Push In Steel	-	10	Enquire
HN1	LR131459	NUT	LR131459 NUT Fixes Speaker Bracket	-	4	Enquire
HS1	4648959	SCREW	4648959 SCREW M6 X 20MM, Torx	-	2	Enquire
HS2	LR114603	SCREW	LR114603 SCREW Fixes Speaker Bracket, Screw 4 X 14	-	6	Enquire
HS3	LR104202	SCREW - PAN - TORX	LR104202 SCREW - PAN - TORX Fixes Speaker Bracket	-	4	Enquire
