Air Conditioning Condensr/Compressr (Front) (3.0L Aj20D6 Diesel High, 3.0L Aj20P6 Petrol High) ((V)...

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Air Conditioning Condensr/Compressr (Front) (3.0L AJ20D6 Diesel High, 3.0L AJ20P6 Petrol High) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR005074 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB108076 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR035462 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR018707 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
JUU500110 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR137975 CONDENSER Enquire To Order
LR181384 CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
LR062331 BRACKET - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR063161 BRACKET - INTERCOOLER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR063162 BRACKET - INTERCOOLER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR063164 BRACKET - INTERCOOLER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR063165 BRACKET - INTERCOOLER RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR131141 HOSE - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
LR147876 COMPRESSOR - AIR CONDITIONING Enquire To Order
LR141720 COMPRESSOR - AIR CONDITIONING Enquire To Order
LR159434 COMPRESSOR - AIR CONDITIONING Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR123056 BRACKET - COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR122304 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR141983 TUBE - COMPRESSOR DELIVERY Enquire To Order
Photo Part No Description Price (each) Stock
LR141980 TUBE - COMPRESSOR LINE Enquire To Order
View All

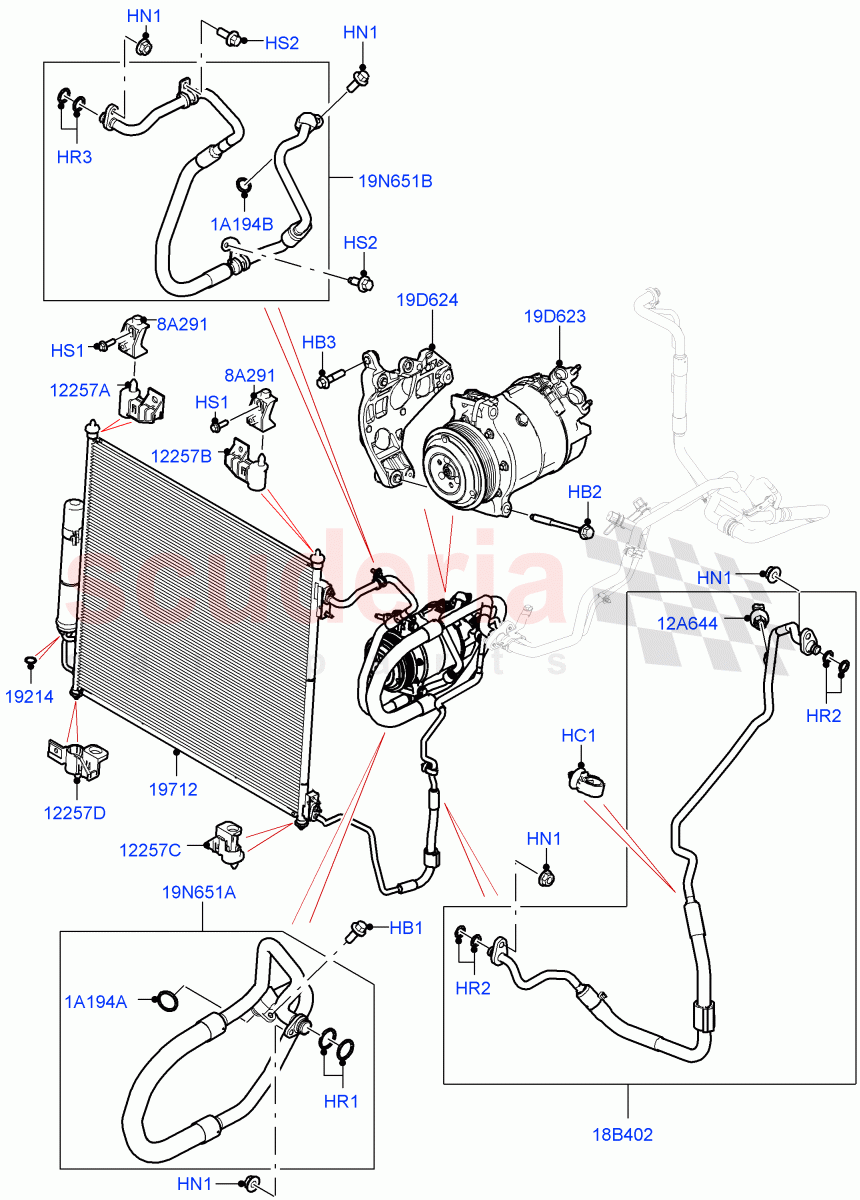

Air Conditioning Condensr/Compressr (Front) (3.0L AJ20D6 Diesel High, 3.0L AJ20P6 Petrol High) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM / From: M2000001 		- 2 Enquire
HB2 LR005074
BOLT
Hexagonal Head, M8 X 96.5 / From: M2000001 		- 3 Enquire
HB3 FB108076
BOLT
M8 X 35MM / From: M2000001 		- 4 Enquire
HC1 LR035462
CLIP - HOSE
For Air Conditioning Hose / From: M2000001 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: M2000001 		- 4 Enquire
HR1 LR054870
O-RING
16.5 X 1.78MM / From: M2000001 		- 2 Enquire
HR2 LR044466
O-RING
7.65 X 1.78 / From: M2000001 		- 4 Enquire
HR3 LR054871
O-RING
10.82MM X 1.78MM / From: M2000001 		- 2 Enquire
HS1 LR018707
SCREW
6X20, Hexagonal Head / From: M2000001 		- 2 Enquire
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: M2000001 		- 2 Enquire
1A194A LR122305
WASHER - SEALING
19.05 MM / From: M2000001 		- 1 Enquire
1A194B LR122304
WASHER - SEALING
12.7MM / From: M2000001 		- 2 Enquire
8A291 LR062331
BRACKET - RADIATOR
Air Conditioning Condenser / From: M2000001 		- 2 Enquire
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
Refrigerant Pressure Sensor / From: M2000001 		- 1 Enquire
18B402 LR131141
HOSE - AIR CONDITIONING
Condenser Outlet / From: M2000001 		- 1 Enquire
19D623 LR147876
COMPRESSOR - AIR CONDITIONING
3.0L AJ20D6 Diesel High / From: M2000001 / To: M2058677 		- 1 Enquire
19D623 LR141720
COMPRESSOR - AIR CONDITIONING
3.0L AJ20P6 Petrol High / From: M2000001 / To: M2058677 		- 1 Enquire
19D623 LR159434
COMPRESSOR - AIR CONDITIONING
3.0L AJ20D6 Diesel High / From: M2058678 		- 1 Enquire
19D623 LR159435
COMPRESSOR - AIR CONDITIONING
3.0L AJ20P6 Petrol High / From: M2058678 		- 1 Enquire
19D624 LR123056
BRACKET - COMPRESSOR
Air Conditioning Compressor Bracket / From: M2000001 		- 1 Enquire
19N651A LR141983
TUBE - COMPRESSOR DELIVERY
Compressor Inlet / From: M2000001 		- 1 Enquire
19N651B LR141980
TUBE - COMPRESSOR LINE
Condenser Inlet Tube / From: M2000001 		- 1 Enquire
12257A LR063161
BRACKET - INTERCOOLER RADIATOR
3.0L AJ20D6 Diesel High / RH Upper / From: M2000001 		- 1 Enquire
12257B LR063162
BRACKET - INTERCOOLER RADIATOR
3.0L AJ20D6 Diesel High / LH Upper / From: M2000001 		- 1 Enquire
12257C LR063164
BRACKET - INTERCOOLER RADIATOR
3.0L AJ20D6 Diesel High / LH Lower / From: M2000001 		- 1 Enquire
12257D LR063165
BRACKET - INTERCOOLER RADIATOR
3.0L AJ20D6 Diesel High / RH Lower / From: M2000001 		- 1 Enquire
19214 JUU500110
SEAL
From: M2000001 		- 1 Enquire
19712 LR137975
CONDENSER
3.0L AJ20P6 Petrol High / From: M2000001 		- 1 Enquire
19712 LR181384
CONDENSER
3.0L AJ20D6 Diesel High / From: M2000001 		- 1 Enquire
