Name: Timing Gear Covers (2.0L AJ200P Hi PHEV) ((V) FROML2000001)
Rating: 5.0 (1 reviews)

Timing Gear Covers (2.0L AJ200P Hi PHEV) ((V) FROML2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Timing Gear Covers (2.0L AJ200P Hi PHEV) ((V) FROML2000001)

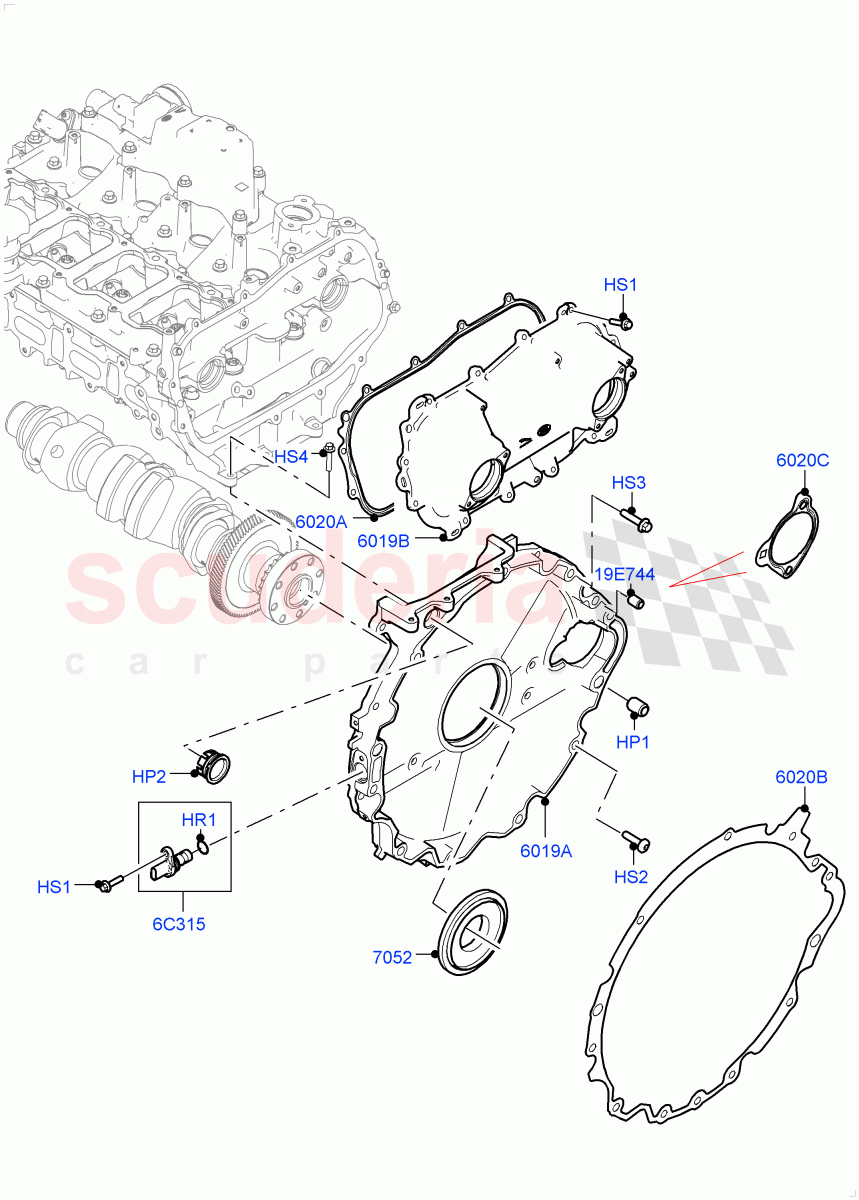

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073787	PIN - CENTERING	$3.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135858	PLUG - ENGINE	$6.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	$4.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR084639	SEAL - CRANKSHAFT OIL - REAR	$47.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140519	COVER - CYLINDER BLOCK REAR	$192.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108934	COVER - CYLINDER HEAD	$179.81	To Order
	LR172511	Cover	$70.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091809	GASKET - COVER	$27.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101089	SEAL - TRANSMISSION	$64.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134975	SEAL - STARTER MOTOR	$58.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	$143.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052127	Pin - Fastening	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HP1	LR073787	PIN - CENTERING	LR073787 PIN - CENTERING 15.7MM, Pin - Dowell	$3.89	2
HP2	LR135858	PLUG - ENGINE IN STOCK	LR135858 PLUG - ENGINE Blanking, Includes O'Ring IN STOCK	$6.40	1
HR1	LR095782	O-RING IN STOCK	LR095782 O-RING 17.0MM, Crankshaft Position Sensor(CKP) IN STOCK	$4.61	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM	$1.28	13
HS2	LR073786	SCREW	LR073786 SCREW M8 X 30MM	$2.15	3
HS3	LR073676	SCREW	LR073676 SCREW M8 x 35mm	$2.26	9
HS4	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM IN STOCK	$2.55	3
6C315	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	LR126181 SENSOR - CRANKSHAFT POSITION - CPS	$143.40	1
19E744	LR052127	Pin - Fastening	LR052127 Pin - Fastening	-	2	Enquire
6019A	LR140519	COVER - CYLINDER BLOCK REAR	LR140519 COVER - CYLINDER BLOCK REAR Lower, Timing Chain Cover	$192.93	1
6019B	LR108934	COVER - CYLINDER HEAD	LR108934 COVER - CYLINDER HEAD Aluminium, Timing Chain Cover, Upper / To: N2103303	$179.81	1
6019B	LR172511	Cover	LR172511 Cover Composite PA66 GF50, Includes Gasket, Timing Chain Cover, Upper / From: N2103304	$70.29	1
6020A	LR091809	GASKET - COVER	LR091809 GASKET - COVER Only Suitable For Aluminium Cover, Timing Chain Cover / To: N2103303	$27.07	1
6020B	LR101089	SEAL - TRANSMISSION	LR101089 SEAL - TRANSMISSION Transmission To Engine	$64.09	1
6020C	LR134975	SEAL - STARTER MOTOR	LR134975 SEAL - STARTER MOTOR Starter	$58.17	1
7052	LR084639	SEAL - CRANKSHAFT OIL - REAR	LR084639 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal, Rear	$47.26	1
