Find Your Part

View All

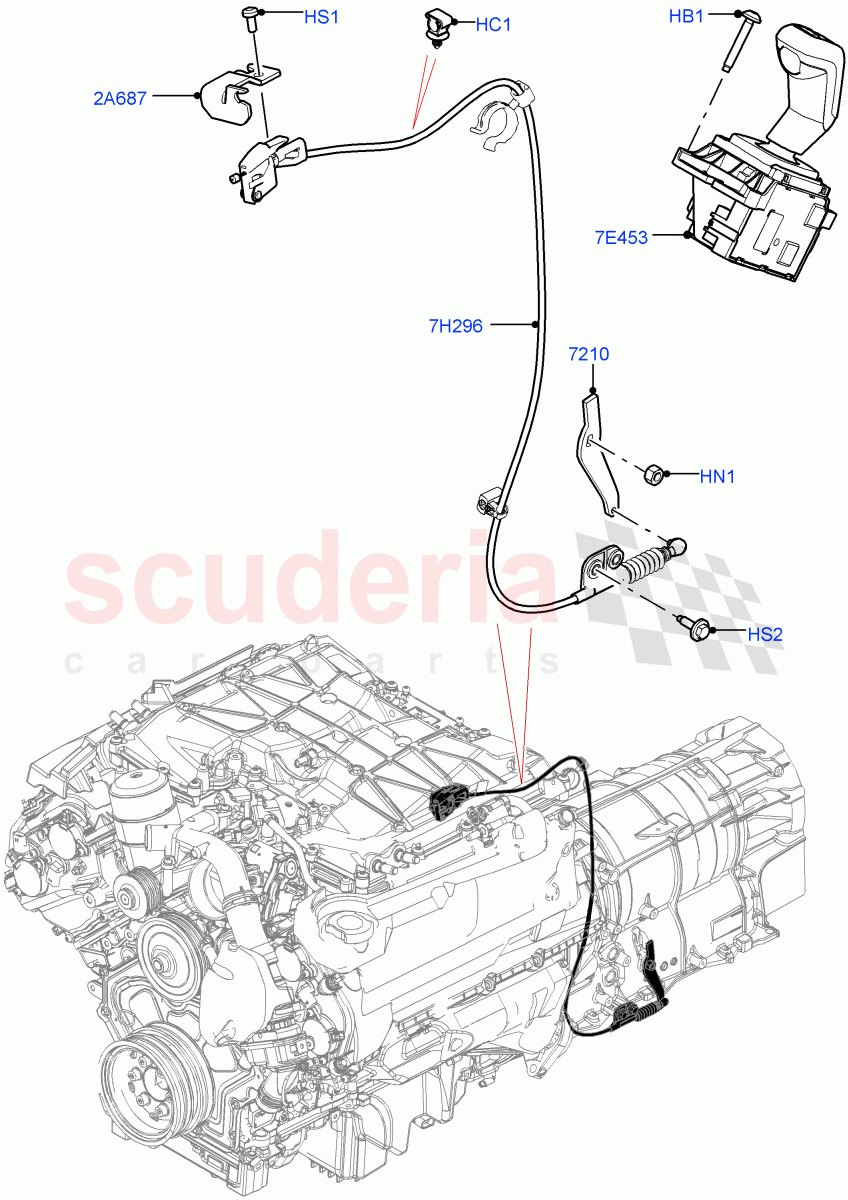

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR131946	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYH500020	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022943	LEVER - GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134451	BRACKET - CABLE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147910	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order
	LR147911	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order
	LR166793	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR106796	CABLE - SELECTOR LEVER CONTROL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR131946	BOLT - HEX.HEAD	LR131946 BOLT - HEX.HEAD M5 x 30MM / From: M2000001	-	4	Enquire
HC1	LR011519	CLIP	LR011519 CLIP 9.5 X 6 X 2 / From: M2000001	-	1	Enquire
HN1	VYH500020	NUT - HEX.	VYH500020 NUT - HEX. M8 x 1.0MM / From: M2000001	-	1	Enquire
HS1	RYP500920	SCREW	RYP500920 SCREW Bracket, M6 X 14MM, Torx / From: M2000001	-	1	Enquire
HS2	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM, To Transmission / From: M2000001	-	2	Enquire
2A687	LR134451	BRACKET - CABLE SUPPORT	LR134451 BRACKET - CABLE SUPPORT Link / From: M2000001	-	1	Enquire
7E453	LR147910	MODULE - TRANSFER SHIFT CONTROL	LR147910 MODULE - TRANSFER SHIFT CONTROL With Moulded Gearshift Knob / From: M2000001 / To: M2999999	-	1	Enquire
7E453	LR147911	MODULE - TRANSFER SHIFT CONTROL	LR147911 MODULE - TRANSFER SHIFT CONTROL With Leather Gear Shift Knob / From: M2000001 / To: M2999999	-	1	Enquire
7E453	LR166793	MODULE - TRANSFER SHIFT CONTROL	LR166793 MODULE - TRANSFER SHIFT CONTROL With Moulded Gearshift Knob / From: N2000001	-	1	Enquire
7E453	LR166792	MODULE - TRANSFER SHIFT CONTROL	LR166792 MODULE - TRANSFER SHIFT CONTROL With Leather Gear Shift Knob / From: N2000001	-	1	Enquire
7H296	LR106796	CABLE - SELECTOR LEVER CONTROL	LR106796 CABLE - SELECTOR LEVER CONTROL From: M2000001	-	1	Enquire
7210	LR022943	LEVER - GEAR SHIFT	LR022943 LEVER - GEAR SHIFT From: M2000001	-	1	Enquire
