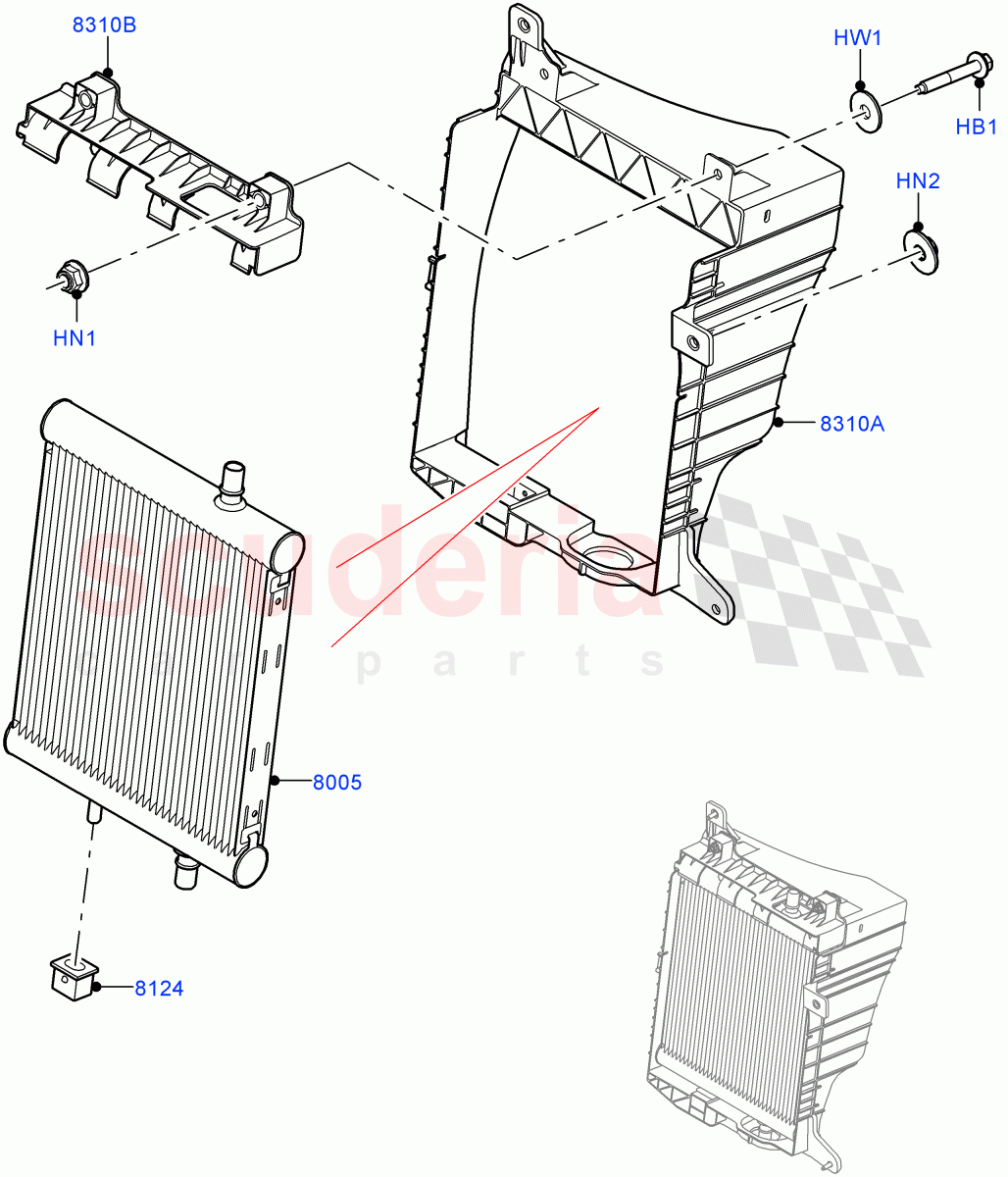

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005173	NUT AND WASHER - HEX.	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYF500100	WASHER	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR188925	RADIATOR	$326.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007399	INSULATOR - RUBBER	$1.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR128286	DEFLECTOR - AIR - RADIATOR	$48.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR188923	DEFLECTOR - AIR - RADIATOR	$68.74	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR001080	BOLT IN STOCK	LR001080 BOLT Hexagonal Head, M6 X 40MM IN STOCK	$1.31	2
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.61	2
HN2	LR005173	NUT AND WASHER - HEX. IN STOCK	LR005173 NUT AND WASHER - HEX. M6, Nut And Washer IN STOCK	$0.76	1
HW1	VYF500100	WASHER	VYF500100 WASHER 6.4 x 22.2 x 1.6	$0.74	2
8005	LR188925	RADIATOR IN STOCK	LR188925 RADIATOR IN STOCK	$326.23	1
8124	LR007399	INSULATOR - RUBBER IN STOCK	LR007399 INSULATOR - RUBBER Radiator IN STOCK	$1.59	1
8310A	LR128286	DEFLECTOR - AIR - RADIATOR	LR128286 DEFLECTOR - AIR - RADIATOR Frame Assy	$48.99	1
8310B	LR188923	DEFLECTOR - AIR - RADIATOR	LR188923 DEFLECTOR - AIR - RADIATOR Bracket	$68.74	1
