Crankshaft/Pistons And Bearings (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Crankshaft/Pistons And Bearings (4.4 V8 Turbo Petrol (NC10))

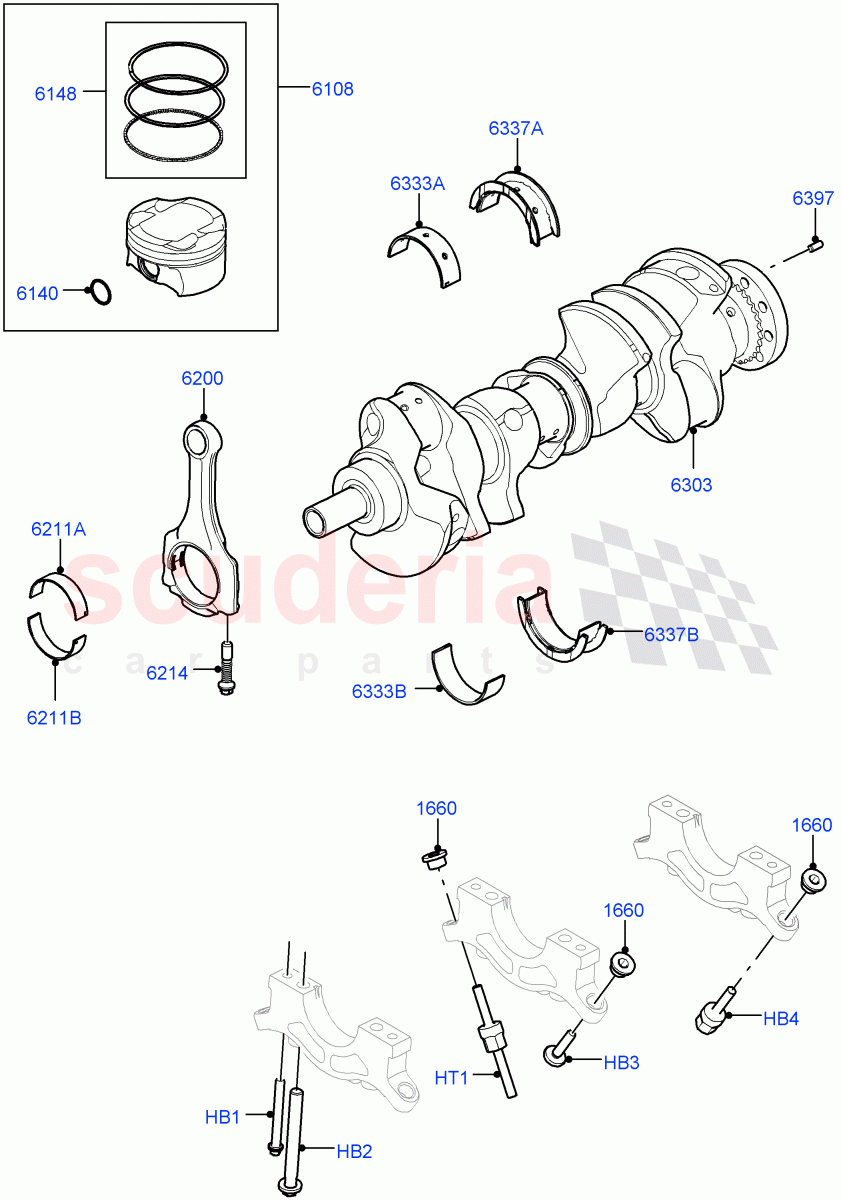

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158436	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158434	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158437	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158540	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158338	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158258	SPACER - BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158416	PISTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158420	RETAINER - PISTON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158422	KIT - PISTON RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158423	ROD - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158433	BOLT - CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158900	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170375	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158425	BEARING - CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158427	BEARING - CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158877	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR158876	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR158874	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158739	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR158738	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR158737	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158870	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order
	LR158867	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order
	LR158866	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158736	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR158735	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR158734	BEARING - CRANKSHAFT MAIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR158436	BOLT	LR158436 BOLT Centre, M8 x 70MM, Main Bearing Cap	-	10	Enquire
HB2	LR158434	BOLT	LR158434 BOLT Inner, M11 x 99 mm, Main Bearing Cap	-	10	Enquire
HB3	LR158437	BOLT	LR158437 BOLT M8 x 37MM, Main Bearing Cap, Outer	-	7	Enquire
HB4	LR158540	SCREW	LR158540 SCREW Main Bearing Cap, Oil Pump, Threaded Head	-	1	Enquire
HT1	LR158338	STUD	LR158338 STUD Main Bearing Cap, Oil Pump	-	2	Enquire
1660	LR158258	SPACER - BUSH	LR158258 SPACER - BUSH	-	10	Enquire
6108	LR158416	PISTON	LR158416 PISTON	-	8	Enquire
6140	LR158420	RETAINER - PISTON PIN	LR158420 RETAINER - PISTON PIN	-	16	Enquire
6148	LR158422	KIT - PISTON RING	LR158422 KIT - PISTON RING	-	8	Enquire
6200	LR158423	ROD - CONNECTING	LR158423 ROD - CONNECTING	-	8	Enquire
6211A	LR158425	BEARING - CONNECTING ROD	LR158425 BEARING - CONNECTING ROD 54.00 mm, Blue, Upper	-	8	Enquire
6211B	LR158427	BEARING - CONNECTING ROD	LR158427 BEARING - CONNECTING ROD 54.00 mm, Lower, Red	-	8	Enquire
6214	LR158433	BOLT - CONNECTING ROD	LR158433 BOLT - CONNECTING ROD	-	16	Enquire
6303	LR158900	CRANKSHAFT	LR158900 CRANKSHAFT Includes Dowel	-	1	Enquire
6333A	LR158877	BEARING - CRANKSHAFT MAIN	LR158877 BEARING - CRANKSHAFT MAIN 65.00 mm, Upper, Yellow	-	4	Enquire
6333A	LR158876	BEARING - CRANKSHAFT MAIN	LR158876 BEARING - CRANKSHAFT MAIN 65.00 mm, Green, Upper	-	4	Enquire
6333A	LR158874	BEARING - CRANKSHAFT MAIN	LR158874 BEARING - CRANKSHAFT MAIN 65.00 mm, Upper, Violet	-	4	Enquire
6333B	LR158739	BEARING - CRANKSHAFT MAIN	LR158739 BEARING - CRANKSHAFT MAIN 65.00 mm, Lower, Yellow	-	1	Enquire
6333B	LR158738	BEARING - CRANKSHAFT MAIN	LR158738 BEARING - CRANKSHAFT MAIN 65.00 mm, Green, Lower	-	1	Enquire
6333B	LR158737	BEARING - CRANKSHAFT MAIN	LR158737 BEARING - CRANKSHAFT MAIN 65.00 mm, Lower, Violet	-	1	Enquire
6337A	LR158870	BEARING - CRANKSHAFT MAIN THRUST	LR158870 BEARING - CRANKSHAFT MAIN THRUST 65.00 mm, Upper, Yellow	-	1	Enquire
6337A	LR158867	BEARING - CRANKSHAFT MAIN THRUST	LR158867 BEARING - CRANKSHAFT MAIN THRUST 65.00 mm, Green, Upper	-	1	Enquire
6337A	LR158866	BEARING - CRANKSHAFT MAIN THRUST	LR158866 BEARING - CRANKSHAFT MAIN THRUST 65.00 mm, Upper, Violet	-	1	Enquire
6337B	LR158736	BEARING - CRANKSHAFT MAIN	LR158736 BEARING - CRANKSHAFT MAIN 65.00 mm, Lower, Yellow	-	1	Enquire
6337B	LR158735	BEARING - CRANKSHAFT MAIN	LR158735 BEARING - CRANKSHAFT MAIN 65.00 mm, Green, Lower	-	1	Enquire
6337B	LR158734	BEARING - CRANKSHAFT MAIN	LR158734 BEARING - CRANKSHAFT MAIN 65.00 mm, Lower, Violet	-	1	Enquire
6397	LR170375	DOWEL	LR170375 DOWEL	-	1	Enquire
