View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH000130	SPEEDNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP000411	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500610	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012225	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010160	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500640	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500780	INSULATOR - TUNNEL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	DYP500080	BOLT	DYP500080 BOLT M5 x 20MM / From: AA000001	-	8	Enquire
HN1	WYH500050	NUT - LOCKING	WYH500050 NUT - LOCKING M5 / From: AA000001	-	16	Enquire
HN2	KYH000130	SPEEDNUT	KYH000130 SPEEDNUT Fixing / From: AA000001	-	4	Enquire
HS1	KYP000411	SCREW - SELF-TAPPING	KYP000411 SCREW - SELF-TAPPING 4.8 X 13MM, Self Tapping / From: AA000001	-	4	Enquire
5D032A	LR012225	SHIELD	LR012225 SHIELD LH, Heatshield Bush Front Stabilizer Bar / From: AA000001	-	1	Enquire
5D032B	KRO000143	SHIELD	KRO000143 SHIELD RH, Heatshield Bush Front Stabilizer Bar / From: AA000001 / To: AA331905	-	1	Enquire
5D032B	LR025231	SHIELD	LR025231 SHIELD RH, Heatshield Bush Front Stabilizer Bar / From: AA331906	-	1	Enquire
5G220A	LR009725	HEAT SHIELD	LR009725 HEAT SHIELD LH / From: AA000001 / To: AA312717	-	1	Enquire
5G220A	LR020108	HEAT SHIELD	LR020108 HEAT SHIELD LH / From: AA312718	-	1	Enquire
5G220B	LR010160	HEAT SHIELD	LR010160 HEAT SHIELD RH / From: AA000001	-	1	Enquire
5G221	WEB500610	SHIELD	WEB500610 SHIELD Center Rear / From: AA000001	-	1	Enquire
5K286A	WEB500640	HEAT SHIELD	WEB500640 HEAT SHIELD Rear / From: AA000001	-	1	Enquire
5K286B	WEB500780	INSULATOR - TUNNEL	WEB500780 INSULATOR - TUNNEL Centre, Middle / From: AA000001	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

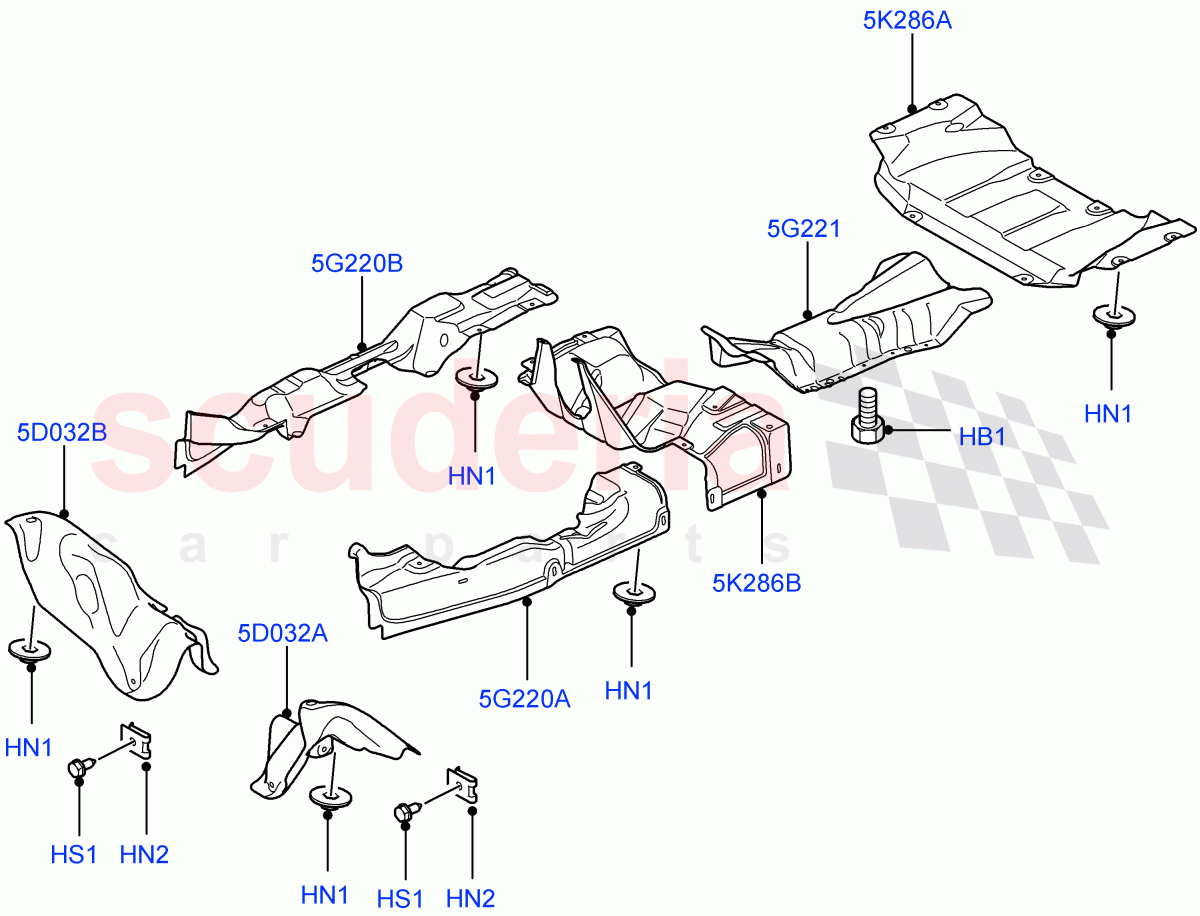

Heat Shields - Exhaust System (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]
