Air Cleaner (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Air Cleaner (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
PJQ500012 MOUNTING - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LKD500030 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR014311 BRACKET - AIR DUCT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR011357 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR011359 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR012073 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR012667 DUCT - AIR Enquire To Order
LR023450 DUCT - AIR Enquire To Order
LR031462 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR011410 DUCT - AIR Enquire To Order
LR023803 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR011409 DUCT - AIR Enquire To Order
LR023800 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR011978 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR011979 DUCT - AIR Enquire To Order
LR023146 DUCT - AIR Enquire To Order
View All

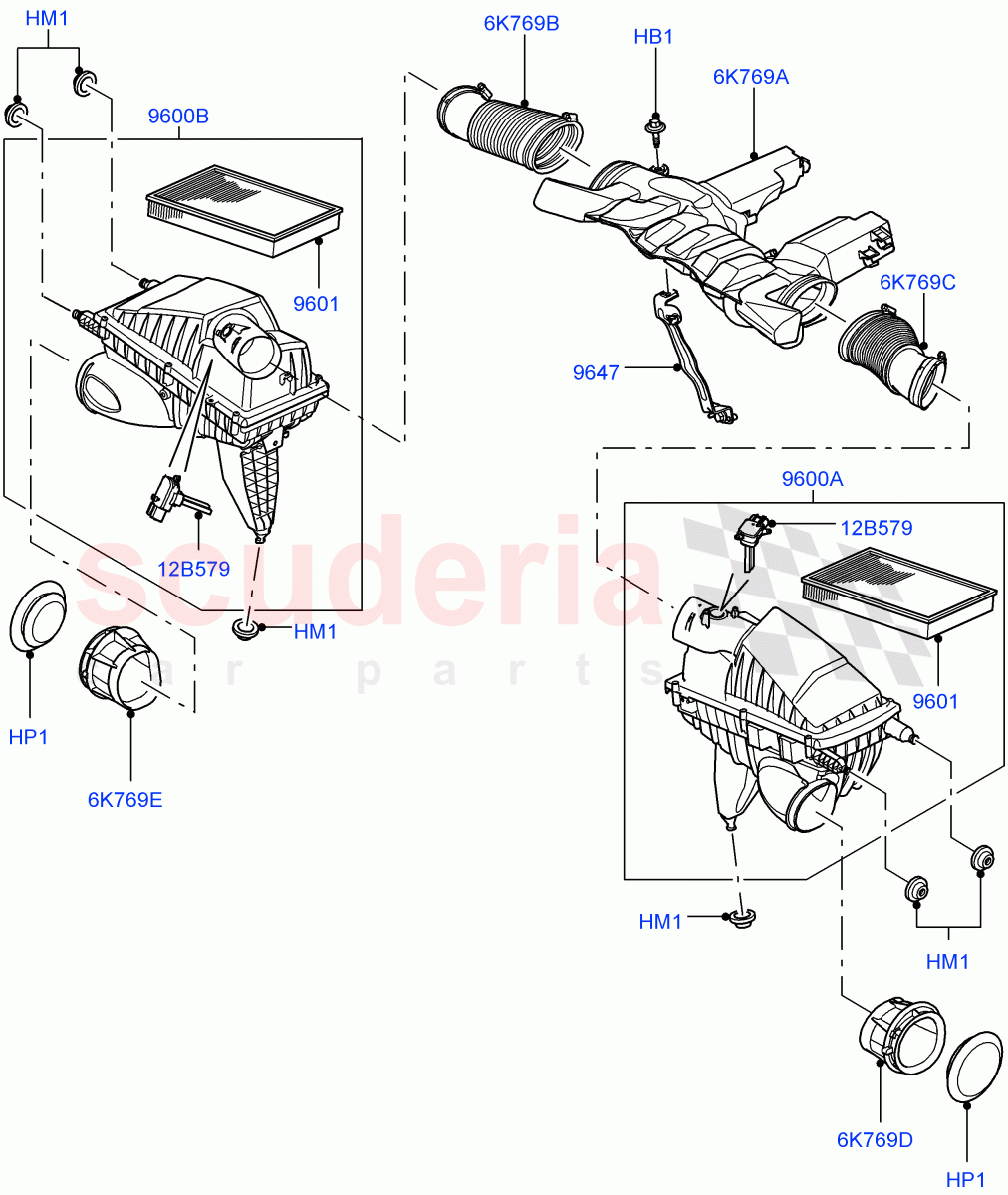

Air Cleaner (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Bracket, Hexagonal Head, M6 X 24MM / From: AA000001 		- 1 Enquire
HM1 PJQ500012
MOUNTING - RUBBER
Mounting Rubber / From: AA000001 		- 6 Enquire
HP1 LKD500030
PLUG - BLANKING
Blanking / From: AA000001 		- 2 Enquire
6K769A LR012667
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: AA000001 / To: AA320746 		- 1 Enquire
6K769A LR023450
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: AA320747 / To: BA355860 		- 1 Enquire
6K769A LR031462
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: BA355861 		- 1 Enquire
6K769B LR011410
DUCT - AIR
RH, Air Cleaner To Throttle Body / From: AA000001 / To: AA329434 		- 1 Enquire
6K769B LR023803
DUCT - AIR
RH, Air Cleaner To Throttle Body / From: AA329435 		- 1 Enquire
6K769C LR011409
DUCT - AIR
LH, Air Cleaner To Throttle Body / From: AA000001 / To: AA329434 		- 1 Enquire
6K769C LR023800
DUCT - AIR
LH, Air Cleaner To Throttle Body / From: AA329435 		- 1 Enquire
6K769D LR011978
DUCT - AIR
LH, Air Cleaner Intake Tube / From: AA000001 		- 1 Enquire
6K769E LR011979
DUCT - AIR
RH, Air Cleaner Intake Tube / From: AA000001 / To: AA999999 		- 1 Enquire
6K769E LR023146
DUCT - AIR
RH, Air Cleaner Intake Tube / From: BA000001 		- 1 Enquire
12B579 LR012073
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: AA000001 		- 2 Enquire
9600A LR011357
CLEANER - AIR
LH / From: AA000001 		- 1 Enquire
9600B LR011359
CLEANER - AIR
RH / From: AA000001 		- 1 Enquire
9601 LR161843
FILTER - AIR CLEANER
From: AA000001 		- 2 Enquire
9647 LR014311
BRACKET - AIR DUCT SUPPORT
Centre duct / From: AA000001 		- 1 Enquire
