Air Cleaner (5.0L Ohc Sgdi Na V8 Petrol - Aj133)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Air Cleaner (5.0L OHC SGDI NA V8 Petrol - AJ133)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER $59.29 IN STOCK
Photo Part No Description Price (each) Stock
LR111065 GUIDE - DIRTY AIR DUCT $22.52 To Order
Photo Part No Description Price (each) Stock
LR036428 CLEANER - AIR $405.86 To Order
LR095789 CLEANER - AIR $442.43 To Order
Photo Part No Description Price (each) Stock
LR036431 CLEANER - AIR $481.53 To Order
LR095791 CLEANER - AIR $420.21 To Order
Photo Part No Description Price (each) Stock
LR036450 GRILLE - DIRTY AIR DUCT $10.94 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.74 IN STOCK
Photo Part No Description Price (each) Stock
LR035726 SENSOR - MASS AIR FLOW $372.81 To Order
Photo Part No Description Price (each) Stock
LR023451 DUCT - AIR $222.04 To Order
Photo Part No Description Price (each) Stock
LR036445 DUCT - AIR $51.89 To Order
Photo Part No Description Price (each) Stock
LR036446 DUCT - AIR $51.89 To Order
Photo Part No Description Price (each) Stock
LR036447 DUCT - DIRTY AIR $181.44 To Order
LR045407 DUCT - DIRTY AIR $164.93 To Order
LR049314 MOULDING - SNOW INGRESS PROTECTOR $166.61 To Order
Photo Part No Description Price (each) Stock
LR036451 DUCT - DIRTY AIR $181.44 To Order
LR045408 DUCT - DIRTY AIR $157.77 To Order
LR049313 DUCT - DIRTY AIR $181.44 To Order
View All

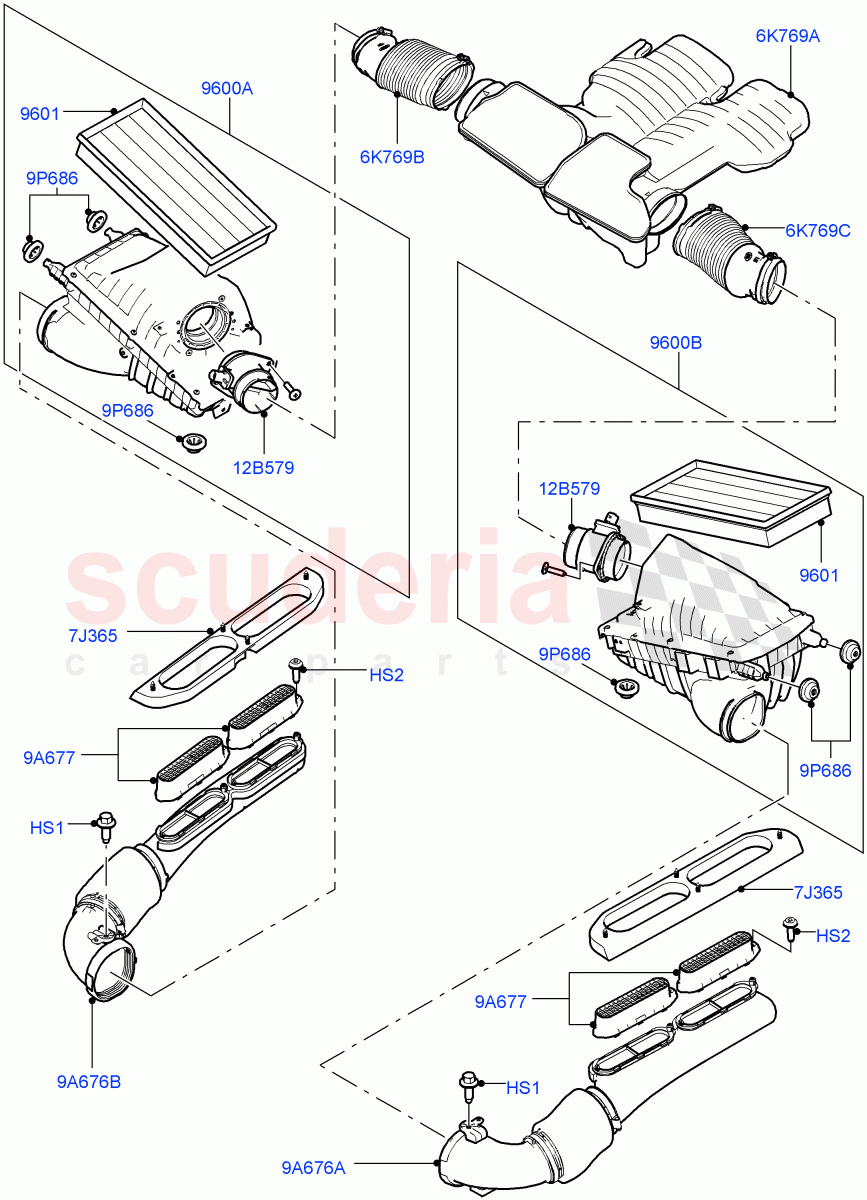

Air Cleaner (5.0L OHC SGDI NA V8 Petrol - AJ133) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.59 4
HS2 LR008793
SCREW
M5 X 16MM, Torx 		$0.95 4
6K769A LR023451
DUCT - AIR
Air Cleaner To Throttle Body, Centre 		$222.04 1
6K769B LR036445
DUCT - AIR
RH, Air Cleaner To Throttle Body 		$51.89 1
6K769C LR036446
DUCT - AIR
LH, Air Cleaner To Throttle Body 		$51.89 1
7J365 LR111065
GUIDE - DIRTY AIR DUCT
Dirty Air Duct, Mounted To Hood 		$22.52 2
9A676A LR036447
DUCT - DIRTY AIR
LH / To: DA104444 		$181.44 1
9A676A LR045407
DUCT - DIRTY AIR
LH / From: DA104445 / To: EA133086 		$164.93 1
9A676A LR049314
MOULDING - SNOW INGRESS PROTECTOR
LH / From: EA133087 / To: HA364606 		$166.61 1
9A676B LR036451
DUCT - DIRTY AIR
RH / To: DA104444 		$181.44 1
9A676B LR045408
DUCT - DIRTY AIR
RH / From: DA104445 / To: EA133086 		$157.77 1
9A676B LR049313
DUCT - DIRTY AIR
RH / From: EA133087 		$181.44 1
9A677 LR036450
GRILLE - DIRTY AIR DUCT
To: HA999999 		$10.94 4
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown
IN STOCK 		$4.74 6
12B579 LR035726
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor 		$372.81 2
9600A LR036428
CLEANER - AIR
RH / To: HA347809 		$405.86 1
9600A LR095789
CLEANER - AIR
RH / From: HA347810 		$442.43 1
9600B LR036431
CLEANER - AIR
LH / To: HA347809 		$481.53 1
9600B LR095791
CLEANER - AIR
LH / From: HA347810 		$420.21 1
9601 LR161843
FILTER - AIR CLEANER
IN STOCK 		$59.29 2
